An Analysis on the Principle of CVE-2015-8651

An Analysis on the Principle of CVE-2015-8651

Antiy PTA Team

0x00 Preface




On December 28, 2015, Adobe issued a security announcement that they have repaired 19 vulnerabilities in one breath. The vulnerability CVE-2015-8651 submitted by Huawei security research department was mentioned in the acknowledgement section, but deleted very quickly and aroused speculations. Later, the domestic threat intelligence vendor Threatbook published an analysis report of foreign “DarkHotel” group targeting top executives in China with APT attacks. According to the sample hashes provided by Threatbook, Antiy PTA team has extracted relevant samples from the sample library and analyzed the principle of the integer overflow vulnerability.

0x02 Related knowledge




In 2012, the features of domain memory were introduced in Adobe Flash player, allowing quick access memory. The functions related to domain memory have been defined at package avm2.intrinsics.memory, see below:

    package avm2.intrinsics.memory
{
public function li8(addr:int): int; // Load Int 8-bit
public function li16(addr:int): int; // Load Int 16-bit
public function li32(addr:int): int; // Load Int 32-bit
public function lf32(addr:int): Number; // Load Float 32-bit (a.k.a. “float”)
public function lf64(addr:int): Number; // Load Float 64-bit (a.k.a. “double”)
public function si8(value:int, addr:int): void; // Store Int 8-bit
public function si16(value:int, addr:int): void; // Store Int 16-bit
public function si32(value:int, addr:int): void; // Store Int 32-bit
public function sf32(value:Number, addr:int): void; // Store Float 32-bit (a.k.a. “float”)
public function sf64(value:Number, addr:int): void; // Store Float 64-bit (a.k.a. “double”)
public function sxi1(value:int): int; // Sign eXtend 1-bit integer to 32 bits
public function sxi8(value:int): int; // Sign eXtend 8-bit integer to 32 bits
public function sxi16(value:int): int; // Sign eXtend 16-bit integer to 32 bits
}

The sample code is shown below:

var domainMemory:ByteArray = new ByteArray();
var BYTE_ARRAY_SIZE:Number = 0x10000000;
domainMemory.length = BYTE_ARRAY_SIZE;
ApplicationDomain.currentDomain.domainMemory = domainMemory;
var index:* = 0;
var val:* = 0x200;
for(i=0; i< BYTE_ARRAY_SIZE; i++)
{
si8(val, i);
}

According to the official test report, the memory access speed of domain memory is very fast.  ApplicationDomain.currentDomain.domainMemory here is a global variable which is directly accessed by the function li*/si*. After introduced, there are a lot of problems, typically such as vulnerabilities numbered CVE-2013-5330 and CVE-2014-0497, which are caused by imprecise boundary checks of opcode related to domain memory.

0x03 Cause analysis




By using JPEXS Free Flash Decompiler to open the sample, we can see the corresponding script below:

001

After analyzed, the overflow code is in Bymitis. Bymitis can judge if the current running is in IE during initialization, if not, it exits. Then, the edition of Flash player is determined to execute the corresponding code. As the analysis edition of Flash Player is 13.0.0.128, it enters the function cidkedie to execute; the portion of the code is as follows:

002

It seems that the result of JPEXS Free Flash Decompiler decompilation is inconsistent with that of the dynamic debugging, and after analysis and comparison, it is found that the following AS disassembling code is suspicious:

003

This piece of code can be written as:

op_si32(0x3FFFFFFF,loc_2+0x7FFFFFFC)

Relevant loc_2 code:

004

Here it can be considered that loc_2 is equal to 0x80001004; so far, it can be construed as writing the value 0x3FFFFFFF into the location at 0x80001004+0x7FFFFFFC of domain memory. You can see from the code of cidkedie that domain memory points to a ByteArray array called fastmemory with the length of 0x1000. In the array, the first few bytes are filled with m3mory, and followed by a count that refers to the number of the function calls. With the heap-spraying technology, the function is called repeatedly to guarantee the specific memory accesses.

                  JIT code generated by the above AS script is as follows:

0612B480    B8 C6352F09     mov eax,0x92F35C6

0612B485    35 39CAD036     xor eax,0x36D0CA39

0612B48A    8B75 90         mov esi,dword ptr ss:[ebp-0x70]

0612B48D    8B5F 14         mov ebx,dword ptr ds:[edi+0x14]

0612B490    8B4F 18         mov ecx,dword ptr ds:[edi+0x18]

0612B493    8DBE 00F0FF7F   lea edi,dword ptr ds:[esi+0x7FFFF000]

0612B499    83E9 04         sub ecx,0x4

0612B49C    3BF9            cmp edi,ecx

0612B49E    0F87 230D0000    ja 0612C1C7

0612B4A4    03DE            add ebx,esi

0612B4A6    B9 FCFFFF7F      mov ecx,0x7FFFFFFC

0612B4AB    89040B          mov dword ptr ds:[ebx+ecx],eax

0612B4AE    B8 00F0FF7F     mov eax,0x7FFFF000

0612B4B3    8B1C03          mov ebx,dword ptr ds:[ebx+eax]

0612B4B6    B8 419CE424     mov eax,0x24E49C41

0612B4BB    35 39CAD036     xor eax,0x36D0CA39

0612B4C0    3BD8            cmp ebx,eax

0612B4C2    75 00           jnz X0612B4C4



The key part has been marked in read and relevant commands are explained below:

(1)

0612B480    B8 C6352F09     mov eax,0x92F35C6

0612B485    35 39CAD036     xor eax,0x36D0CA39

After two commands finished, eax=0x3FFFFFFF

(2)

mov esi,dword ptr ss:[ebp-0x70]

After the command finished, ESi=0x80001004.

(3)

0612B48D    8B5F 14         mov ebx,dword ptr ds:[edi+0x14]

0612B490    8B4F 18         mov ecx,dword ptr ds:[edi+0x18]

After two commands finished, ebx is the memory address with the size of 0x1000 directed by ApplicationDomain.currentDomain.domainMemory.

(4)

0612B4A4    03DE            add ebx,esi

0612B4A6    B9 FCFFFF7F      mov ecx,0x7FFFFFFC

0612B4AB    89040B          mov dword ptr ds:[ebx+ecx],eax

This piece of code can be descripted as:

*((DWORD*)(domainMemory+0x80001004+0x7FFFFFFC))= 0x3FFFFFFF

Obviously, the integer overflow is 0x1000 for 0x80001004+0x7FFFFFFC. The value is written outside the memory area of domainMemory. Next, regarding to the common techniques of flash vulnerabilities, the relevant code is as follows:

       _loc7_ = 0;

  while(_loc7_ < 1280)

{

vc[_loc7_] = new <uint>[305419896];

vc[_loc7_].length = 1022;

_loc7_++;

}

1280 uint objects have been created, and their length is changed to 1022. The first DWORD value of each uint object memory is 1022, and if the memory of uint object is just following that of domainMemory, you can modify the value, then access arbitrary memories, and next create objects in the accessed memory to find the virtual function table of the object, modify the function pointer and execute shellcode.

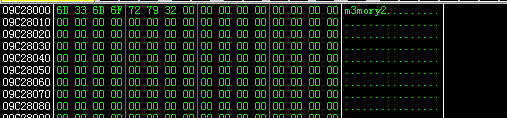

In this analysis, it is found that domainMemory is followed by a uint object after cidkedie is called twice. The memory of domainMemory is as follows:

005

The memory at 0x1000 upward from 0x9c28000:

006

The first value is 0x03FE (1022) and the third is 0x12345678 (305419896), which obviously are the uint objects created according to the above. After the vulnerability triggered, the memory is as follows:

007

After comparison, it finds the length of uint object is replaced as 0x3FFFFFFF, and at this moment, the memory size of uint object becomes very large, so you can access arbitrary memories.

0x04 Summary




CVE-2015-8651 is an integer overflow vulnerability, which is caused by the imprecise judgment to the range of access addresses during the relevant executions of opcode to domain memory, and its principle is similar with CVE-2013-5330 and CVE-2014-0497. Finally thanks a lot for the sample hashes from Threatbook, Antiy PTA team can complete the analysis report.

Appendix I: References




  • 境外“暗黑客栈”组织对国内企业高管发起APT攻击

http://drops.wooyun.org/tips/11726

  • 深入剖析某国外组织针对中国企业的APT攻击(CVE-2015-8651)

http://drops.wooyun.org/papers/12184

UBIQUITOUS FLASH, UBIQUITOUS EXPLOITS, UBIQUITOUS MITIGATION

https://www.virusbtn.com/pdf/conference/vb2014/VB2014-FengFlorio.pdf
