1.Introduction

As cyberattack techniques continue to evolve, malicious code loaders have gradually become a key component of malicious code execution. Such loaders are malicious tools used to load various malicious codes into infected systems. They are usually responsible for bypassing system security protections, injecting malicious codes into memory and executing them, laying the foundation for the subsequent deployment of Trojan-type malicious codes. The core functions of loaders include persistence mechanisms, fileless memory execution, and multi-level evasion techniques.

Antiy CERT will compile the information about typical malicious loader families that have been tracked and stored in recent years into a special report, which will be released in sequence in the next few months, and will continue to track new popular loader families. This project will focus on the technical details of the loader and deeply explore its core functions in the attack chain, including its obfuscation technology, encryption mechanism, and injection strategy. In addition, we will continue to improve our own security product capabilities, adopt effective technical solutions to further improve the recognition rate and accuracy of loaders, and help user organizations discover and prevent potential threats in advance.

2.Overview

DBatLoader was first discovered in 2020 and is mainly used to deliver a variety of malicious code families including Snake Keylogger, Formbook, and Agent Tesla. The loading process of DBatLoader is divided into two stages, the first of which is mainly used to evade the detection of anti-virus engines and decrypt and run the second-stage payload in memory. In the second stage, DBatLoader uses the “DDR” (Dead Drop Resolvers) technology to download and decrypt the malicious code family to be delivered from the public code hosting website, and then injects it into other programs through various methods to achieve covert operation.

DBatLoader evades detection by anti-virus engines by constantly updating its survival skills. It makes extensive use of obfuscation technology to conceal the program from two dimensions: encryption and hidden features. DBatLoader uses XOR encryption and shift encryption to encrypt strings and payloads at different stages. In order to improve concealment , the loader also uses image steganography and inserts useless strings in the code to hide the characteristics of malicious code. In addition, DBatLoader will also add files with specified extensions to the Windows Defender whitelist to evade detection and kill in order to carry out subsequent attacks.

For more information about this loader, see Antiy Virus Encyclopedia ^{[ 1 ]} .

Figure 2 ‑1 Long press to identify the QR code to view the detailed information of DBatLoader

3.DBatLoader Survival Technology Example Analysis

In order to evade and bypass security detection, DBatLoader uses a variety of survival techniques, including obfuscation, injection, privilege escalation , persistence, and anti-debugging.

3.1 Obfuscation Technology Analysis

In order to reduce file features and hinder analysts’ reverse analysis, DBatLoader uses a variety of file obfuscation techniques, including the following: interspersing useless instructions, image steganography, script string splicing, multi-layer payload encryption, removal of file magic headers, string encryption, and dynamic loading functions.

3.1.1 Insert Useless Instructions

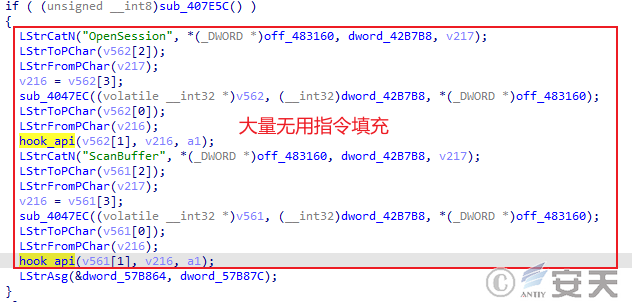

There are a lot of repeated attempts to hook in each stage of DBatLoader payload. AMSI ( Antimalware Scan Interface ) codes disperse the original program execution process, which increases the difficulty of reverse analysis and reduces the binary features brought by the program execution process itself.

Figure 3‑1 DBatLoader fills the program with a large number of repeated instructions

3.1.2 Using Image Steganography

DBatLoader uses image steganography to write malicious payload information into an image, making it look like an ordinary image from a computer’s perspective, thereby hiding the target payload. When the target payload needs to be obtained, the loader reads the image through a specific algorithm to restore the information.

Figure 3 ‑2 DBatLoader steganographic payload image

3.1.3 Script String Concatenation

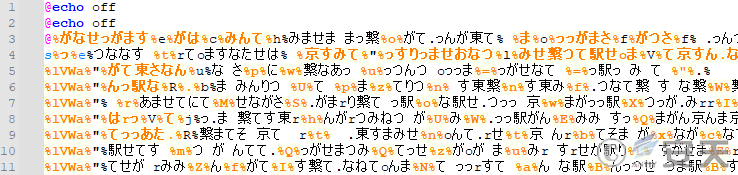

DBatLoader splits the bat script instructions and inserts useless variables in them, and restores them by splicing variables at runtime to reduce file characteristics and interfere with reverse engineering analysis.

Figure 3 ‑3 DBatLoader obfuscated bat script

3.1.4 Multi-layered Encrypted Payload

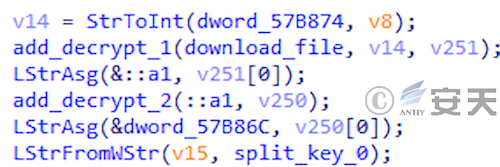

DBatLoader encrypts the payload through multiple layers to remove payload features and increase the difficulty of reversing.

Figure 3 ‑4 DBatLoader encryption function

3.1.5 Destroy File Features

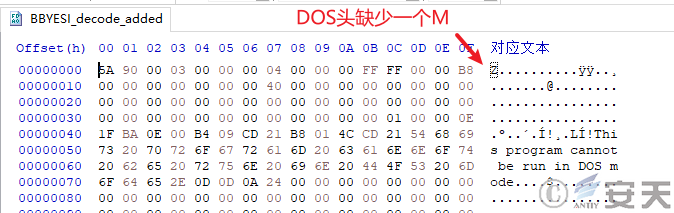

DBatLoader intentionally removes a byte from the encrypted payload to destroy the file characteristics of the payload after decryption. The removed byte is restored by the loader at runtime to avoid detection after the payload is decrypted.

Figure 3 ‑5 The first stage decrypted payload of DBatLoader

3.1.6 Encrypted String

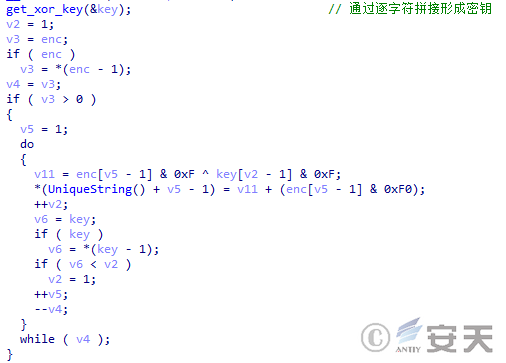

DBatLoader encrypts some strings (such as the injected program name, auto-start registry path, etc.) to prevent the strings from being identified and detected as features.

Figure 3 ‑6 DBatLoader string encryption algorithm

3.1.7 Dynamic Function Loading

DBatLoader loads functions dynamically by calling GetProcAddress to prevent file features brought about by importing functions.

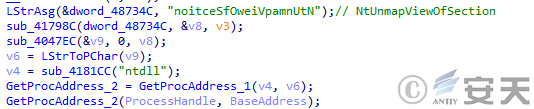

Figure 3 ‑7 DBatLoader dynamic loading function

3.2 Injection Technical Analysis

DBatLoader provides three injection methods, namely thread injection, APC injection and process hollowing, and will eventually select the injection method based on the payload configuration file.

The APIs called are shown in Table 3.1. During the injection process, DBatLoader tries to use the export functions of ntdll.dll instead of directly using the export functions of kernel32.dll to reduce the length of the call chain and the possibility of being hooked.

Table 3‑1 APIs used in theDBatLoader loader injection process

Create process	CreateProcessAsUserW	WinExec
Modify memory	NtOpenProcess	NtUnmapViewOfSection	ZwAllocateVirtualMemory
NtReadVirtualMemory	WriteVirtualMemory	RtlMoveMemory
Execute payload	NtCreateThreadEx	NtQueueApcThread	GetThreadContext
SetThreadContext	ResumeThread

3.3 Privilege Escalation Technical Analysis

In order to bypass UAC and achieve privilege escalation, DBatLoader needs to execute the program in a trusted directory and the program needs to have a valid digital signature.

In order to execute in a trusted directory, DBatLoader uses a simulated trusted directory technique, which creates a new directory with a space between it and the trusted directory, but can trick UAC into thinking that the program is running in a trusted directory.

Figure 3 ‑8 Trusted directory simulated by DBatLoader

DBatLoader then uses an executable file that is vulnerable to DLL hijacking. The program has a legitimate digital signature and can automatically elevate privileges, but it will prioritize loading DLLs in the same directory. DBatLoader bypasses the UAC restrictions in this black-and-white way to elevate privileges.

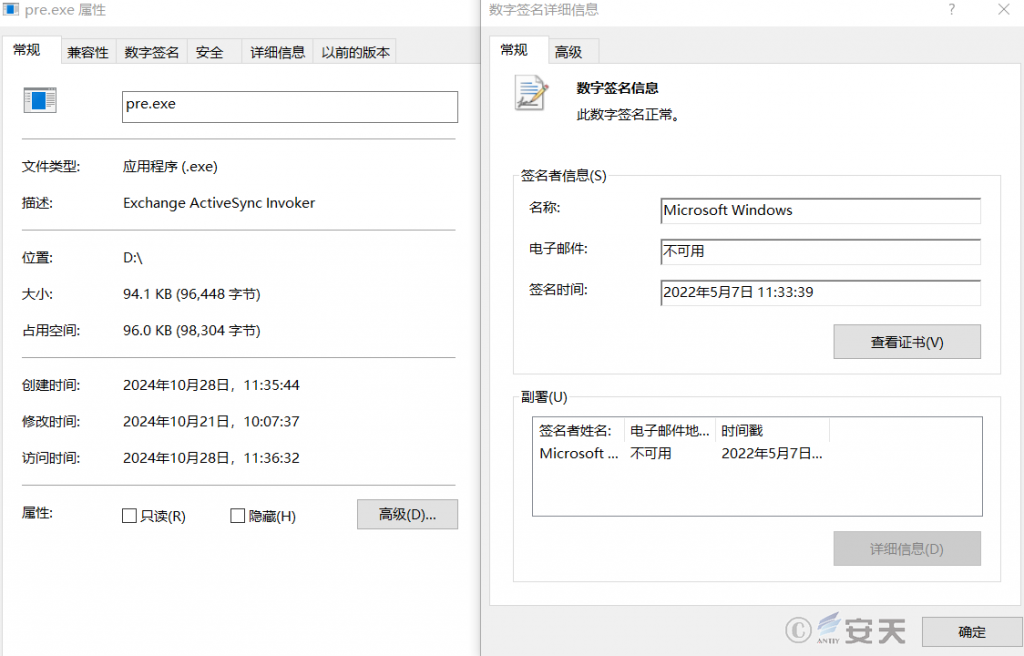

Figure 3 ‑9 DBatLoader for white and black white file

3.4 Persistence Technical Analysis

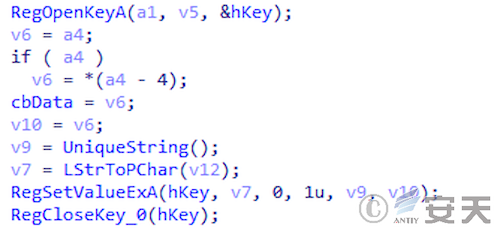

DBatLoader achieves persistence by writing to the registry key HKEY_CURRENT_USER \ SOFTWARE\Microsoft\Windows\CurrentVersion\Run.

Figure 3 ‑10 DBatLoader writes to the registry

3.5 Anti-Debugging Technology Analysis

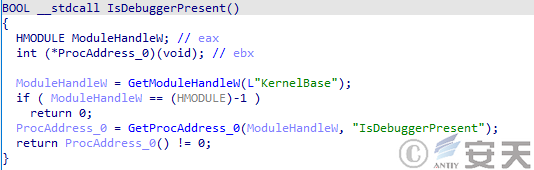

DBatLoader will detect the presence of a debugger through IsDebuggerPresent and CheckRemoteDebuggerPresent in the second stage.

Figure 3 ‑11 DBatLoader detects whether there is a debugger through Is DebuggerPresent

4.Attack Process

DBatLoader is mainly spread through phishing emails. Attackers send phishing emails to induce victims to run the malicious program loader in the email attachment. When the loader runs, it will first read the image containing the second-stage payload from its own resource file, decrypt it through image steganography, and run the second stage of DBatLoader. In the second stage, the loader will download the encrypted configuration file from a public file hosting website. After that, DBatLoader will persist according to the configuration file and tamper with the Windows Defender whitelist. Finally, DBatLoader will decrypt the malicious code family to be delivered from the configuration file and run it by injection.

Figure 4‑1 DBatLoader attack process

5.Sample Analysis

5.1 Sample Label

Table 5‑1 Binary executable files

Virus name	Trojan/Win32.DBatLoader
Original file name	Crane Motor Specification,Docx.exe
MD5	23434BF113A4651076ECD2898A6C1069
Processor architecture	Intel 386 or later processors and compatible processors
File size	1.15 MB (1,209,856 bytes )
File format	BinExecute /Microsoft.EXE[:X86]
Timestamp	1992-06-19 22:22:17 ( Delphi program default timestamp )
Digital signature	none
Packer type	none
Compiled language	Borland Delphi ( 2006)
VT first upload time	2024-10-14 04:26:54
VT test results	52 /73

5.2 DBatLoader First Stage

In the first stage of DBatLoader, there are a lot of codes that hijack the AMSI API functions to evade scanning by anti-virus engines. However, this part of the code has defects and this function is not implemented.

Figure 5 ‑1 The flawed hook API implementation of DBatLoader

DBatLoader uses multiple layers of encryption for the next stage payload. The loader first loads the image containing the next stage payload from the resource file and reads the encrypted payload through image steganography.

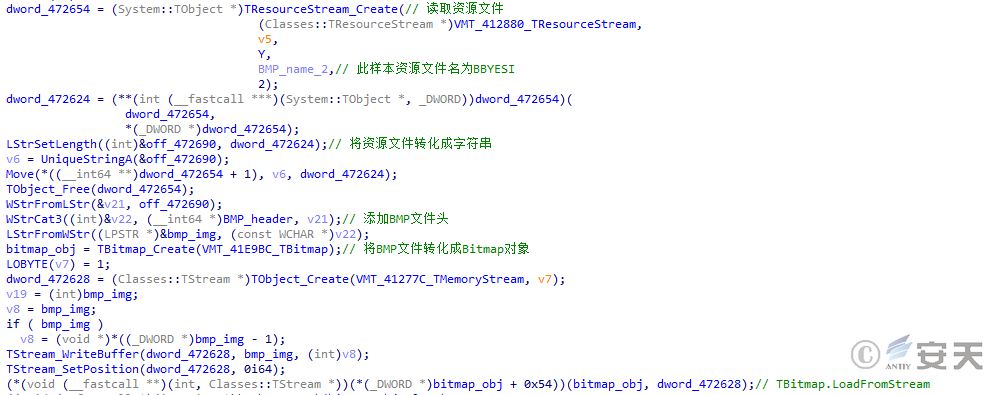

Figure 5 ‑2 DBatLoader reads resource files

DBatLoader reads bytes from the image line by line in the order of blue, green and red to obtain the steganographic information. The number of bits occupied by the image steganography is recorded in the first 3 bytes read. The loader then reads 32 bits of information through steganography to obtain the total number of bytes of the encrypted payload. After that, the loader will continue to read information from the image until the entire encrypted payload is obtained.

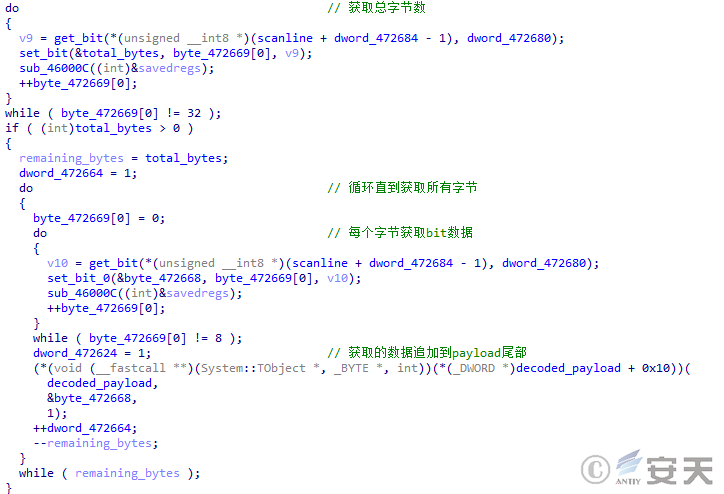

Figure 5 ‑3 DBatLoader reads the steganographic image

DBatLoader then adds 0x80 to the second-stage payload byte by byte and adds a character “M” to the payload header to decrypt the second-stage payload.

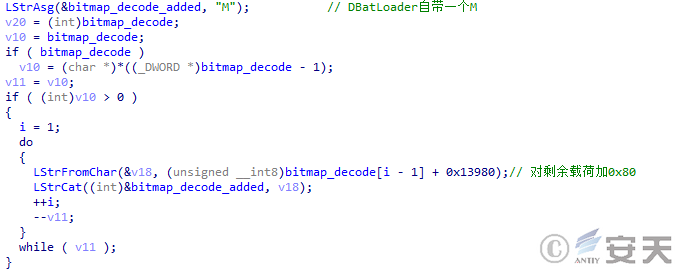

Figure 5 ‑4 DBatLoader decrypts the second stage payload

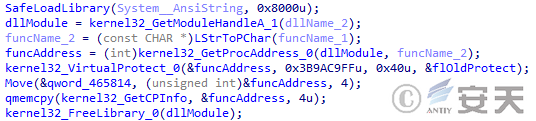

Finally, DBatLoader maps the second stage payload into memory and calls the entry point to enter the second stage.

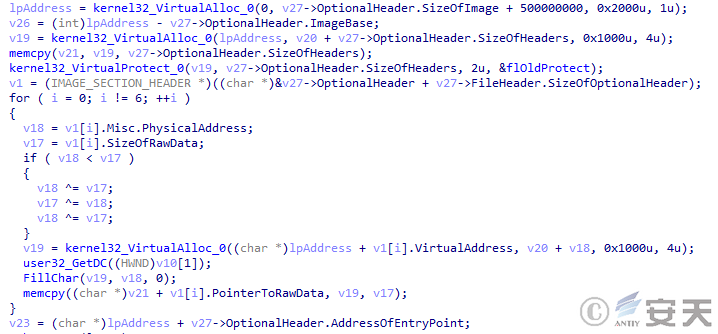

Figure 5 ‑5 DBatLoader loading the second stage payload

5.3 DBatLoader Second Stage

The second stage of DBatLoader triggers the second stage malicious logic by setting a timer in the main function logic.

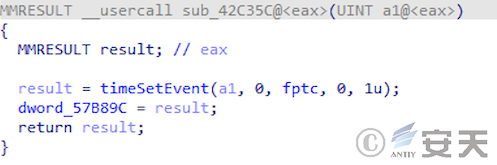

Figure 5 ‑6 DBatLoader sets the timer

The second stage of DBatLoader has the same anti-virus engine evasion logic as the first stage, but the function is not implemented due to design flaws.

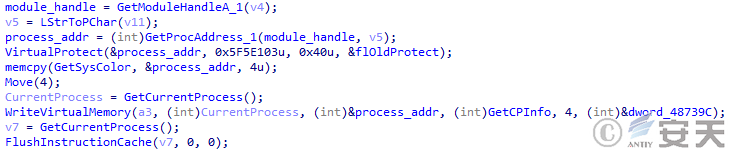

Figure 5 ‑7 The second stage of evading anti-virus engine logic

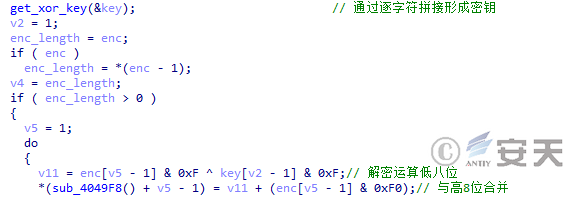

In the second stage of DBatLoader, some strings are encrypted by an XOR algorithm. When the string needs to be decrypted, the loader will first concatenate the characters one by one to form an XOR key, and then the loader will XOR the lower 8 bits of the encrypted string with the lower 8 bits of the key byte by byte to obtain the plaintext string.

Figure 5 ‑8 DBatLoader decryption string algorithm

In the second stage of DBatLoader, the program will store the download address of the payload to be delivered in the first stage payload. In the second stage, DBatLoader will search for a specific string in the first stage payload file to locate the encrypted configuration.

Figure 5 ‑9 DBatLoader obtains encrypted configuration

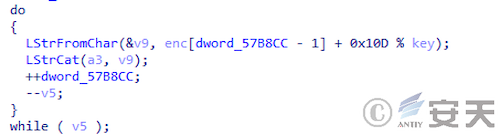

After obtaining the encrypted configuration, DBatLoader will use an integer in the configuration as a decryption key to decrypt the encrypted string to obtain the download address of the target payload.

Figure 5 ‑10 DBatLoader decryption payload download address algorithm

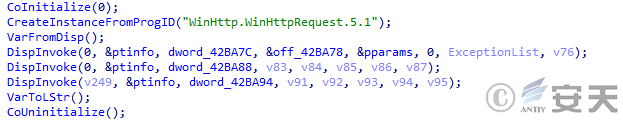

DBatLoader will then download the delivered payload through the WinHttpRequest object.

Figure 5 ‑11 DBatLoader downloads the payload

When DBatLoader downloads the payload, the program will base 64 decode it and add the offset multiple times to decrypt the payload.

Figure 5 ‑12 DBatLoader decrypts the downloaded payload

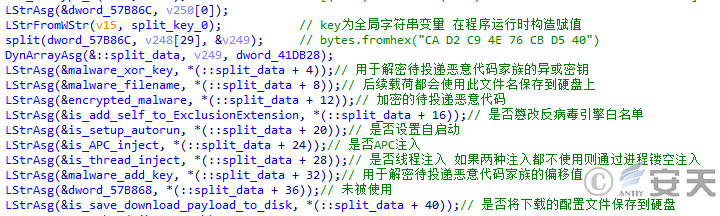

DBatLoader then splits the payload through a specific string to obtain the payload configuration file. After the loader decrypts the configuration file, it will choose whether to tamper with the anti-virus engine strategy, persistence, thread injection, APC injection, process hollowing, etc. according to the configuration file.

Figure 5 ‑13 DBatLoader reads the configuration file

5.3.1 DBatLoader Tampering with Windows Defender Whitelist

Windows Defender whitelist tampering function is enabled in the configuration file, the loader will add specific file extensions to the whitelist through its own code and the released bat script.

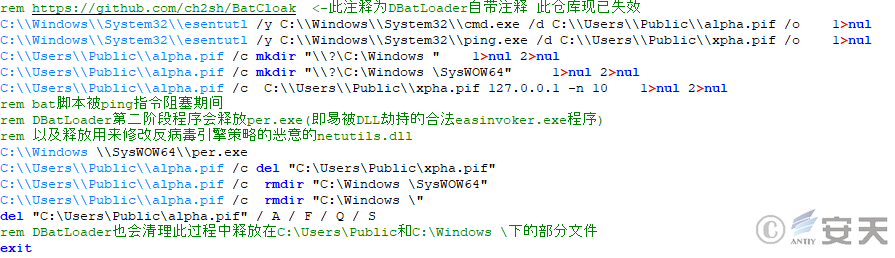

Figure 5 ‑14 Deobfuscated script for modifying Windows Defender policy

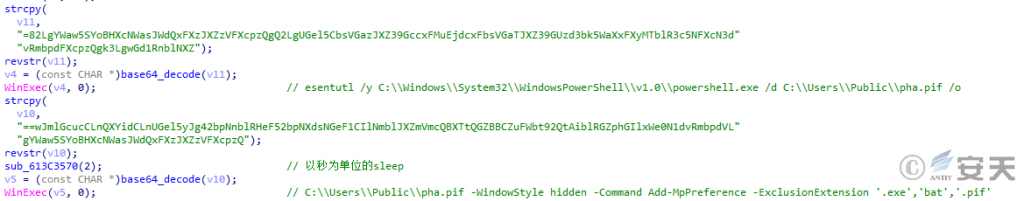

DBatLoader creates a C:\Windows\SysWOW64 directory with an extra space in the path to simulate a trusted directory, and then releases a legitimate easinvoker.exe that has automatic privilege escalation capabilities and is easily hijacked by DLLs to escalate privileges. Finally, the loader releases a malicious netutils.dll that will be loaded by easinvoker.exe, which will add exe, bat, and p if programs to the Windows Defender whitelist.

Figure 5 ‑15 The core payload in netutils.dll for adding file extension whitelists

5.3.2 DBatLoader Achieves Persistence by Setting Auto-Startup Items

When the persistence function is enabled, DBatLoader copies itself to C:\Users\Public\Libraries\malware_filename. PIF with the file name malware_filename in the configuration file, creates the file malware_filename.url under C:\Users\Public\, and adds it to the registry under HKEY_CURRENT_USER\SOFTWARE\Microsoft\Windows\CurrentVersion\Run to implement the self-start function.

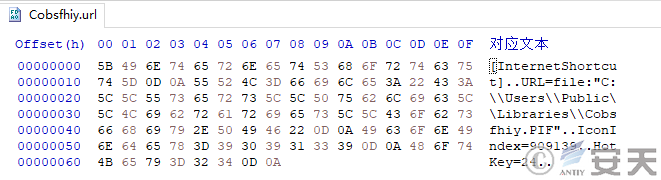

Figure 5 ‑16 DBatLoader creates a persistent .url file

If the save configuration file function is enabled, DBatLoader will also save the downloaded undecrypted configuration file with the file name malware_filename to C:\Users\Public\Libraries\ for subsequent use.

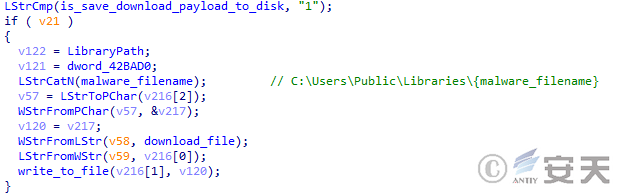

Figure 5 ‑17 DBatLoader saves the downloaded configuration file

5.3.3         DBatLoader Executes the Target Payload

DBatLoader will try to find out whether SndVol.exe exists in the system. If it does not exist, it will inject the program into iexpress.exe .

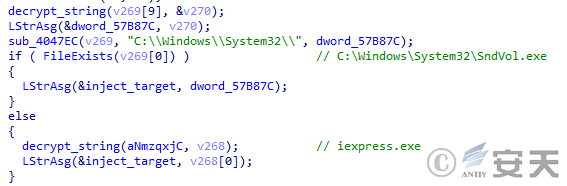

Figure 5 ‑18 DBatLoader selects the injected program

DBatLoader will then decrypt the target payload in the configuration file at multiple layers to obtain the real malicious payload.

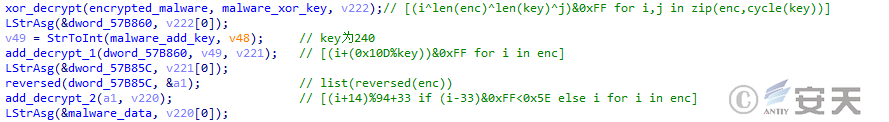

Figure 5 ‑19 DBatLoader encryption algorithm for malicious payloads

After that, DBatLoader will select the program injection method according to the configuration file. If the APC injection function is enabled, DBatLoader will inject it into the target process through APC injection.

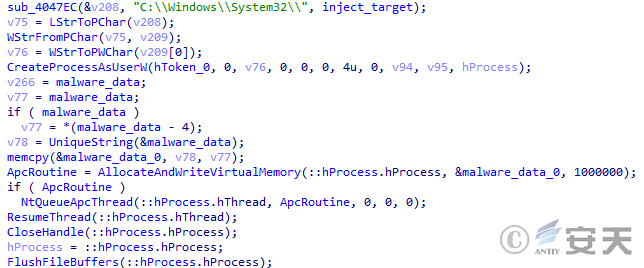

Figure 5 ‑20 DBatLoader executes malicious code through APC injection

If the thread injection function is enabled, DBatLoader injects the payload into the target process through thread injection.

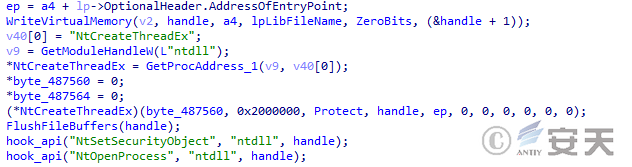

Figure 5 ‑21 DBatLoader executes malicious code through thread injection

If neither APC injection nor thread injection is enabled, DBatLoader injects the payload into the target process through process hollowing.

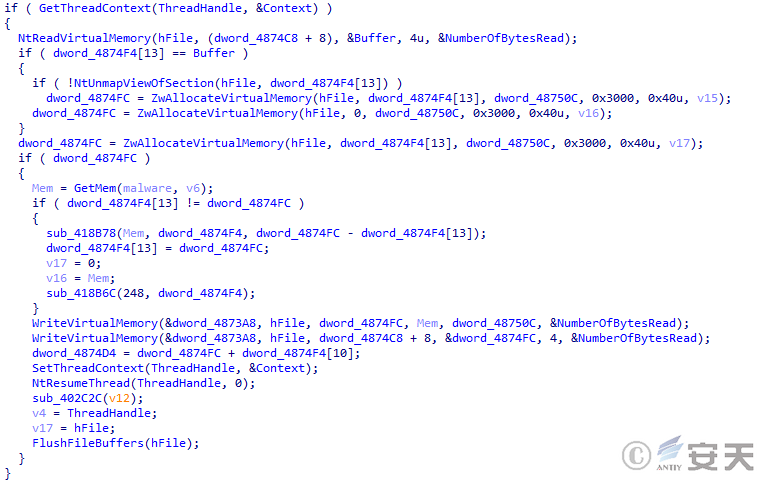

Figure 5 ‑22 DBatLoader executes malicious code through process hollowing

Through decryption analysis, it was finally determined that the target payload was Snake Keylogger. This family of keyloggers has been analyzed in detail in a previously released analysis report ^[1] . It is not appropriate to go into details here. Interested readers can go and read it.

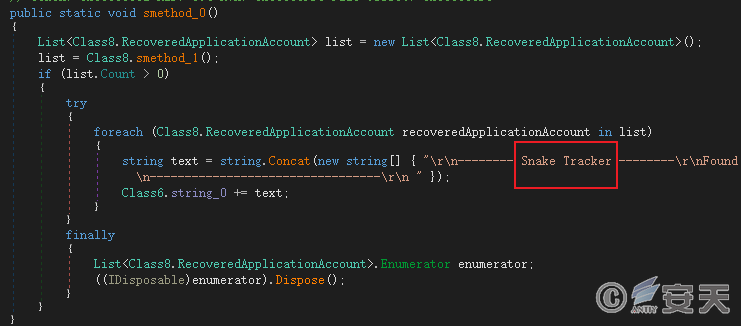

Figure 5 ‑23 The final payload delivered by DBatLoader

6.IoC​

IoCs​

23434BF113A4651076ECD2898A6C1069

5D707EF2DB982821B0246CE6AA1300C1

6D23FE871B2064C6D13580A5745F23CB

CE875D76D02C456326D6381881281667

7.Mapping of Samples to ATT&CK

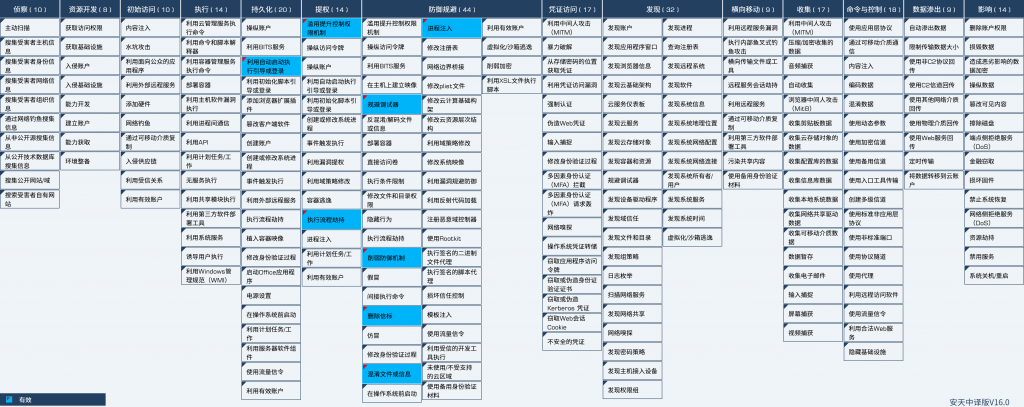

Figure 7 ‑1 Mapping of technical features to ATT&CK

Specific ATT&CK technical behavior description table:

Table 7‑1 ATT&CK technical behavior description table

ATT&CK Stage/Category	Specific Behavior	Notes
Persistence	Booting or logging in with autostart	Achieve persistence by adding a registry autostart entry
Privilege escalation	Abuse of the control privilege escalation mechanism	Escalate privileges by simulating a trusted directory
Execute process hijacking	In the process of escalating privileges, the execution process of easinvoker.exe is hijacked
Defense evasion	Avoiding debuggers	The second stage detects the debugger through IsDebuggerPresent and CheckRemoteDebuggerPresent
Weakened defense mechanisms	Add some file extensions to Windows Defender whitelist
Delete beacon	After the privilege escalation is completed, the files used for privilege escalation will be cleaned up
Obfuscate files or information	Encrypt the second stage payload via image steganography
Use a variety of classical encryption algorithms to encrypt payloads
Some strings are encrypted using the algorithm
Dynamic parsing API
A large number of useless characters are used to confuse the privilege escalation script
Process injection	Deliver the target payload via DLL injection, APC injection, or process hollowing

8.Recommendations for Protection

In response to such threats, Antiy recommends that enterprises enhance the security awareness of business personnel to reduce the possibility of attacks on the organization. Enterprise employees should pay attention to the use of emails on a daily basis and avoid running email attachments from unknown sources or accessing suspicious network links in emails.

In addition, as the cornerstone of security protection, it is recommended that enterprises deploy enterprise-level terminal security protection systems on office computers, servers and other nodes. For terminal devices, Antiy can provide enterprise users with Antiy IEP terminal defense system, which provides terminals with multiple capabilities such as virus detection, active defense, ransomware protection, host management and control, and network protection to effectively defend against various threats.

8.1 IEP Helps Users Defend Against Loader Threats

After testing, Antiy Intelligent Endpoint Protection System product series (hereinafter referred to as “IEP” ) can effectively detect and defend against the virus samples discovered this time by relying on Antiy’s self-developed threat detection engine and kernel-level active defense capabilities.

IEP can monitor the local disk in real time and automatically detect viruses on newly added files. In response to this threat, when the user stores DBatLoader locally by receiving email attachments, WeChat transmission , network downloads, etc., IEP will immediately warn of the virus and remove malicious files to prevent users from launching files and causing attacks on the terminal.

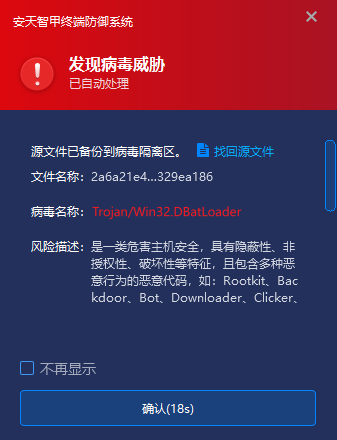

Figure 8 ‑1 When a virus is found, IEP captures it and sends an alert immediately

IEP also provides users with a unified management platform, through which administrators can centrally view the details of threat events within the network and handle them in batches, thereby improving the efficiency of terminal security operation and maintenance.

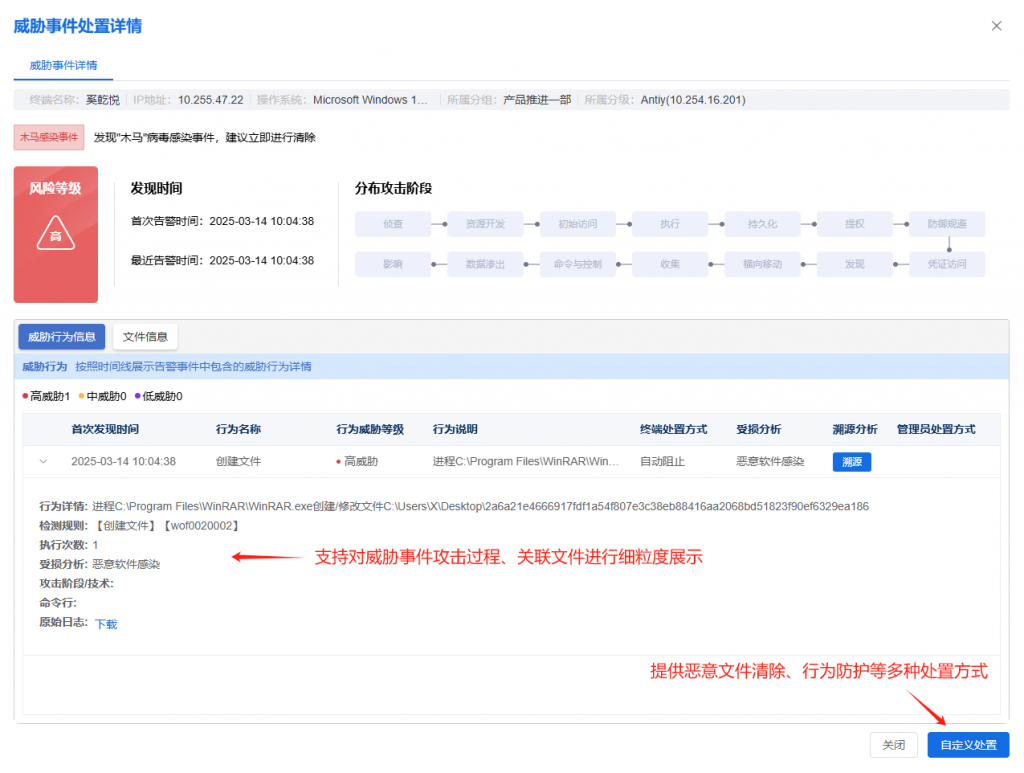

Figure 8 ‑2 IEP Management Center helps administrators achieve efficient terminal security management

9.Antiy LanDi VILLM

Antiy LanDi VILLM can automatically analyze samples. The analysis content is as follows:

According to the draft national standard, the threat classification is Trojan.Win32.Bandan. The YARA rules generated by automatic feature extraction are as follows:

rule Trojan.Win 32. Bandan: Trojan

{

meta:

description = ” This is a YARA rule generated by the VILLM V2 model. It is used to detect Trojan.Win32.Bandan.”

strings:

$a = {FF FF FF FF 01 00 00 00 ?? 00}

condition:

#a > 100

}

Antiy LanDi VILLM is the first threat detection generative algorithm in China that has been registered with the Cyberspace Administration of China. The model is trained based on the massive sample feature engineering data accumulated by Antiy Cyber Super Brain for more than 20 years. The training data includes file identification information, judgment information, attribute information, structure information, behavior information, host environment information, data information, etc. It supports threat judgment and output of detailed knowledge understanding of vector features in different scenarios, forming a multi-modal detection method for different application needs and scenarios, improving the background hidden threat judgment ability, and further empowering security operations.

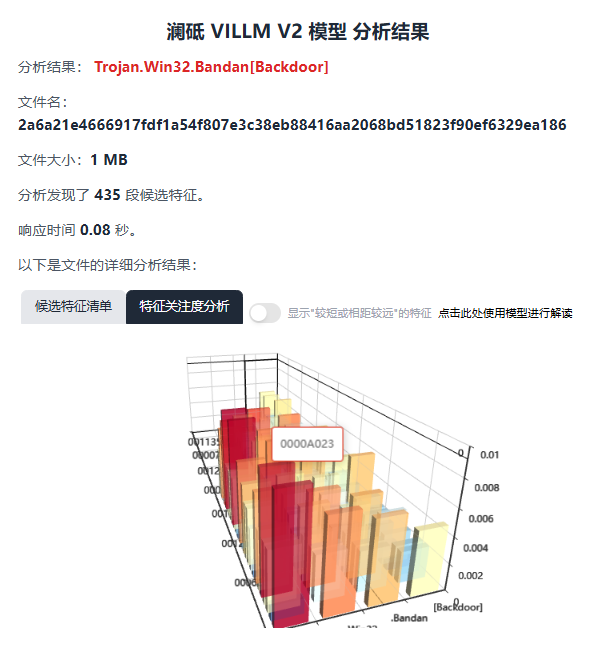

Figure 9 ‑1 Analysis results of Antiy LanDi VILLM
