1.Overview

In the second half of 2024, Antiy Emergency Response Center tracked APT attacks by Green Spots against specific industry targets in our country. The attacker sends a spear-phishing email to the official account of the target unit, guides the target to visit a malicious website disguised as a certain unit by clicking a link, and the website takes the initiative to jump and download. The victim is induced to save and execute a downloader program disguised as a PDF icon, which retrieves and decrypts a malicious payload disguised as a video suffix running in memory. Up to now, the main malicious loads observed are open source command and control frameworks such as Sliver remote control Trojan [2], in which attackers carry out long-term host control, network lateral movement and theft activities on targets. According to the technical characteristics of the target area and phishing process of the attack, and based on historical analysis data and information and open source intelligence, Antiy CERT comprehensively judges that the source of the attack activity is the “Green Spots” attack organization of Taiwan Province of China. In September 2018, Antiy had once released the group’s cyberattack activity report, “Operation’Green Spots’ – Attacks That Continue for Years,” exposing the group’s campaign, which began in 2007.

Based on the fact that Antiy has assisted relevant industry management departments in effectively notifying and handling relevant incidents, Antiy decided to publish the analysis results of the attack incident. Based on the fact that Antiy has assisted relevant industry management departments in effectively notifying and disposing of relevant events in the second half of last year, Antiy CERT has decided to officially publish this report. The characteristics of relevant attack activities are as follows:

Table 1-1 Characteristics of Green Spot Attack Activity

Attack time	March 2024 (start of attack preparation)
Attack the target	Specific industries and fields in China
Intent to attack	Constant control, stealthiness
Bait type	An EXE executable disguised as a PDF
Method of attack	Spear phishing mail, document icon camouflage, open source remote control
Development language	C # language, Go language
Weaponry and equipment	Open source remote control Sliver

2.Analysis of attack activities

2.1 Analysis of malicious websites

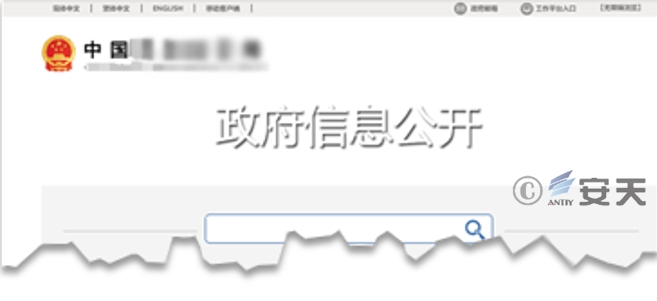

The attacker induces the target to visit the malicious website by email, which is disguised as the government information disclosure webpage of a certain authority:

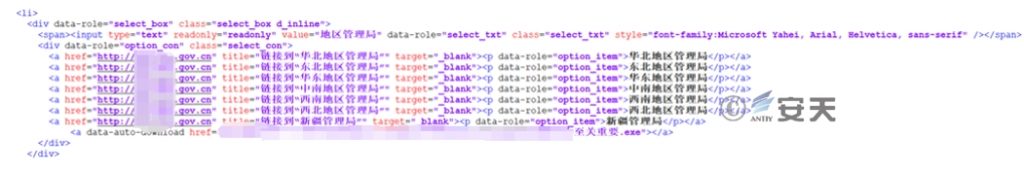

When the web page is loaded, it will automatically jump to start downloading the bait loader file:

2.2 Decoy Downloader Analysis

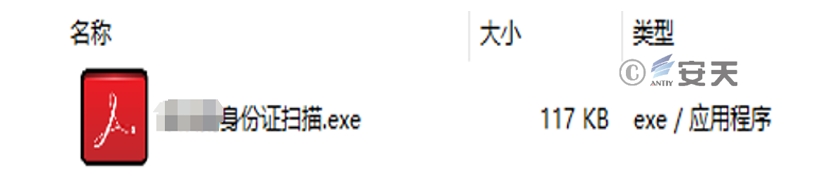

The decoy downloader is a C # program whose icon is disguised as a PDF document, some examples are used to tamper with the time stamp, and the file name is used to guide the target to click and execute by leading speeches on Party discipline events, personal identity document information and other topics. Take the extension line sample as an example:

Table 2-1 Sample Labels of Decoy Downloader

Virus name	Trojan / Win64.MSlL.Wagex
Original file name	* * * ID card scan.exe
Md5	* * * * 5B16A9595D20C0E185AB1FAE738F
Processor architecture	Intel 386 or later processors
File size	116.50 KB (119,296 bytes)
File format	Binexecute / Microsoft.EXE [: X86]}
Time stamp	2024: 03: 12 02: 20: 07 [UTC + 8]
Compiled Language	Microsoft Visual C #
Shell type	None

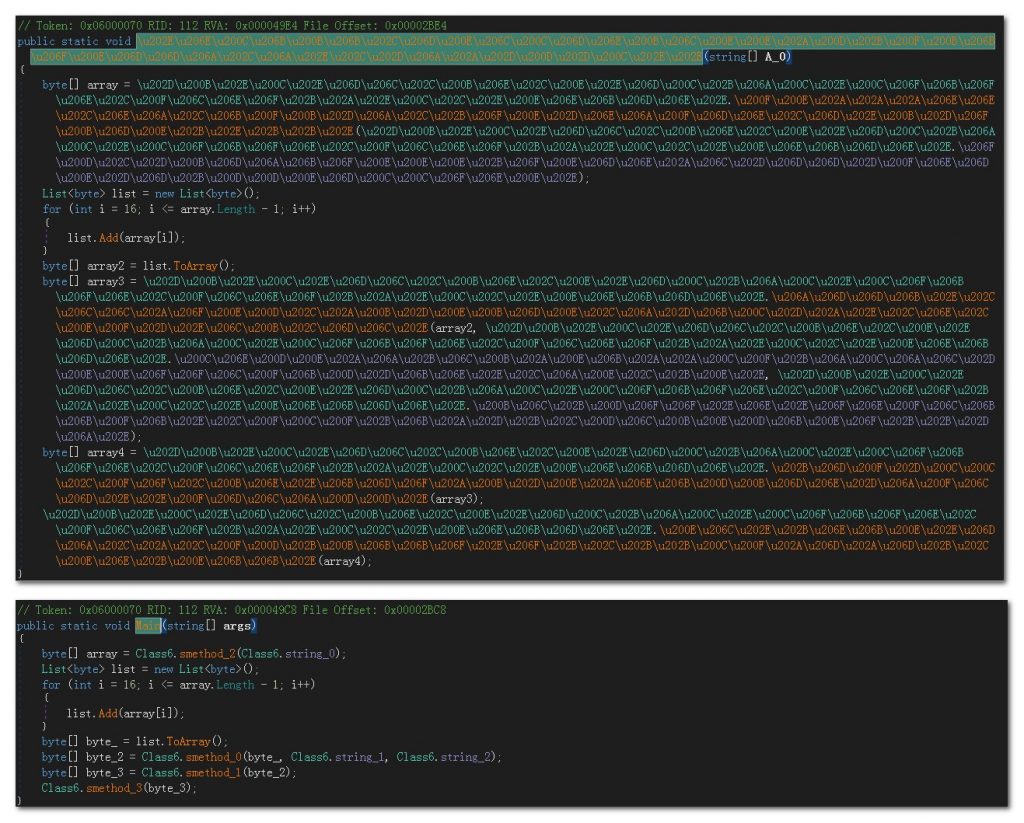

The code content of the downloader is obfuscated, and the sample Main function pair before and after unobfuscating is as shown in the following figure:

The main function first calls the method smethod _ 2 to download the encrypted payload data disguised as a video file from the link “https: / / 128.199. * * *. * * / mp4 / mov.mp4.”

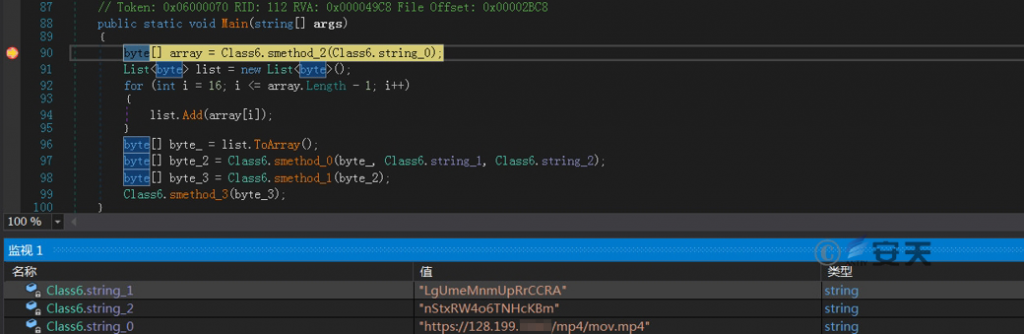

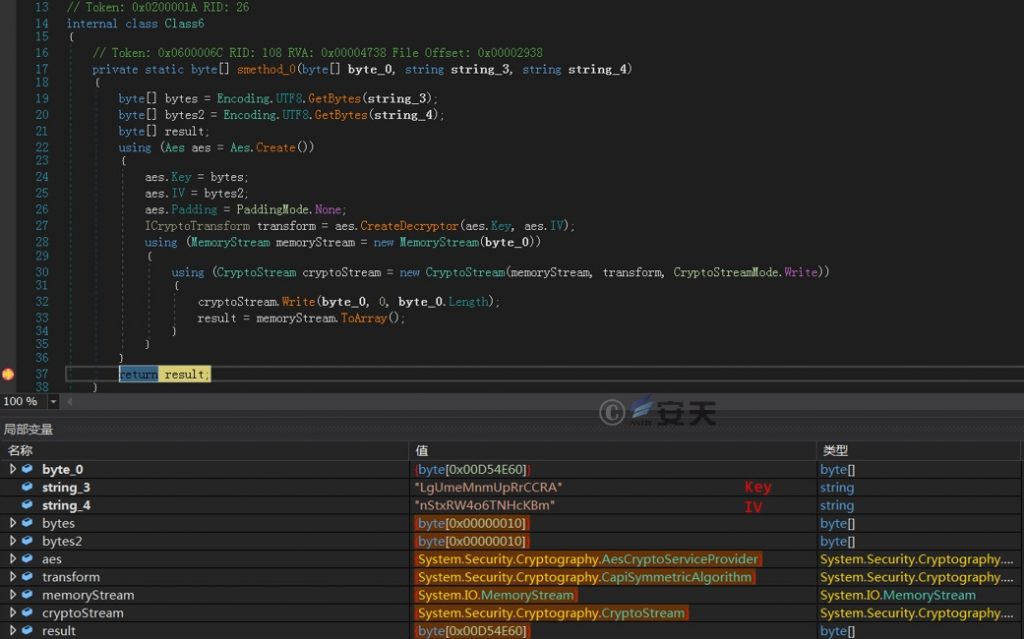

The method _ 0 function is then called to decrypt the downloaded mov. mp4 byte array using AES algorithm. Key used for decryption: “Lgumemnmuprrccra,” IV: “Nstxrw4o6tnhckbm.” The key must be identical with the key used in the encryption to decrypt the data correctly. Iv is a random or pseudo-random value that ensures that the same plaintext produces a different ciphertext each time it is encrypted.

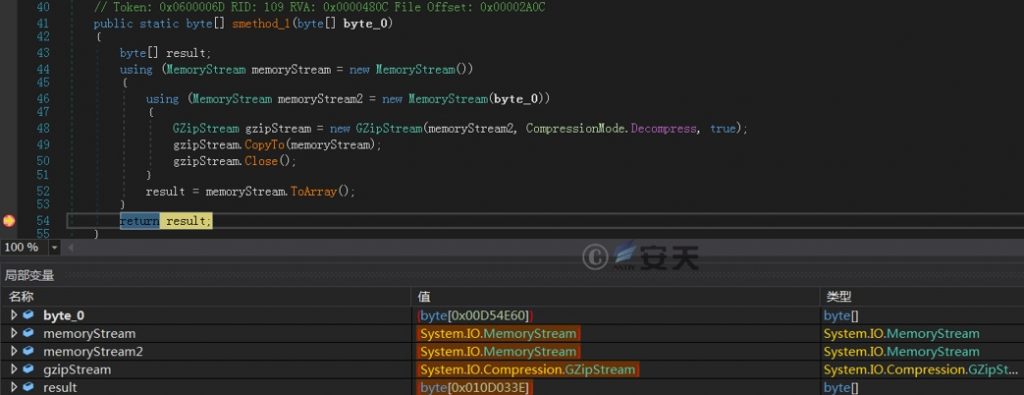

Call smethod _ 1 method, and use GZipStream to extract the AES algorithm to decrypt the resulting byte array.

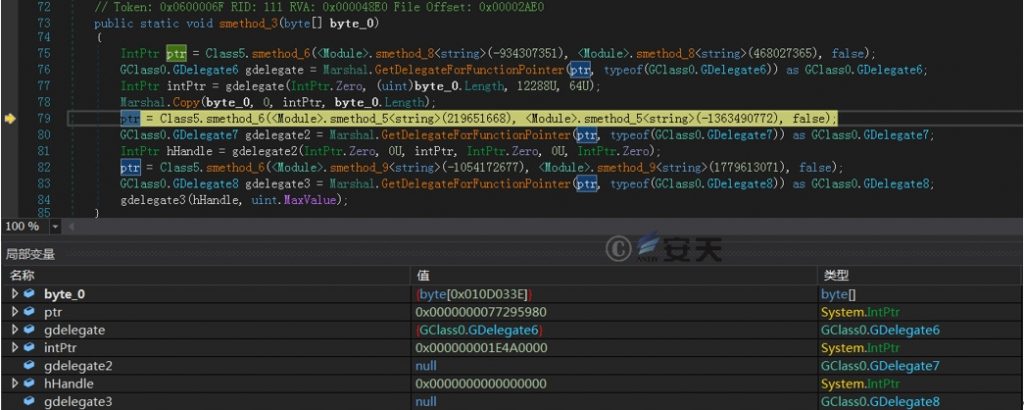

Call the method smethod _ 3, and use multiple delegates and unmanaged code to process the byte array extracted by the method smethod _ 1, in order to finally decrypt the payload and execute it.

2.3 Open source remote control load analysis

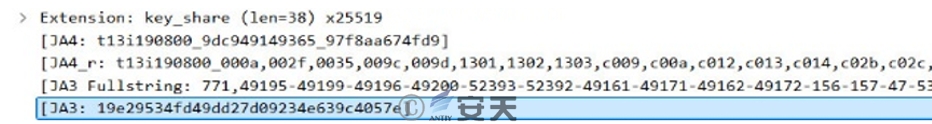

The payload data content disguised as the suffix of the MP4 video file is completely encrypted, and the payload obtained after the above decryption and decompression process has the anti-debugging function. Based on the comparison of multiple code positions such as initial entry and main functions, and the JA3 fingerprint of Client Hello packet in C2 control online communication traffic (19e29534fd49dd27d09234e639c4057e), It can be found that the payload is generated by the well-known Open Source Red Team Command and Control Framework project Sliver.

According to the open source project introduction [2], Sliver is an open source Red Team command and control simulation framework similar to CobaltStrike that can span Windows, Linux and MAC system platforms. It supports multiple network protocol communication modes such as Mutual TLS (mTLS), WireGuard, HTTP (S) and DNS, and has most post-penetration functions similar to tools such as CobaltStrike and Metasploit.

Table 2-2 Sliver remote control frame characteristics

Characteristics	Description
Cross-platform support	Support for MacOS, Windows and Linux systems.
C2 Communications	Support command and control communication via Mutual TLS (mTLS), WireGuard, HTTP (S), DNS.
Dynamic code generation	Code obfuscation at compile time to enhance security.
Multiple Payloads	Phased and phaseless loads are supported.
Scripted	Full scripting can be done using JavaScript / TypeScript or Python.
Memory execution	Supports executing .NET assemblies and COFF / BOF loaders in memory.
Other functions	Including process migration, file theft, process injection, user token operation and other post-penetration functions.

3.Attack Mapping from the Perspective of Threat Framework

This series of attacks involves 25 technical points in 10 phases of ATT & CK framework, and the specific behaviors are described in the following table:

Table 3-1 Technical behavior description of this green spot group attack activity

Att & CK phase	Specific behavior	Notes
Reconnaissance	Gathering information on the identities of the victims	Collect the identity information of the target
	Gathering information about the victims’ networks	Collect the target’s office email account
	Gathering information on the victims’ organizations	Collect the information of the target office
Resource development	Access to infrastructure	Register domain names and servers
	Capacity development	Develop malicious websites, decoy programs, remote control platforms and payloads
	Create an account	Sign up for an originating account to send phishing mail
Initial access	Phishing	Attack via spear-phishing email
Execution	Inducing the user to execute	By inducing the user to click on the bait program starts the Trojan execution flow
Defensive evasion	Circumventing the debugger	Remote control memory payload with anti – debug capability
	Counterfeit	Malicious websites and decoy programs are phishing evasions
Findings	Discover remote systems	Sliver remote-control internal network remote-detecting system
	Scan web services	The Sliver remote control can scan the network services of the remote system
	Discovery of system information	Sliver remote control can inquire system version information
	Discovery system network configuration	Sliver remote control can inquire system network configuration information
	Discovery of account	Sliver remote control can search system account information
	Find files and directories	Sliver remote controls access file and directory information
	Discover the system owner / user	The Sliver remote control can inquire the information of the system’s user and authority group
	Discovery Process	The Sliver remote control can query the current process information of the system
Collection	Collect local system data	Sliver remote control can collect local system version, account and other data
	Input capture	Sliver remote control enables input capture
	Screen capture	Sliver remote control allows screen capture
Command and control	The application layer protocol is used	The Sliver remote control payload uses an application layer protocol to implement command control
	Encoded data	The Sliver remote control load command controls the flow to encrypt the encoded data
Data seeps out	The C2 channel is used for backtransmission	The Sliver remote control payload uses the fixed C2 channel to return the data
Impact	Manipulation of data	Attackers can manipulate victim host data based on Sliver remote control

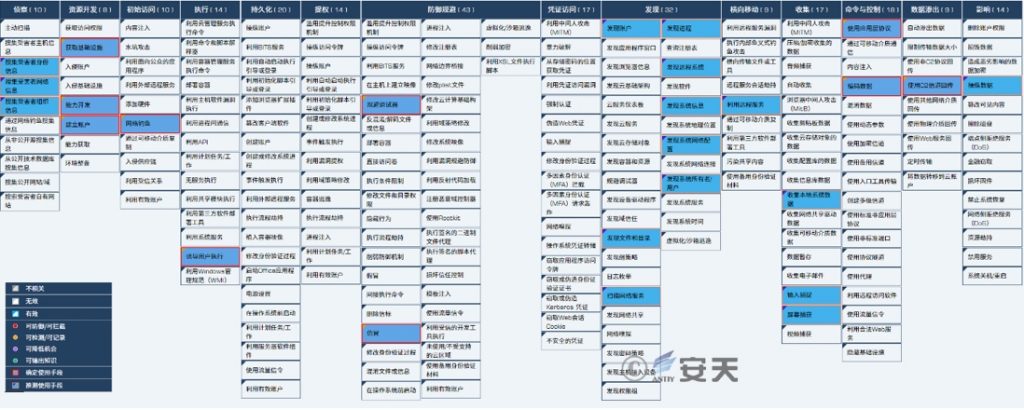

Mapping the technical points involved in the threatening behavior to the ATT & CK framework is shown in the following figure:

4.Summary

Based on the above analysis, Antiy CERT judges and judges that this is from the background of the Taiwan Province of China’s “Green Spots” APT organization’s attack activities. The organization was formally named and exposed by Antiy in 2018, and was covered by CCTV Focus [3]. The attacker constructs strong fraudulent materials of social workers for specific industry targets, conducts spear-phishing attacks, and finally implements Trojan implantation and attack methods of open source remote control framework after multiple disguises and encryption of the payload. Have obvious pertinence.

In order to cope with relevant attacks, it is necessary to build the cornerstone of terminal security and strengthen protection, and the defense level can be composed of email security, network traffic monitoring, terminal protection, XDR linkage analysis and gateway blocking. In particular to terminal security protection software with effective anti-virus and main prevention capability and strong anti-phishing function. Based on the characteristics of social workers and the attack stickiness of “spitting chewing gum everywhere,” improving safety awareness is also an important part of prevention.

Appendix I: Reference Materials

【1】Antiy.operation “Green Spots” – an attack that lasts for years [R / OL]. (2018-09-19)

Https: / / www.antiy.cn / research / notice & report / research _ report / 20180919.html

【2】Bishopfox / sliver [R / OL]. (2019-06)

Https: / / github.com / BishopFox / sliver

【3】Interview in Focus 20181007 Information Security: Prevention of Insider and Anti-Hacker [R / OL]. (2018-10-07)

Http: / / tv.cctv.com / 2018 / 10 / 07 / VIDEHBYLGmnR5LoYZawu3dZc181007.shtml

【4】Critical Infrastructure Security Emergency Response Center. analysis Report on Recent APT Attacks by Green Spot Group [R / OL]. (2020-08-12)

Https: / / mp.weixin.qq.com / s / 275EYNAjOGLn19ng56-czA

Appendix II: IoCs

Iocs

* * * * 2751F6BB4EFAFEC524BE23055FBA * * * BA2DB8C3FDD717D83BB693B3ADE9 * * * 0E267C5EBF2DE55D086D0B2393A6 * * * * 5B16A9595D20C0E185AB1FAE738F * * * * 6B1EBCB43172B5188AD61946D2D0

Ca * * * n [.] com / auto-download.zip 158.247. * *. * * / mp4 / ads.mp4 128.199. * *. * * / mp4 / mov.mp4

Caa * * * n.com Caa * * * n.org Ba * * * cingcloud.com

165.22. * * *. * * 158.247. * * *. * * 128.199. * *. * *
