1.Overview

Recently, the Harbin Institute of Technology and Antiy Joint CERT Labs has monitored multiple attacks using spam to spread remote control Trojans. Attackers send emails with themes such as “order”, “invoice”, “receipt”, etc., and combine the body of the email to induce users to click on phishing links, thereby downloading and executing malicious files. Phishing links are sharing links generated by attackers uploading bait compressed files named “order.rar” , “electronic invoice.rar” , etc. to file sharing platforms. This method can achieve the effect of reducing their own operating costs, avoiding tracing, and bypassing whitelists.

The decoy compressed package contains three files, of which the .data file and the .exe file have the same name, usually “order” and “electronic invoice”, and the file named “cl32.dll” is the core malicious file. The attacker uses the running mechanism of white and black to induce the target to execute the exe file to load the dll file. After running, cl32.dll decrypts and executes the core malicious dll in the memory to connect to C2 and download the communication module. The communication module is named “client.dll”. After correlation and source tracing analysis, it is confirmed that the dll file is a “communication transmission framework” shared on a forum, which can realize multi-protocol communication and data interaction. It is speculated that it provides support for C2 connection in multi-protocol communication.

From the sample analysis, the sample is written in Easy Language. Based on the existing analysis results, it is confirmed that the sample has the process and network behavior characteristics of a remote control Trojan and has some malicious functions. Based on the characteristics of the relevant malicious samples and the sharing content of the communication module source forum, the researchers speculate that this attack activity is the attacker’s malicious use of tools and technologies shared on a forum to construct a remote control Trojan and spread it through spam. Comprehensive sample analysis and tracing results, combined with the attacker’s use of technology and malicious intentions, researchers believe that once the user executes the remote control Trojan spread by spam in this attack activity, the user’s terminal will face remote control risks and data leakage risks.

2.ATT&CK Mapping of This Attack Activity

The distribution diagram of technical features corresponding to this attack activity:

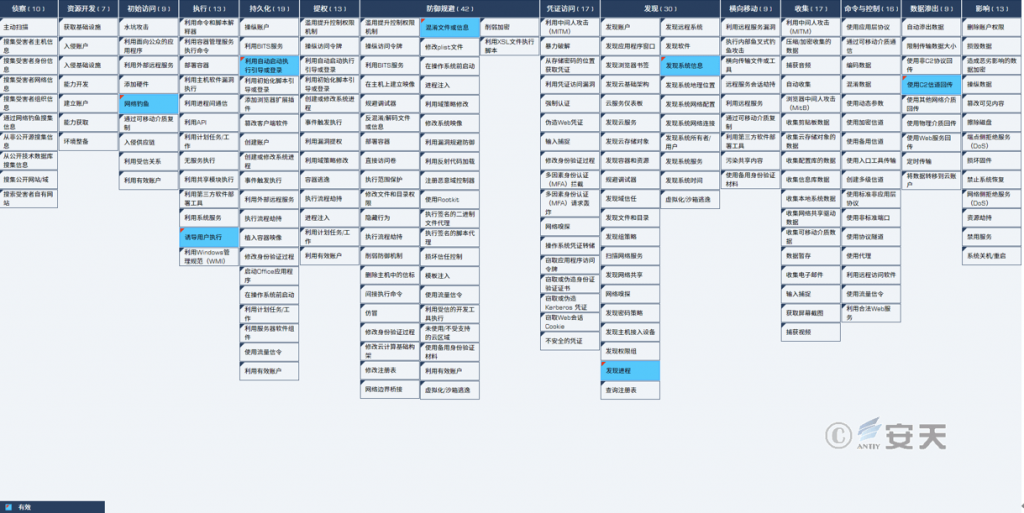

Figure 2 ‑1 Mapping of technical features to ATT&CK

The specific ATT&CK technical behavior description is shown in Table 2-1.

Table 2 ‑1 ATT&CK technical behavior description table corresponding to the event

ATT&CK Phase/Category	Specific Behavior	Notes
Initial Access	Phishing	Sending spam emails to spread remote control Trojans
Execute	Induce users to execute	Inducing users to execute in the name of “electronic invoice”
Persistence	Booting or logging in with autostart	Create a shortcut to the system startup directory
Defense Evasion	Obfuscating files or information	Encrypt dll files
Discover	Discovery Process	Detection of protection software processes
	Discover system information	Detect system version and other information
Data Exfiltration	Use C2 channel for backhaul	Connect C 2 and transmit data back

3.Protection Recommendations

In response to this remote control Trojan, Antiy recommends that government agencies and enterprises take the following protective measures:

3.1 Identify Phishing Emails

1. View email senders: Be wary of non-organized senders who send “business mail”;
2. View recipient address: Be wary of mass emails and contact the sender to confirm;
3. Check the delivery time: Be wary of emails sent outside of working hours;
4. View the email title: Be wary of emails with titles containing keywords such as “order”, “invoice”, “wage subsidy”, “purchase”, etc.
5. View the text wording: Be wary of emails that begin with general greetings such as “Dear”, “Dear User”, “Dear Colleague”, etc.
6. View main text for purpose: Be wary of emails that ask for email account passwords in the name of “system upgrade”, “system maintenance”, “security settings”, etc.
7. View the text content: Be wary of web links included in them, especially short links;
8. View the contents of attachments: Before viewing, you must use anti-virus software to scan the attachments for viruses.

3.2 Daily Mailbox Security Protection

1.Install terminal protection software: Install terminal protection software, enable the scanning and detection function of email attachments in the protection software, perform security checks on the system regularly, and repair system vulnerabilities.

2.Email login password: When setting the email login password, ensure that it has a certain degree of complexity (including three character elements), ensure that the password is not recorded in a conspicuous place in the office area, and modify the login password regularly.

3.The email account must be bound to the mobile phone: After the email account is bound to the mobile phone, you can not only retrieve your password, but also receive SMS prompts of “abnormal login” and deal with it immediately.

4.Important files should be well protected:

important emails that are no longer used in your inbox, outbox, and trash in a timely manner;

loss after an attack;

important emails or attachments should be sent encrypted, and the decryption password should not be included in the body of the email.

5.Protect sensitive information: Do not post sensitive information on the Internet. Information and data posted by users on the Internet can be collected by attackers. Attackers can analyze this information and data and send targeted phishing emails to users.

3.3 Protection for Government and Enterprise Organizations

1. Install terminal protection software: Install anti-virus software. It is recommended to install Antiy Intelligent Endpoint Protection System;
2. Improve password strength: Avoid using weak passwords. It is recommended to use a password of 16 characters or longer, including a combination of uppercase and lowercase letters, numbers, and symbols. Avoid using the same password on multiple servers.
3. Deploy intrusion detection system (IDS): Deploy traffic monitoring software or equipment to facilitate the discovery and tracking of malicious code. Antiy Persistent Threat Detection System (PTD) uses network traffic as the detection and analysis object, and can accurately detect a large number of known malicious codes and network attack activities, and effectively discover suspicious network behaviors, assets and various unknown threats;
4. Antiy Service: If you are attacked by malware, it is recommended to isolate the attacked host in time and protect the site while waiting for security engineers to check the computer; Antiy 7*24 hours service hotline: 400-840-9234.

It has been verified that Antiy Intelligent Endpoint Protection System (IEP for short ) can effectively detect and kill the remote control Trojan.

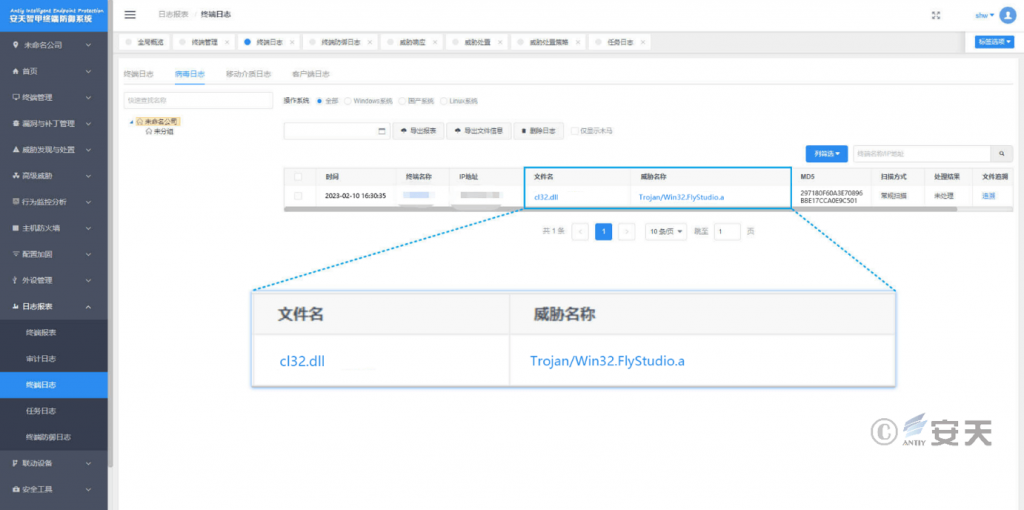

Figure 3 ‑1 Antiy IEP achieves effective protection for users

4       Email Analysis

Spam mainly uses subjects such as “order”, “invoice”, “receipt” and so on to construct the email body and embed phishing links in it, which exist in an implicit way (that is, the displayed link is inconsistent with the actual link), showing that after the link is accessed, it is indeed an invoice file.

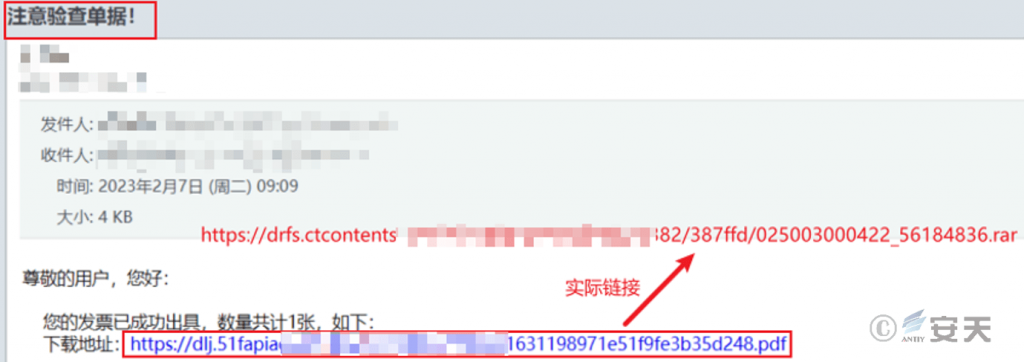

Figure 4 ‑1 Spam email

Phishing links are mainly generated by document sharing platforms, such as “Kingsoft Documents”, “NetEase Mailbox Master”, “Lanzo Cloud Storage”, etc. The bait compressed files are stored on multiple document sharing platforms, and corresponding links are generated. They are continuously sent to the target mailbox via spam emails, inducing the target to click and download the corresponding compressed files.

5.Sample Analysis

5.1 Analysis of the Decoy Compressed Package

The compressed package contains three files, namely “electronic invoice.exe”, “electronic invoice.data”, and ” cl32.dll”. Two of the executable programs have U PX shells. After analysis, it was verified that the files in the compressed package used the white-on-black technology to implement malicious code execution. The specific malicious file is cl32.dll.

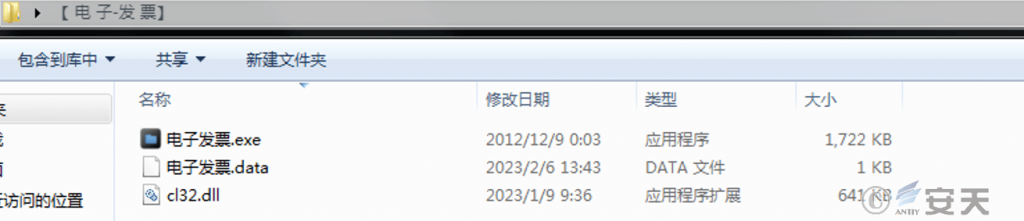

Figure 5 ‑1 Decoy compressed file

5.2 Analysis of cl32.dll

5.2.1 Sample Tags

Table 5 ‑1 cl32.dll sample tags

Malicious code name	Trojan/Win32.FlyStudio.a
Original file name	cl32.dll
MD5	297180F60A3E70896BBE17CCA0E9C501
Processor architecture	Intel 386 or later processors and compatible processors
File size	640.50 KB (655,872 字节)
File format	BinExecute/Microsoft.EXE[:X86]
Timestamp	2023-01-09 01:36:31
Digital signature	None
Packer type	UPX
Compiled language	Easy Language
VT first upload time	2023-02-06 03:52:36
VT test results	22 / 69

5.2.2 Dynamically Decrypt and Load Dll

c l32.dll is loaded, it decrypts and loads another dll file in memory, which is named “DLL.dll” below.

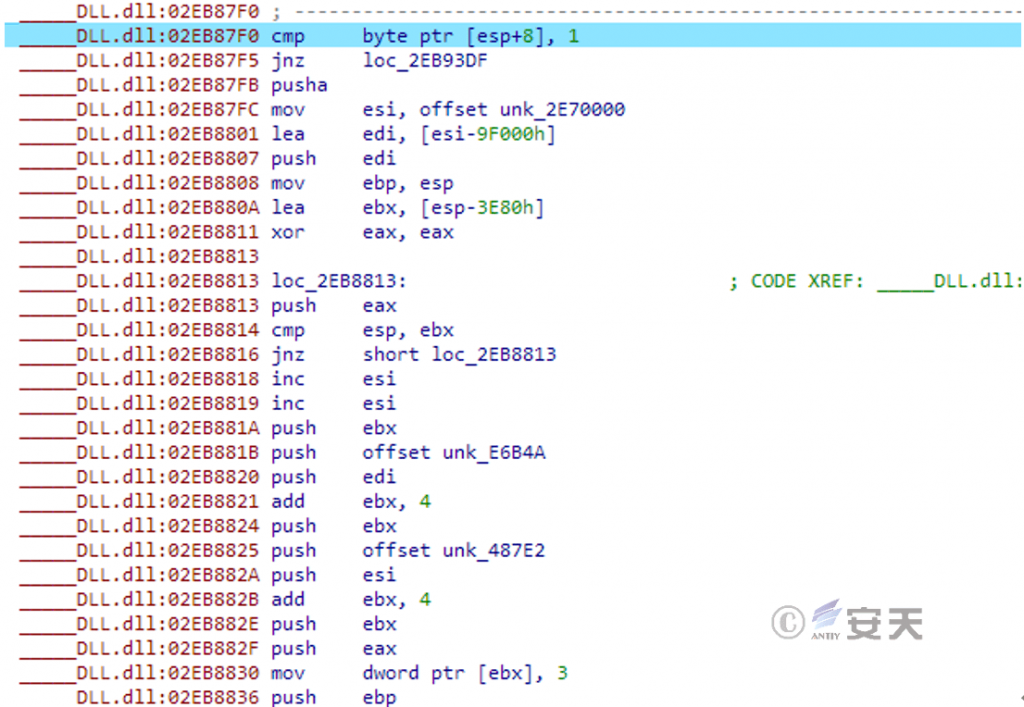

Figure 5 ‑2 Decrypting and loading the dll

5.2.3 Download Communication Module

Decrypting and loading the DLL.dll , it reads the .data file in the current directory and decrypts it in memory. The decrypted content is the C2 connection address and the communication module download address.

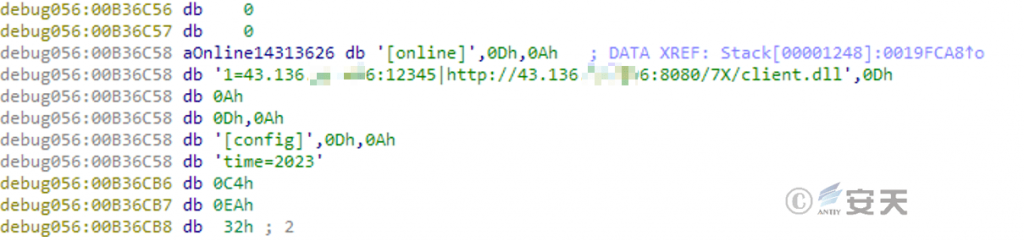

Figure 5 ‑3 Decryption of C2 and communication module download address configuration information

Connect the U RL download communication module.

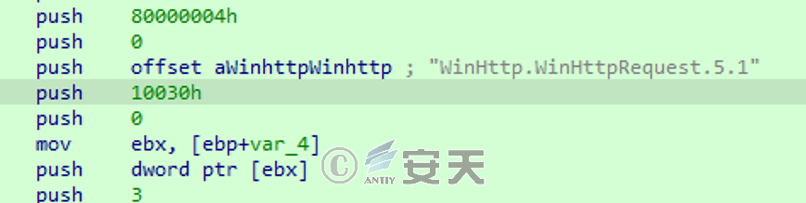

Figure 5 ‑4 Download communication module

5.2.4 Process Behavior

After the communication module is downloaded, a child process is created with the newly copied exe file as the carrier, and the own process is terminated.

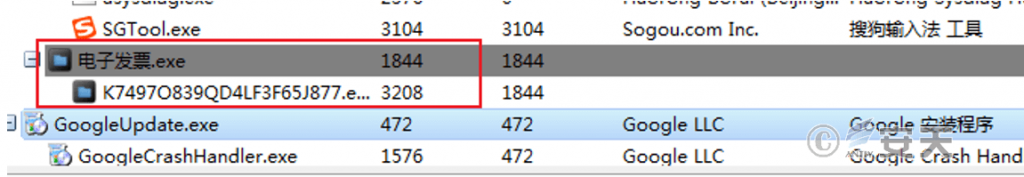

Figure 5 ‑5 Process behavior

5.2.5 Persistence

After the program is run, a shortcut will be created and copied to the startup directory to achieve persistent operation.

Figure 5 ‑6 Creating a shortcut in the startup directory

5.2.6 Connect C2 Address

After the communication module is downloaded successfully, it will connect to C2 and send an online packet.

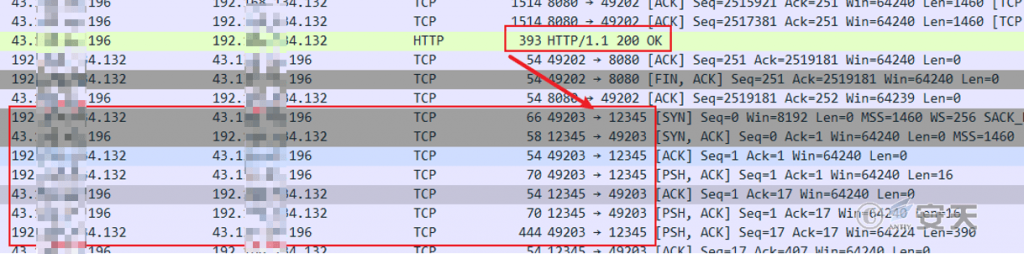

Figure 5 ‑7 Connect C2

The encrypted information is then continuously sent.

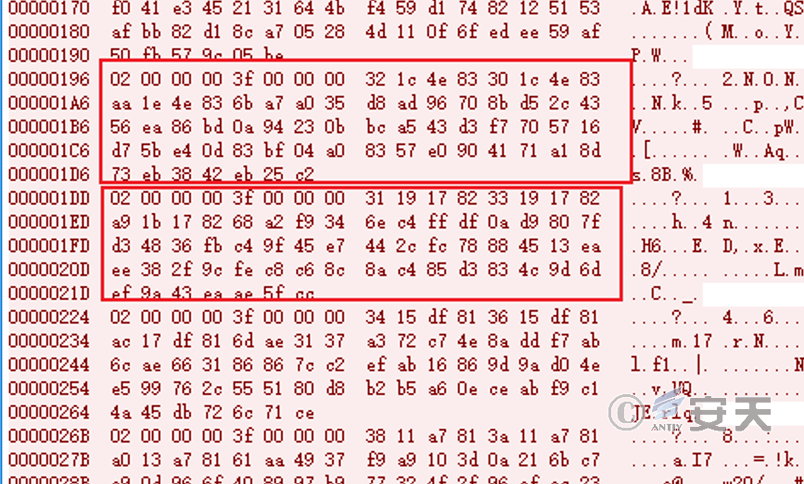

Figure 5 ‑8 Sending encrypted information

5.3 Analysis of client.dll

5.3.1 Sample Tags

Table 5 ‑2 client .dll sample tags

Malicious code name	Trojan/Win32.FlyStudio.a
Original file name	client.dll
MD5	77679E51504F2B94565B6E974D29FFFF
Processor architecture	Intel 386 or later processors and compatible processors
File size	2.40 MB (2,519,040 bytes)
File format	BinExecute /Microsoft.DLL[:X86]
Timestamp	2023-01-10 10:52:55
Digital signature	None
Packer type	None
Compiled language	Easy Language
VT first upload time	2023-01-16 15:36:15
VT test results	41 / 68

5.3.2 Communication Function

After analyzing the client.dll file, it was confirmed that the file was a communication transmission framework shared in a forum.

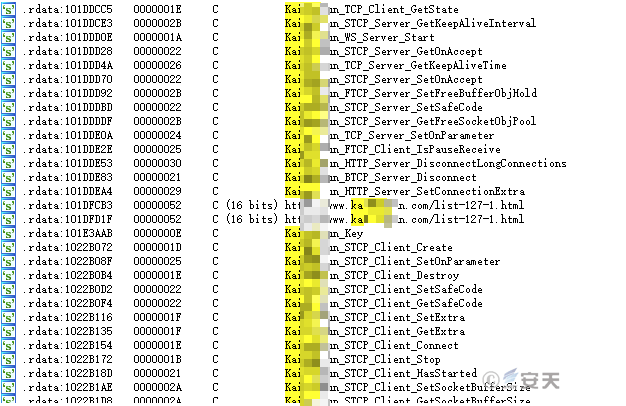

Figure 5 ‑9 Communication module

5.3.3 Terminal Protection Process Detection

The communication module also comes with a detection function for the core process of the target host terminal protection software.

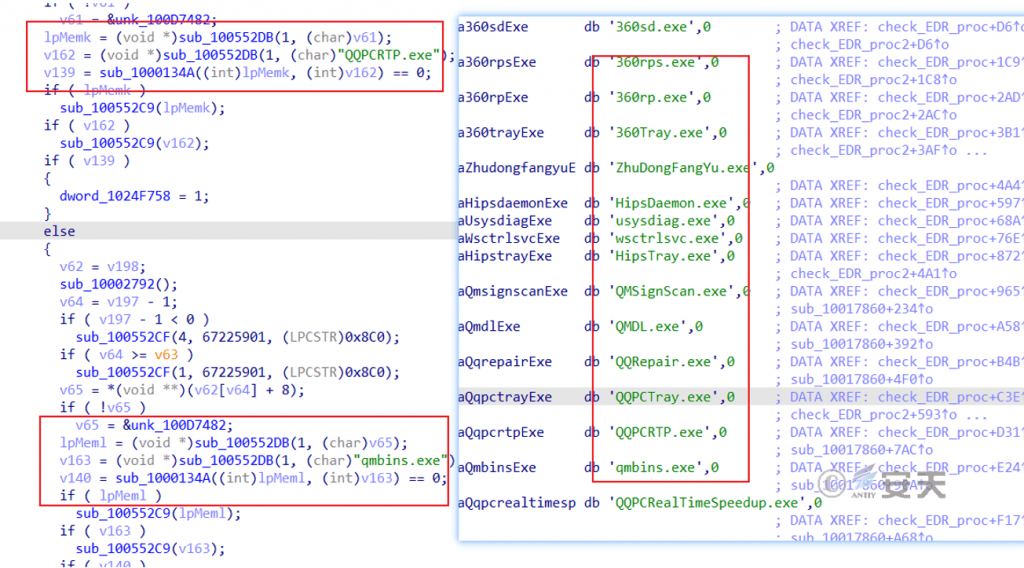

Figure 5 ‑10 Terminal protection process detection

6.IoCs

5d561153af1589bd1d64556bddd257e0

297180f60a3e70896bbe17cca0e9c501

77679e51504f2b94565b6e974d29ffff

2f49e81d731dc4ed960e546a57b06f4a

6e47449010e84f52736fa9033820fdb6

43.**.**.196:12345

175.**.**.96:12345

150.**.**.22:12345

http[:]//27.**.**.194:8080/7X/client.dll

http[:]//43.**.**.80:8080/7X/client.dll

http[:]//192.**.**.60:8080/7X/client.dll

http[:]//134.**.**.215:8080/7X/client.dll

http[:]//43.**.**.85:8080/7X/client.dll

http[:]//47.**.**.161:8080/7X/client.dll

http[:]//43.**.**.194:8080/7X/client.dll

http[:]//43.**.**.8:8080/7X/client.dll

http[:]//150.**.**.22:8080/7X/client.dll

http[:]//43.**.**.196:8080/7X/client.dll

http[:]//175.**.**.96:8080/7X/client.dll

https://www.kdocs.cn/view/l/crE7FLdvYnGN

https://dashi.163.com/html/cloud-attachment-download/?key=djAycC8yc05PUU82cjV5ZUVPUG9QNzBWQT09

https://wwpb.lanzoue.com/ihvhc0mu6mvc
