1.Overview

In recent years, the AgentTesla Trojan horse continues to be active, and Antiy CERT has repeatedly monitored attacks on domestic government, enterprise and institutions of higher learning to deliver the Trojan. Since February of this year, Antiy CERT has monitored a new wave of fishing using the GuLoader loader to deliver the AgentTesla secret Trojan. The attackers sent phishing emails to enterprises in manufacturing, energy and Internet in many countries in Europe and Asia with the theme of product quotation, and found an attack against a domestic enterprise.

Guloader, which emerged at the end of 2019, is a malicious file loader that distributes and loads other malicious files through phishing emails. The loader uses a variety of obfuscation methods to avoid the detection of safety products, and uses a large number of anti-reverse analysis methods to hinder the analysis of safety researchers. In the phishing email campaign, the attacker sent a phishing email to an enterprise in the auto industry of China under the theme of the invitation for project quotation, named the file in the attachment with the project name, and induced the target to execute the VBS script in the attachment. Thus, the execution GuLoader loader loads Shellcode into memory, and the final payload of the delivery is the AgentTesla secret Trojan.

Agenttesla is a kind of commercial secret-stealing Trojan horse written with .NET language. it has many secret-stealing functions such as keyboard recording, screen shot, stealing the password of designated software, etc. And can use the Tor anonymous network, email, FTP, HTTP and other ways to return, so as to achieve the purpose of stealing the victim’s information. On May 7, 2018, Antiy CERT published “Watch out for New Variations of AgentTesla Commercial Keylogger” [1], and on August 12, 2021, “Analysis of New Variations of AgentTesla Commercial Trojan Horse” [2]. In these two reports a detailed analysis of the Trojan.

It has been proved that ATIS-A Terminal Defense System (IEP) can effectively detect and kill such malicious software as loaders and secret Trojans.

2.ATT&CK mapping map corresponding to this attack activity

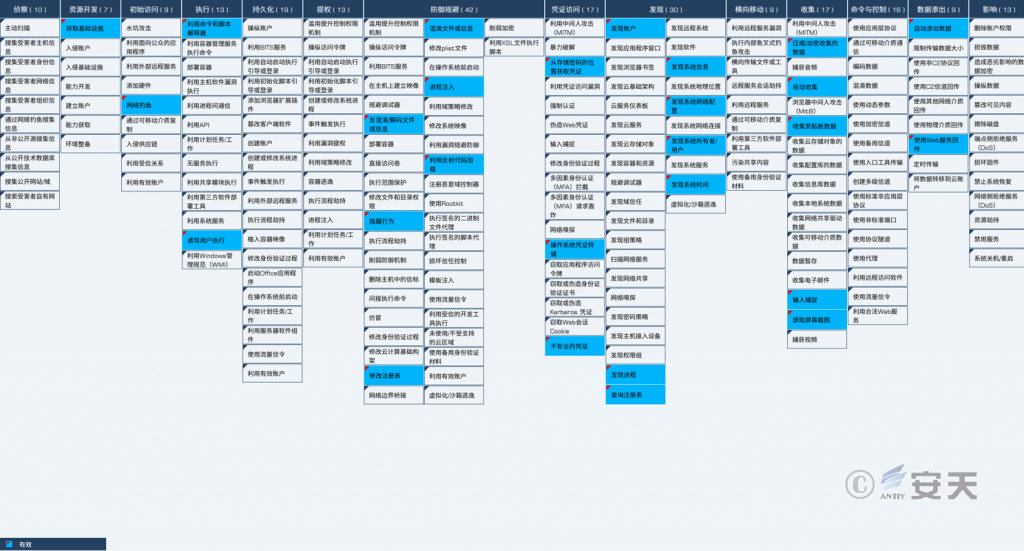

Distribution map of ATT & CK technical characteristics corresponding to this attack activity:

Figure 2-1 Mapping of Technical Features to ATT&CK ‑

Specific ATT&CK technical behavior description table:

Table 2-1 Description of ATT&CK technical behavior corresponding to the event ‑

Att & CK stages / categories	Specific behavior	Notes
Resource development	Access to infrastructure	Register the return mail server
Initial access	Phishing	Spread by phishing mail
Execution	Using command and script interpreters	Execute VBS script, PowerShell command
	Inducing the user to execute	Use the “Project Quotation” theme to induce the user to execute
Defensive evasion	Anti-obfuscate / decode files or information	Decoding multi-layer payload information
	Concealment	Evading the detection of safety products
	Modify the registry	Writes data to the specified registry key
	Confusion of documents or information	Obfuscate code instructions and encrypt multi-layer payload information
	Process injection	Create a process and inject
	Load with reflected code	Use PowerShell to load Shellcode into memory
Credential access	Obtain credentials from the location where the password is stored	Access the browser and other application software credentials
	Operating system credential dump	Reading Windows credential data
	Insecure credentials	Access to insecure application software credentials
Findings	Discovery of account	Access to system account information
	Discovery Process	Gets a list of system processes
	Query the registry	Reads data from the specified registry key
	Discovery of system information	Obtain basic information of the system
	Discovery system network configuration	Access to system network information
	Discover the system owner / user	Obtain system user information
	System discovery time	Get the system time
Collection	To compress / encrypt the collected data	Encrypt the collected data
	Automatic collection	Automatic collection of victim data
	Collect clipboard data	Collect clipboard data
	Enter capture	Capture victim keyboard input
	Get a screenshot	Capture the victim’s screen shots at regular intervals
Data seeps out	Automatically seeps out data	Automatically send the collected data
	Using Web Service Backpass	Use e-mail to return data

3.Recommendations for protection

3.1 Identify phishing mail

1. Check mail senders: Watch out for non-organizational senders who send “business mail”;
2. Check the addressee’s address: Be alert to group email, and contact the addressee for confirmation;
3. See the delivery time: Watch out for the non-working time sent mail;
4. Read the email title: Watch out for emails with the title of “order,” “bill,” “wage subsidy,” “purchase” and other keywords;
5. See the wording of the text: Alert to “pro,” “dear users,” “dear colleagues” and other more general greetings of the mail;
6. Purpose of reading the text: Be alert to the emails that ask for the account password in the name of “system upgrade,” “system maintenance” and “security setting”;
7. Look at the main content: Alert to the attached web links, especially short links;
8. See attachment content: Before viewing, use anti-virus software to scan the attachment for virus detection.

3.2 Protection for daily safe use of email boxes

1. Install terminal protection software: Install terminal protection software, open the function of scanning and detecting email attachments in the protection software, regularly conduct security detection on the system, and repair system vulnerabilities.
2. Email login password: The email login password shall be set with certain complexity (including three character elements), the password shall not be recorded in an obvious place in the office area, and the login password shall be changed regularly.
3. Email account shall be bound with mobile phone: After the email account is bound with mobile phone, the user can not only retrieve the password, but also receive the SMS prompt of “abnormal login” for instant disposal.
4. Important documents shall be protected:
   1. Empty the inbox, outbox and trash of important mails that are no longer in use in time;
   1. Backup important files to prevent files from being lost after being attacked;
   1. Important emails or attachments shall be encrypted and sent, and no decryption password shall be attached to the text.
5. Sensitive information shall be protected: Do not release sensitive information on the Internet, and the information and data released by users on the Internet will be collected by attackers. By analyzing this information and data, attackers can send phishing emails to users in a targeted way.

3.3 Government, enterprise and institutional protection

1. Install the terminal protection software: Install the anti-virus software, and it is recommended to install the Antiy IEP terminal protection system;
2. Strengthen password strength: Avoid using weak passwords, and recommend using 16-digit or longer passwords, including combinations of upper and lower case letters, numbers and symbols, and avoid using the same password for multiple servers;
3. Deployment of Intrusion Detection System (IDS): Deployment of traffic monitoring software or equipment to facilitate the discovery, tracing and tracing of malicious codes. Taking network traffic as the detection and analysis object, Antiy PTD can accurately detect a mass of known malicious codes and network attack activities, and effectively detect suspicious behaviors, assets and various unknown threats on the network;
4. Safety service: In case of malware attack, it is suggested to isolate the attacked host in time, and protect the site and wait for the security engineer to check the computer; Safety 7 * 24 service hotline: 400-840-9234.

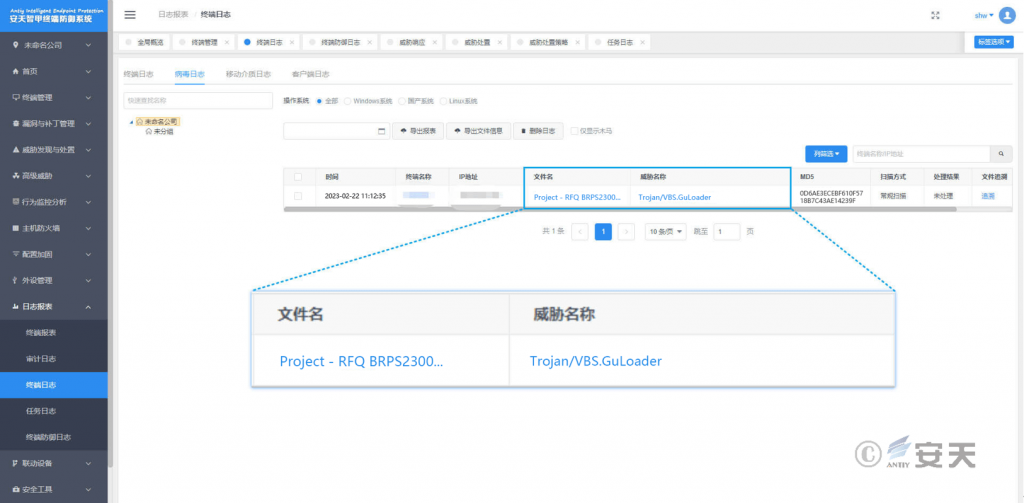

It has been proved that Antiy IEP can effectively check and kill the malicious files and effectively protect the user terminal.

Figure 3-1 The effective protection of the user terminal implemented by Antiy IEP

4.Email analysis

4.1 E-mail information

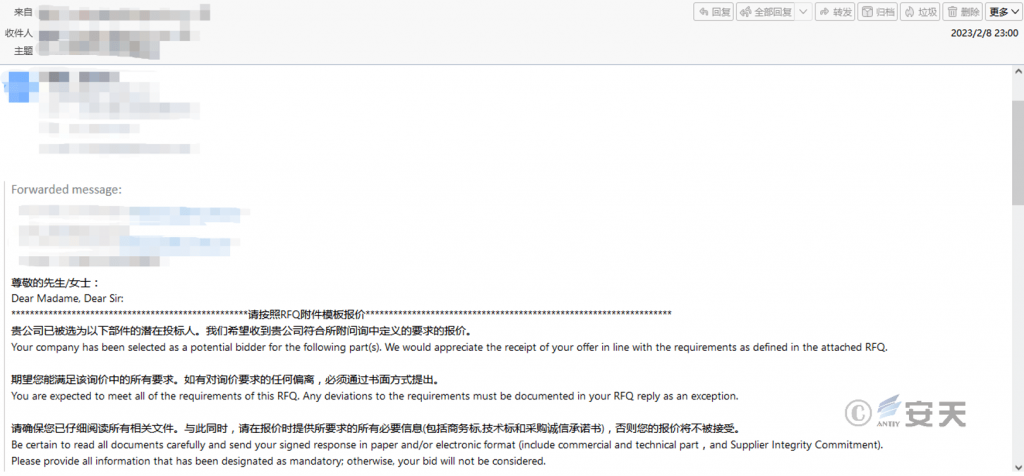

The attacker launches phishing email for the target user, the subject of the email is the invitation for quotation of a project, and the description of the bidding project is given in the text of the email.

Figure 4-1 Content of a phishing email

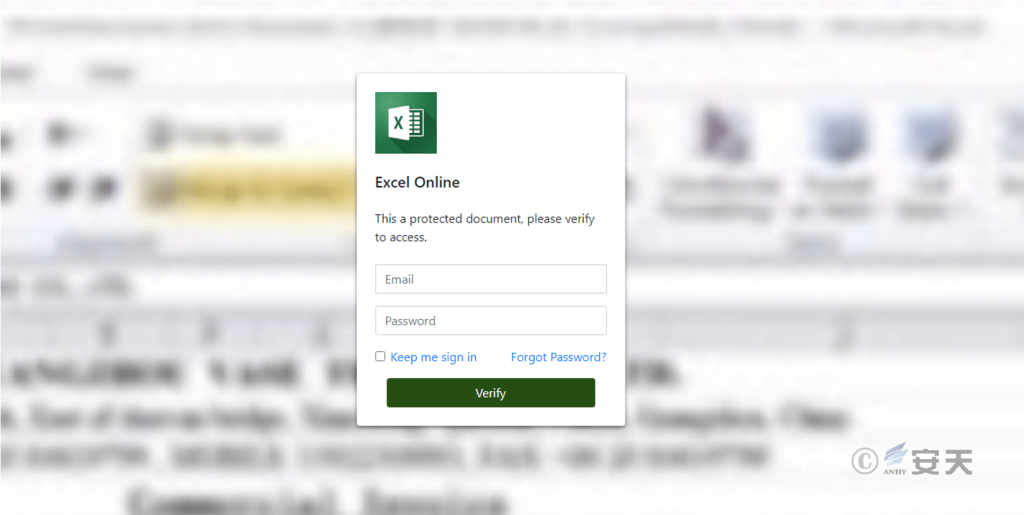

The message has two attachments: An html file and a zip file. The html file is a phishing web page disguised as an online form to steal the user’s mailbox password, and the zip file contains a VBS script to execute the GuLoader loader and deliver the AgentTesla secret Trojan to the target system.

Figure 4-2 Fishing Web Page

After analyzing the email information, it was found that the sender’s email box and IP address were matched without being forged. It is speculated that the attacker may have previously used similar phishing techniques to steal the email of the target company’s employees, and used the stolen email to carry out further phishing attacks against other employees.

4.2 Correlation analysis

After further correlation analysis of emails, it was found that there had been a number of phishing activities using the GuLoader loader to deliver AgentTesla secret Trojan horse since February 8, and most of the email subjects were related to product quotations. The target involves enterprises in manufacturing, energy, Internet and other fields in many countries in Europe and Asia. After analyzing the relevant samples, it is found that there is a high similarity among the attack loads. it is presumed that the attack load is initiated by the same attack organization.

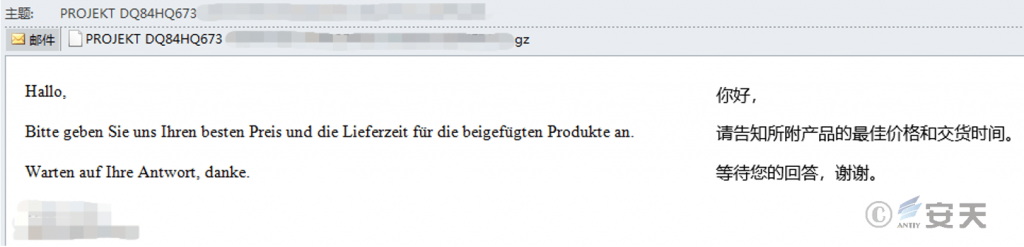

Figure 4-3 Fishing emails sent to an enterprise in Germany ‑

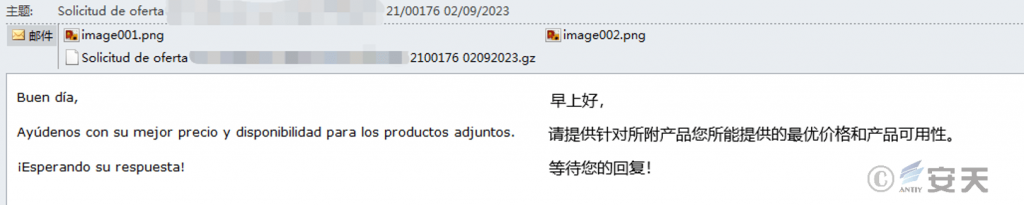

Figure 4-4 Fishing emails sent to an enterprise in Spain ‑

5.Sample analysis

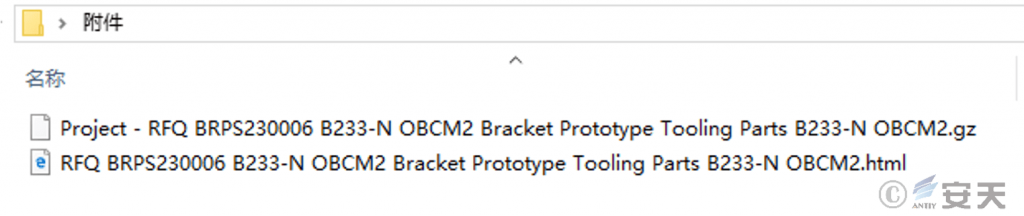

The message contains two attachments, of which the html file is a phishing page used to steal the user’s mailbox password, and the zip file contains a VBS script used to execute the GuLoader loader.

Figure 5-1 Related accessories ‑

5.1 Fishing Pages

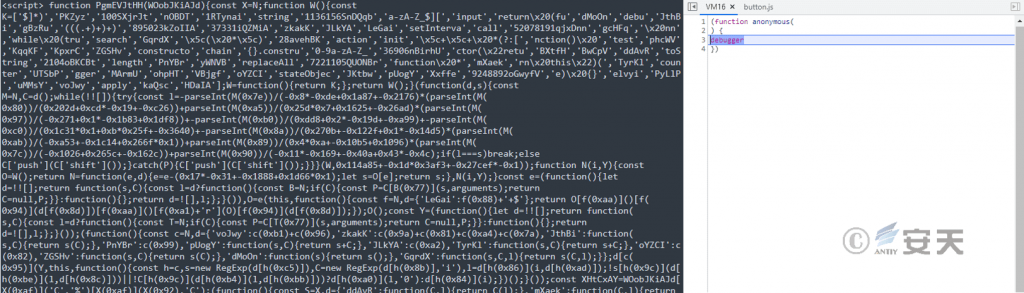

The code in the html file is obfuscated and anti-debug set to hinder parsing.

Figure 5-2 html file

The attacker disguises it as an online form that is used to steal the user’s email password.

Figure 5-3 E-mail password stealing by fishing page ‑

5.2 The GuLoader loader

5.2.1 Sample labels

Table 5-1 Sample labels ‑

Name of malicious code	Trojan / VBS.GuLoader
Original file name	Project-RFQ BRPS230006 B233-N OBCM2 Bracket Prototype Tooling Parts B233-N OBCM2.vbs
Md5	0d6ae3ecebf610f5718b7c43ae14239f
File size	419.92kb (430,003 bytes)
File format	Script / Microsoft.VBS
Vt First Upload Time	2023-02-09 07: 18: 42
Vt test result	14 / 58

5.2.2 Vbs script

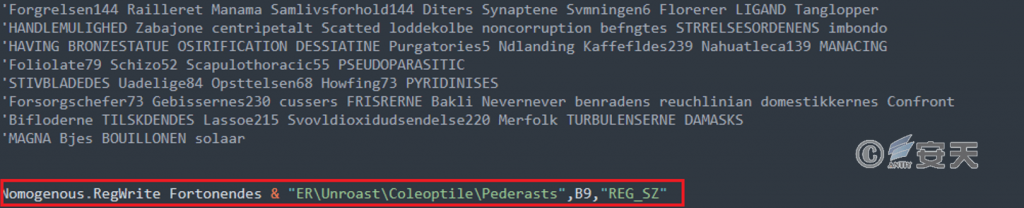

The VBS script files are obfuscated, with lots of extraneous comments and some useless code added to interfere with the security researcher’s analysis. After script execution, the data is written to the specified registry key “HKCU\ Unroast\ Coleoptile\ Pederasts.”

Figure 5-4 Write data to the registry

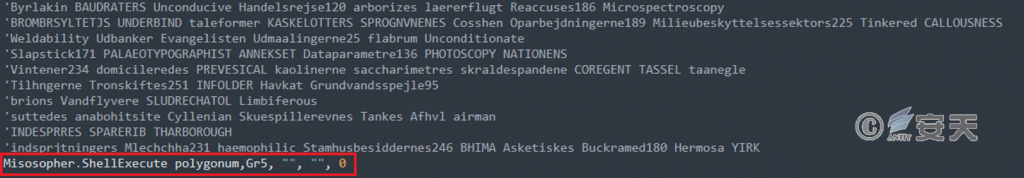

Executes a PowerShell instruction that has undergone string substitution processing.

Figure 5-5 Execution of instructions

5.2.3 Phase I PowerShell

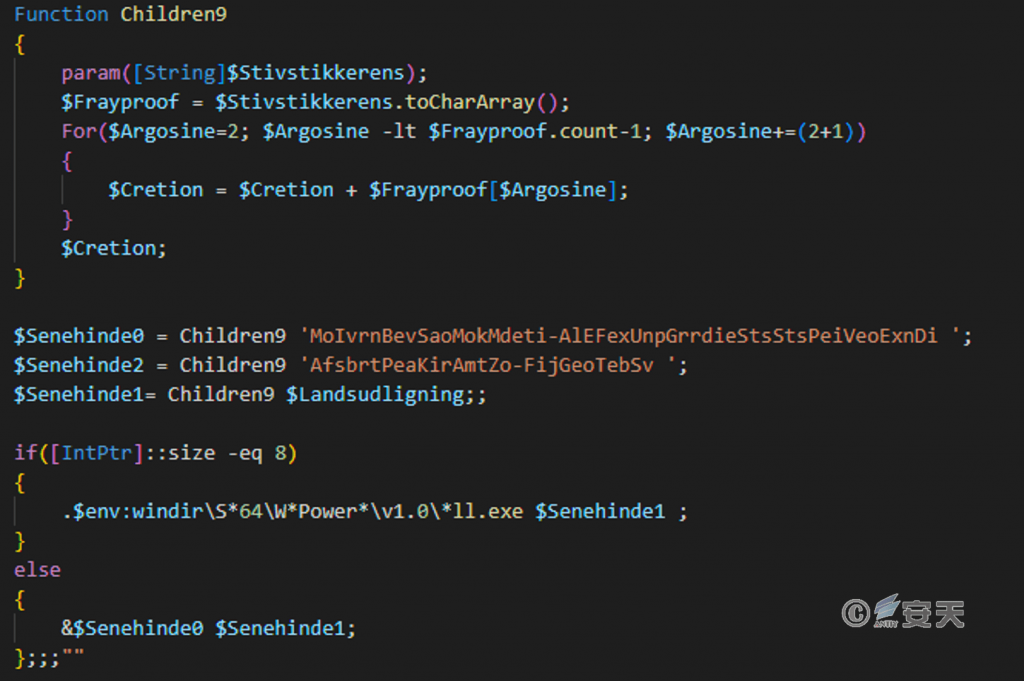

In the first stage, the PowerShell instruction decodes the string in a custom encoding way, determines the number of bits in the current operating system, and selects the corresponding way to execute the next stage instruction.

Figure 5-6 PowerShell instruction ‑

5.2.4 Phase II PowerShell

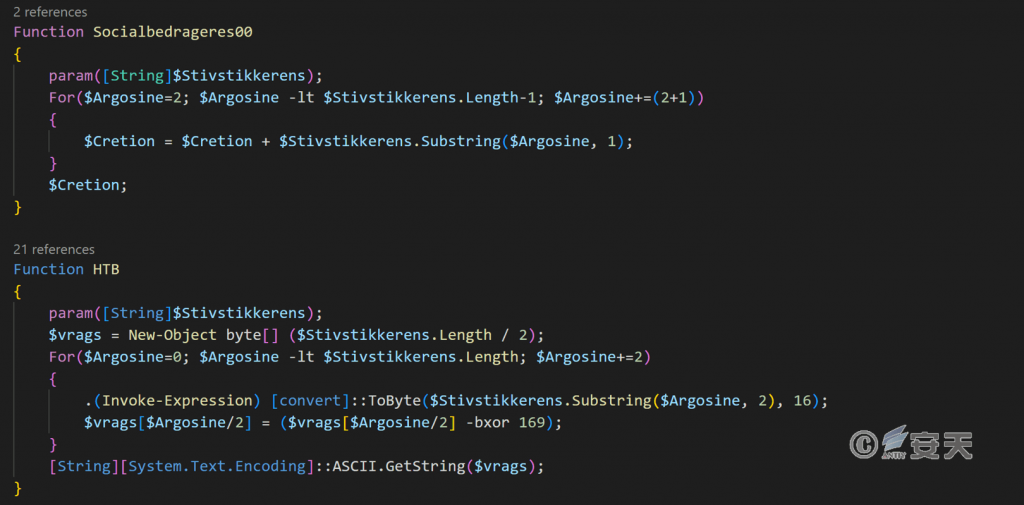

The second phase of PowerShell code uses two custom encodings to decode the key strings.

Figure 5-7 Two custom encoding modes ‑

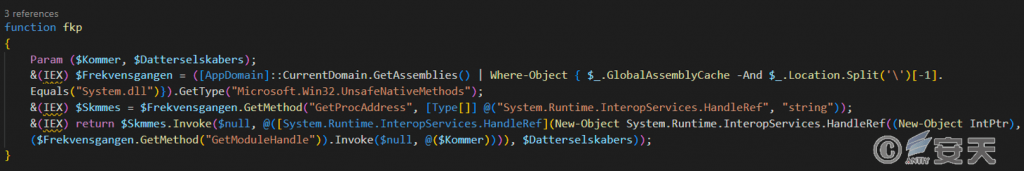

Gets the API function address to call the specified function.

Figure 5-8 Acquiring functions ‑

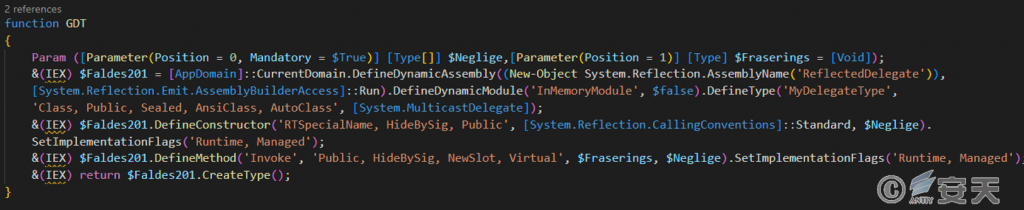

Use reflection to execute blocks of code in memory for a “no file attack.”

Figure 5-9 Reflection execution ‑

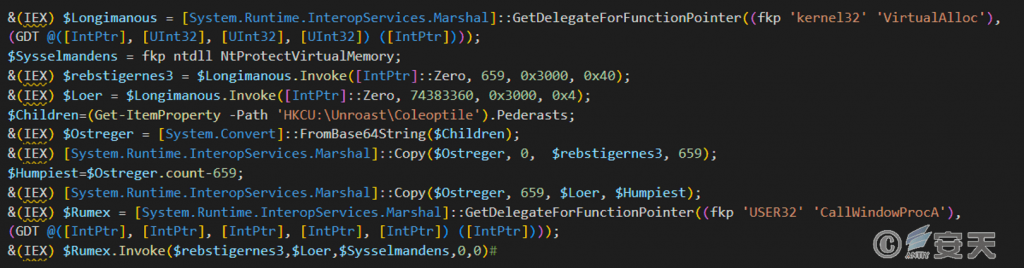

Apply for two memory spaces, read the stored data from the specified registry key for Base64 decoding, and divide the decoded data into two Shellcodes and write them into the applied memory space for execution. The final payload is the AgentTesla Trojan horse. On May 7, 2018, Antiy CERT published “Watch out for New Variations of AgentTesla Commercial Keylogger” [1], and on August 12, 2021, “Analysis of New Variations of AgentTesla Commercial Trojan Horse” [2]. In these two reports on the Trojan horse for a detailed analysis, you can refer to the link to read, not repeated here.

Figure 5-10 Execution of Shellcode ‑

6.IoCs

IoCs

De7cff093920a47ecaffe6566e3bf66c

0d6ae3ecebf610f5718b7c43ae14239f

8a1c57092616a9bf581e4b89a280b0b9

Hxxps: / / portal-test.xperiorlist.com / DCQxHdrDFYuN76.toc

Hxxps: / / emilie.businessup.be / wp-inclusions / chn / OSEYggrugye738uhddwhudrwhJHD.php

Appendix I: Link for reference

[1] Watch out for new variants of the AgentTesla commercial keylogger

Https: / / www.antiy.cn / research / notice & report / research _ report / 20180507.html

[2] The analysis of new varieties of commercial secret Trojan horse AgentTesla

Https: / / www.antiy.cn / research / notice & report / research _ report / 20210812.html
