Coffee Ransomware Remains Active, Antiy Releases Decryption Tool
The original report is in Chinese, and this version is an AI-translated edition.
1.Overview
Recently, Antiy CERT (a member of the CCTGA Ransomware Prevention and Response Working Group) has detected the continued activity of the Coffee ransomware targeting China. This ransomware first appeared in January 2022 and is mainly spread through phishing emails and QQ group files.
The Coffee ransomware attackers crafted phishing emails and ransom notes in Chinese and provided detailed Chinese tutorials on how to purchase cryptocurrency in China to pay the ransom, highly targeting domestic users. The ransomware uses a “white and black” method to load malicious modules and employs ” DDR” (Dead Drop Resolvers) technology, exploiting legitimate web services to download subsequent malicious payloads and evade detection from security products. The ransomware also hijacks desktop shortcuts and further spreads through victims’ QQ chat tools.
Antiy Intelligent Endpoint Protection System (IEP) can effectively detect and kill the ransomware and provide practical protection for user terminals. Antiy has now released a decryption tool for the ransomware.
Special thanks to:
Harbin Institute of Technology Cybersecurity Emergency Response Team
CCTGA Ransomware Prevention and Response Working Group
2.ATT&CK Mapping Diagram Corresponding to the Incident
The distribution of technical characteristics of the attack samples is as follows:

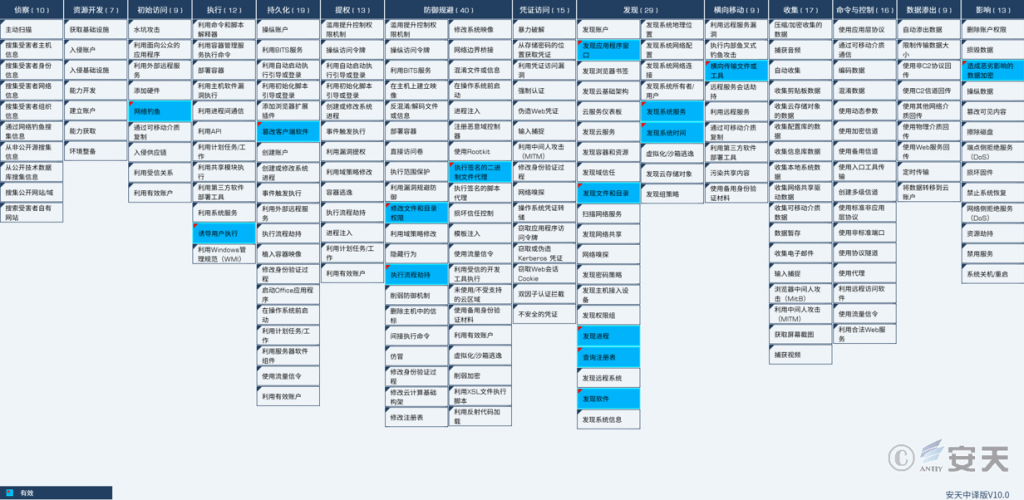

Figure 2‑1
The following table lists the techniques used by the attackers in this incident:
Table 2‑1
| ATT&CK Stages/Categories | Specific Behavior | Notes |
| Initial access | Phishing | Spread through phishing emails and QQ group files |
| Execute | Induce users to execute | Induce users to execute |
| Persistence | Tamper with client software | Tamper with client shortcuts |
| Defense evasion | Modify file and directory permissions | Set file permissions |
| Defense evasion | Execute process hijacking | Use legitimate executable files to load malicious DLLs |
| Defense evasion | Execute signed binary agent | Leverage signed binary proxies |
| Discover | Discover application window | Discover QQ window |
| Discover | Discover files and directories | Discover files and directories |
| Discover | Discover process | Found security software and QQ processes |
| Discover | Query the registry | Query the registry |
| Discover | Discover software | Found a list of installed software |
| Discover | Discover system services | Discover system services |
| Discover | Discover system time | Discover system time |
| Lateral movement | Lateral transfer of files or tools | Lateral spread through QQ |
| Influence | Data encryption with adverse effects | Encrypt data |
3.Attack Process
Attackers drop phishing email attachments or QQ group files in compressed format, tricking victims into decompressing and executing the shortcut contained within. The shortcut uses Unicode encoding to conceal the actual malicious program, csrts.exe. Once executed, the malicious program uses a “white and black” scheme, using the white file csrts.exe to load the malicious module Myou.dll. It then downloads and loads subsequent malicious payloads from hosting platforms and other sources, performing malicious actions such as file encryption, shortcut hijacking, and spreading through the victim’s QQ account.

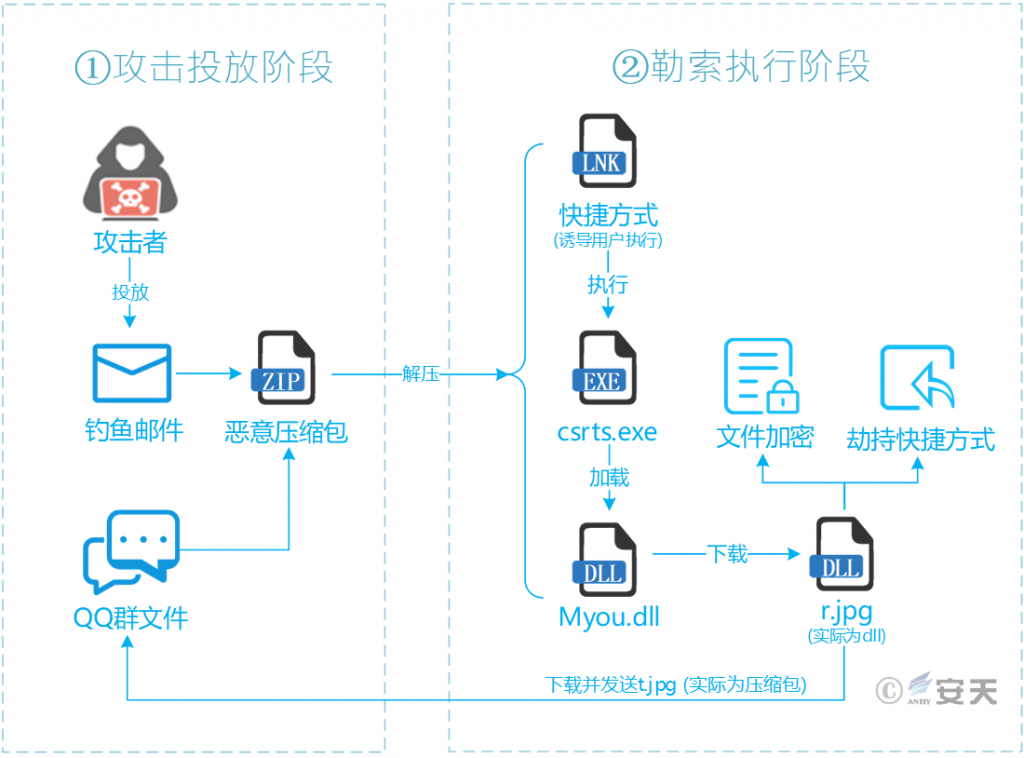

Figure 3‑1
4.Protection Recommendations
For this ransomware, Antiy recommends taking the following protective measures:
4.1 Enterprise Protection
- Install terminal protection: Install anti-virus software. It is recommended that Antiy IEP users enable the ransomware protection tool module (enabled by default);
- When receiving QQ group files, confirm that the sender is reliable. It is recommended to execute suspicious files in a sandbox environment and only use the host after ensuring safety.
- Deploy an Intrusion Detection System (IDS): Deploy traffic monitoring software or equipment to facilitate the discovery and tracing of malicious code. Antiy Persistent Threat Detection System (PTD) uses network traffic as the detection and analysis object, and can accurately detect a large amount of known malicious code and network attack activities, effectively discovering suspicious network behavior, assets, and various unknown threats;
- Disaster recovery plan: Establish a security disaster recovery plan to ensure that the backup business system can be quickly activated;
- Antiy Service: If you are attacked by malware, it is recommended to isolate the attacked host in a timely manner and protect the site while waiting for security engineers to investigate the computer; Antiy 7*24 hour service hotline: 400-840-9234.
4.2 Email Protection
- When receiving emails, confirm whether the source is reliable and avoid opening attachments in suspicious emails;
- It is recommended to execute suspicious files in a sandbox environment and only execute them on the host when safety is ensured. The Antiy Persistent Threat Analysis System (PTA) uses a combination of deep static analysis and sandbox dynamic loading and execution to effectively detect, analyze and identify various known and unknown threats.
Antiy Intelligent Endpoint Protection System (IEP) can effectively detect and kill the ransomware and provide practical protection for user terminals.

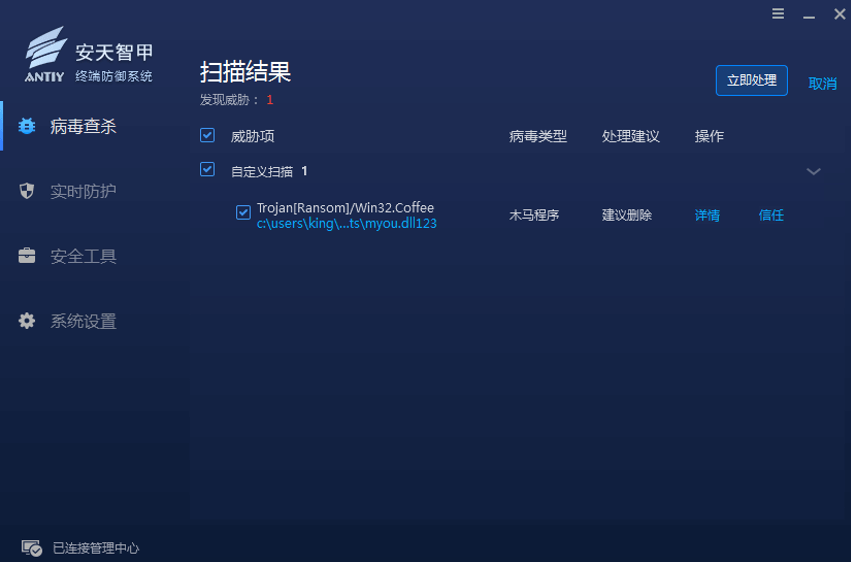

Figure 4‑1 Antiy IEP provides effective protection

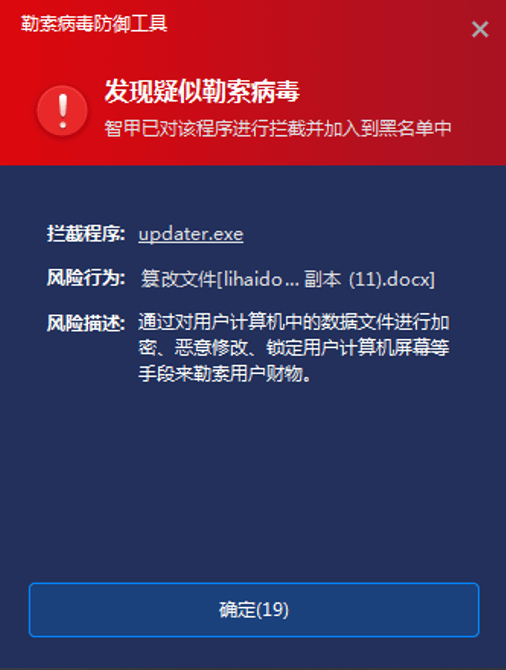

Figure 4‑2 Antiy IEP blocks encryption behavior
5.Ransomware Overview
Table 5‑1
| Appearance time | January 2022 |
| Encryption algorithm | RC4+RSA |
| Encryption system | Windows |
| Encrypted file naming method | Original file name.coffee.The first four characters of the key.Original file suffix |
| Contact | Operation instructions in the ransom letter |
| Encrypted file types | Encrypt files of specified formats (specific formats include * .docx , * .doc , *.docm , * .pdf, * .xlsx , etc.) |
| Ransom currency and amount | 500 worth of ZEC (a digital currency called zerocoin) |
| Is it targeted? | No |
| Can it be decrypted? | Can |
| Whether it is transmitted on the intranet | No |
| Ransom letter interface |  |
6.Sample Analysis
6.1 Sample Tags
Table 6‑1 Sample tags
| Malicious code name | Trojan[ Ransom]/Win32.Coffee |
| Original file name | Myou.dll |
| MD5 | 313BC92DCE801C2EC316C57EA74DD92A |
| Processor architecture | Intel 386 or later processors and compatible processors |
| File size | 30.50 KB (31,232 bytes ) |
| File format | BinExecute /Microsoft.DLL[:X86] |
| Timestamp | 2072-11-29 00:40:31 (forged) |
| Digital signature | None |
| Packer type | None |
| Compiled language | .NET |
| VT first upload time | 2022-02-18 05:28:53 |
| VT test results | 31/67 |
6.2 Use “DDR” (Dead Drop Resolvers) Technology to Download Malicious Functional Payloads
The compressed file uses a shortcut as bait, and the shortcut uses Unicode encoding to hide the actual target file path csrts.exe. Double-clicking the shortcut will call the program to run.

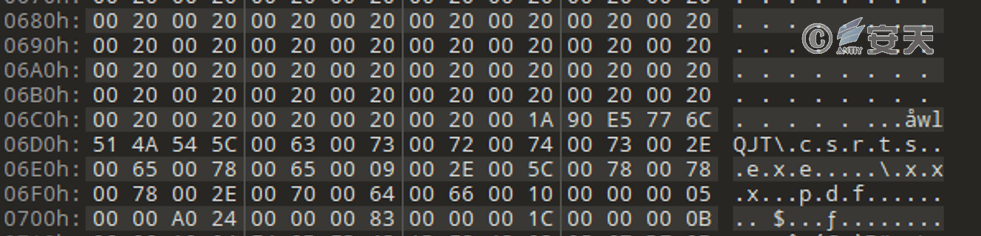

Figure 6‑1 Shortcut to execute malicious program
Using the “white and black” method, the white file csrts.exe with a digital signature is used to load the malicious module Myou.dll.

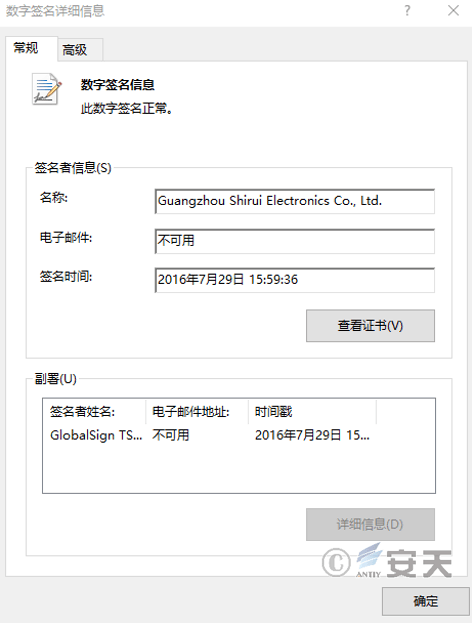

Figure 6‑2 Digital signature of csrts.exe
Copy yourself and Myou.dll to the %Appdata% directory and execute.

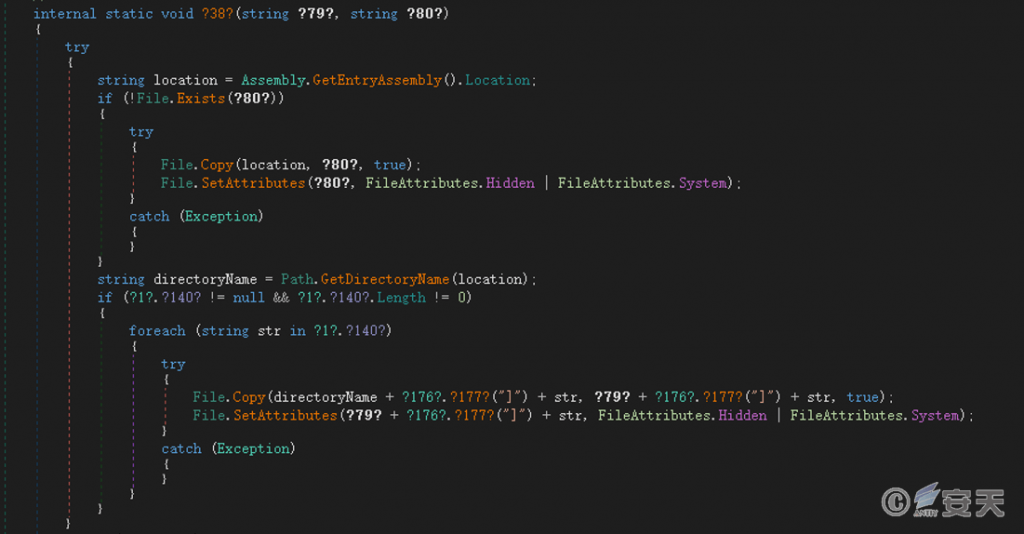

Figure 6‑3 Copy itself to the %Appdata% directory
Using “DDR” (Dead Drop Resolvers) technology, it downloads and loads RTLib.dll from Gitee (a Git-based code hosting platform in China) and IPFS (a decentralized file storage system). This file is the subsequent malicious function payload.

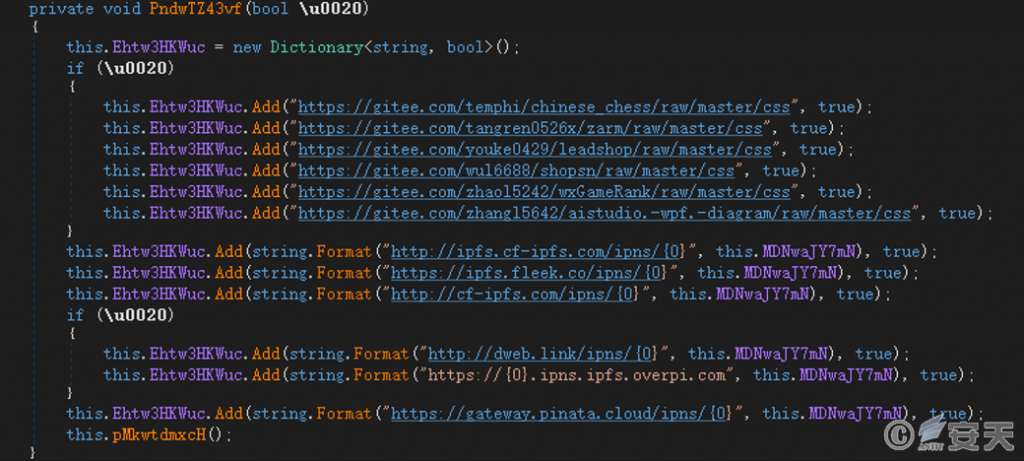

Figure 6‑4 Download and load the module

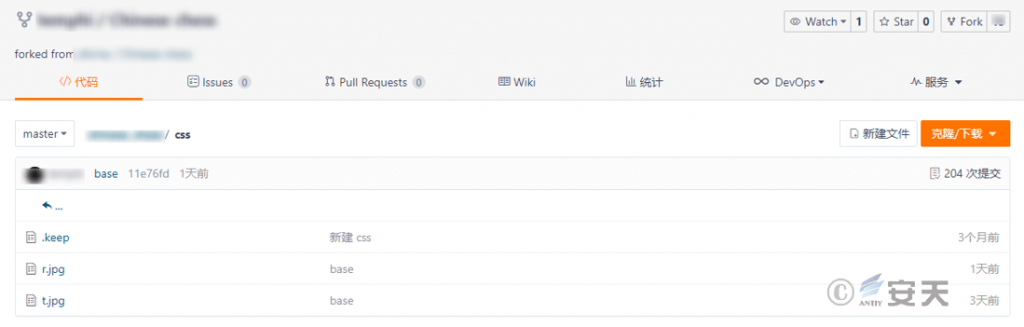

Figure 6‑5 Malicious payload stored by attackers on the Gitee platform
The sample will visit https://visitor-badge.laobi.icu/badge?page_id=dayXXX.nobody.com to count the number of victims. According to the website data, the number of infections surged on February 18, 2022.

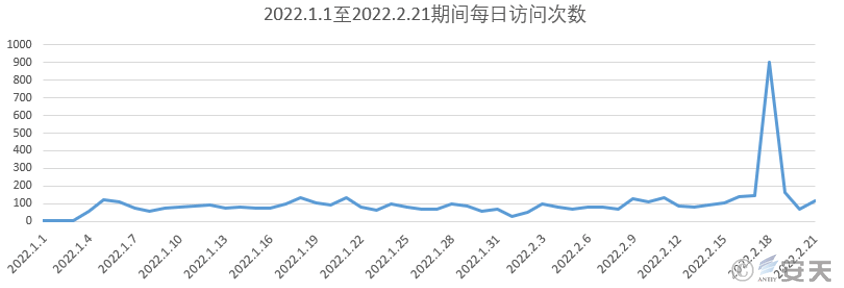

Figure 6‑6 Statistics of the number of victims from January 1, 2022 to February 18, 2022
6.3 Use RC4 Algorithm for Data Encryption
If the “*-RSA.txt” file exists in the %Appdata% directory, the initial string is read from the file. Otherwise, a random lowercase GUID string is generated and saved to “<Generate another uppercase GUID > – RSA.txt “. An 8-character encryption key is then generated based on this string. The first four characters of the key will form the name of the encrypted file.

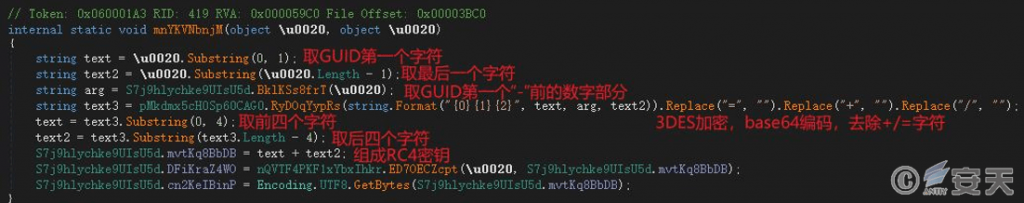

Figure 6‑7 Generate encryption key
If any of the following conditions is met, the sample will perform file encryption:
- There is a security software process;
- Receive encrypted instructions from the attacker;
- The current time is greater than or equal to 4 days from the creation time of the %Appdata%\*-RSA.txt file.

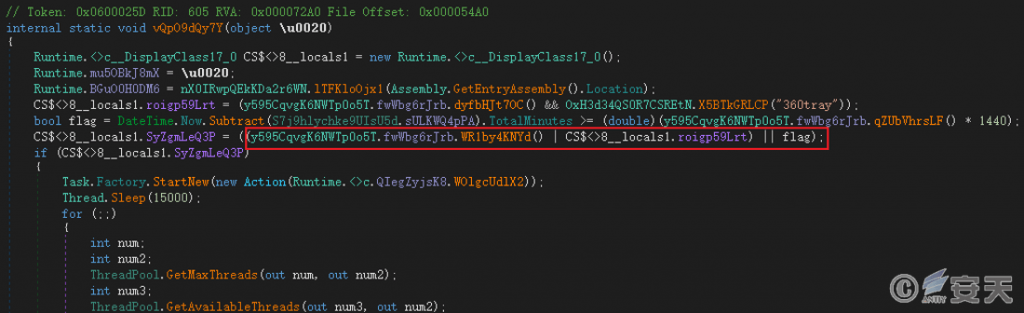

Figure 6‑8 File encryption prerequisites
The file is encrypted using the RC4 symmetric encryption algorithm. The sample encrypts only the first 2,097,152 bytes (2 MB) of data in the file. After encryption, two bytes (0x24 and 0x21) are added to the end of the file as a marker.

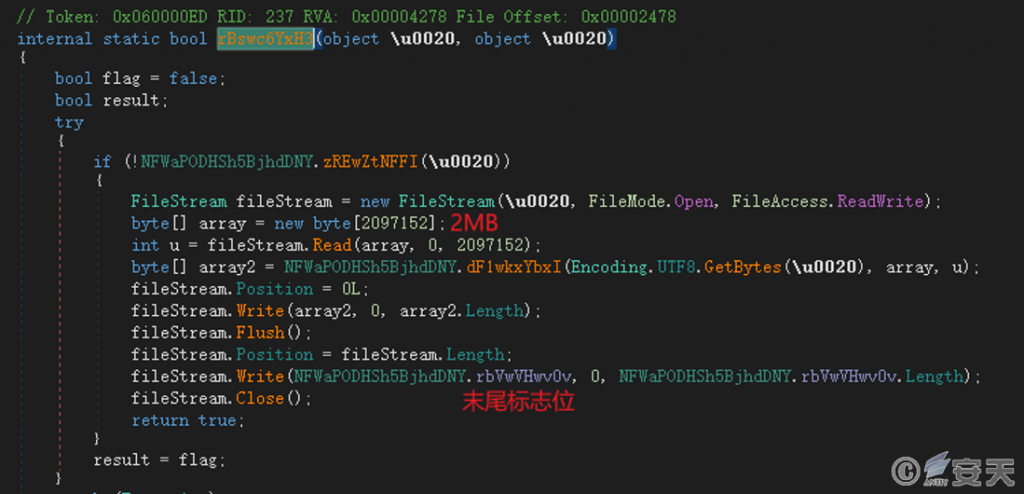

Figure 6‑9 Encrypted files
The encryption function is only applicable to files with specified suffixes, as shown in the following table.
Table 6‑2 Encrypted file suffix
| .key | .keys | .pfx | .pem | .p12 | .csr |
| .gpg | .aes | .docx | .doc | .docm | |
| .xlsx | .xls | .xlsm | .xlsb | .ppt | .pptx |
| .pptm | .wps | .et | .dps | .csv | .mdb |
| .dbf | .dat | .db | .sav | .sas | .sas7bdat |
| .m | .mat | .r | .rdata | .psd | .cdr |
| .ai | .jpg | .3pg | .mp4 | .mov | .dwg |
| .dxf | .vsd | .lst | .ba | .rep | .rbk |
| .ais | .aib | .dbb | .mdf | .ldf | .myd |
| .frm | .myi | .ibd | .sql | .sqlite | .fdb |
| .gdb | .rdb | .aof | .udb | .udbx | .wt |
| .wl | .wp | .shp | .cs | .java | .cpp |
| .pas | .asm | .rar | .zip |
The encrypted file name format is: original file name.coffee.the first four characters of the key.the original file extension. For example, the encrypted file “Speech.docx” may be named “Speech.coffee.UV2v.docx”.

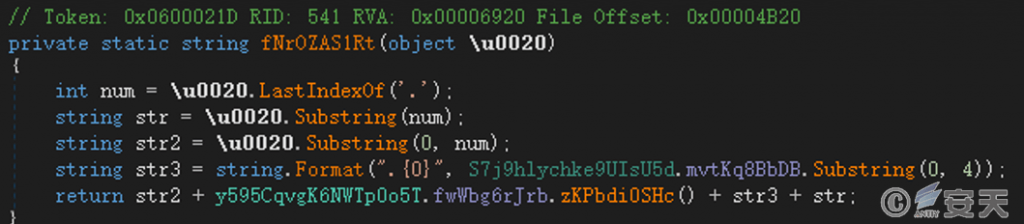

Figure 6‑10 Generate encrypted file name
Get the RSA public key from the XML string and encrypt the RC4 key to be used as the decryption password in the ransom note.

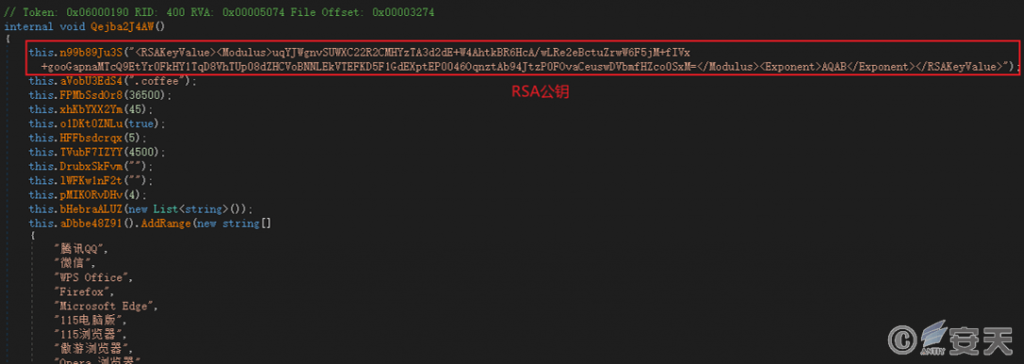

Figure 6‑11 RSA public key
Generate a ransom note named “Read Me.RSA.txt” in the path of the encrypted file. The ransom note includes instructions and the decryption password required for decryption.
Figure 6‑12 Ransom note
The Coffee ransomware demands ZEC coins worth 500 USDT (Tether, a virtual currency that pegs cryptocurrency to the legal currency US dollar) from victims, and provides a detailed payment guide in Chinese to instruct victims on how to install digital wallets, purchase virtual currency, pay the ransom, etc.

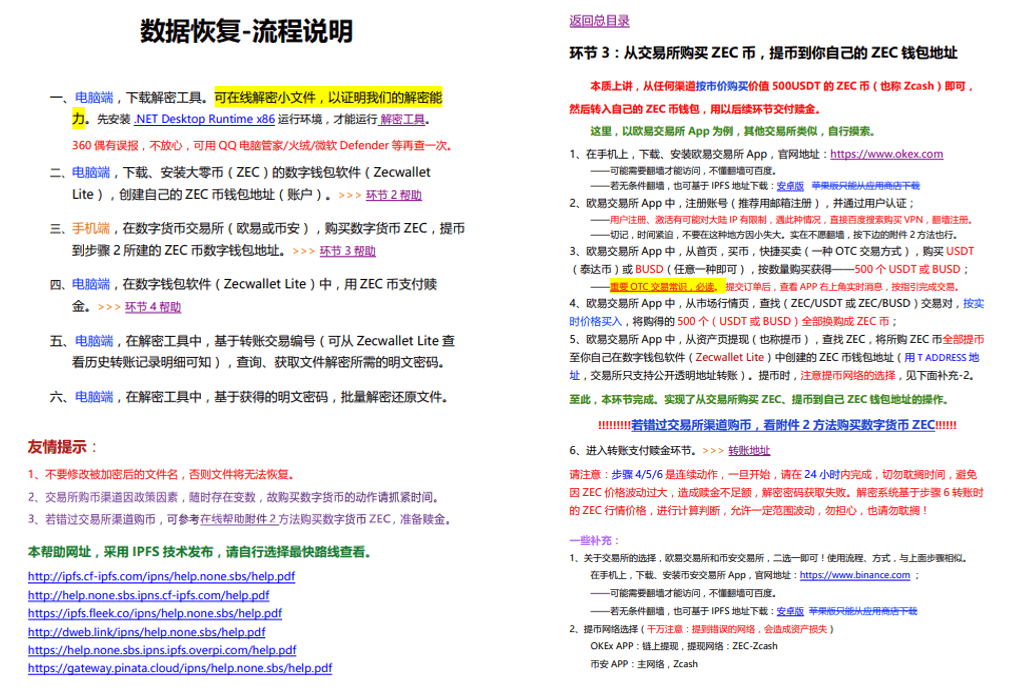

Figure 6‑13 Instructions provided in the ransom note
6.4 Achieving Persistence by Hijacking Desktop Shortcuts
The sample copies itself to the program directory pointed to by the normal desktop shortcut. The file name is the normal program name followed by the invisible characters “\u200e”, and the normal shortcut is modified to point to this file. When the user executes the program from the desktop shortcut, the malicious program is actually executed. (This feature was not enabled during analysis)

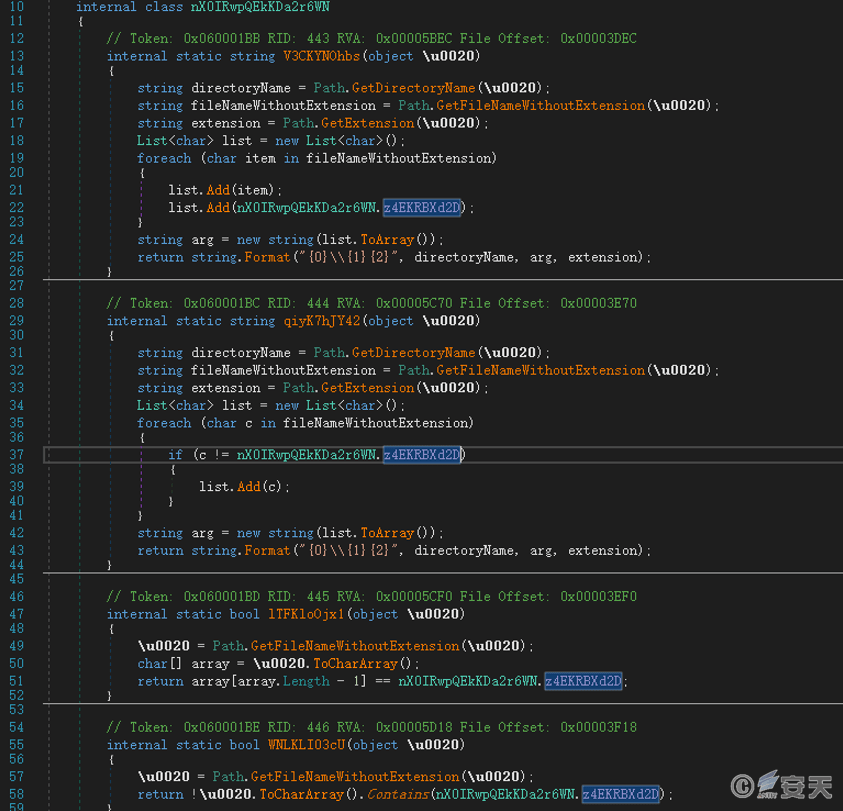

Figure 6‑14 Modify shortcut
The list of programs that hijack shortcuts is as follows.
Table 6‑3 List of infected programs
| Tencent QQ | WPS Office | Firefox | Microsoft Edge | |
| 115 PC version | 115 Browser | Maxthon Browser | Opera browser | Xiaozhi Dual-core Browser |
| Tencent Video | Youku | iQiyi | Baidu Netdisk | Alibaba Cloud Disk |
| Thunder | QQ Music | NetEase Cloud Music | Kugou Music | Kuwo Music |
| Tencent Meeting | TIM | DingTalk | Aliwangwang | Youdao Cloud Notes |
| Visual Studio Code | CAJ Viewer 7.2 | NetEase Youdao Dictionary | Fast PDF Reader | Kingsoft PDF Standalone Edition |
| Tencent Classroom | Yuanfudao | Xueersi Online School | Rain Classroom | Himalayas |
| Quick Edit | Love Editing | Meitu XiuXiu | Light and shadow | Look at the beautiful pictures |
| Storm Video 16 | Huya Live | Douyu Live | Steam | Skype |
| Google Chrome | CCTV Video | X Mind 8 Update 9 | QQ Video | QQ Games |
| CAD Mini Viewer | Acrobat Reader DC | Magic Hands of Light and Shadow | Picasa 3 | We Game |
| Kingsoft PowerWord 2016 | Kuwo Karaoke | Meitu Xiuxiu batch processing | Thunder Video | Xiaoyao Simulator |
| Google Chrome |
6.5 Expand the Scope of Dissemination by Sending QQ Files and Messages
The sample will attempt to place the QQ window in the foreground, simulate QQ file and message sending operations, and use the QQ software in the victim’s system to spread further.

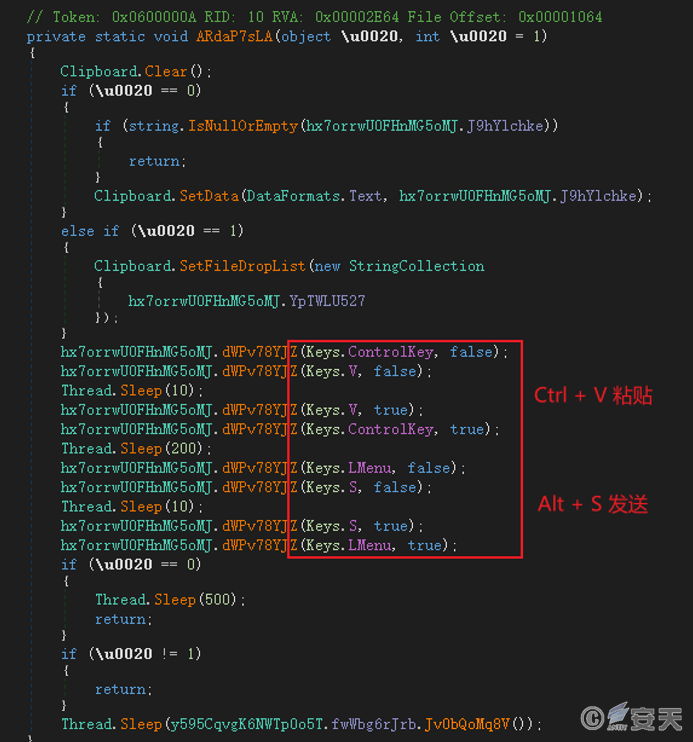

Figure 6‑15 Simulate sending QQ messages
The QQ files and messages sent are as follows.

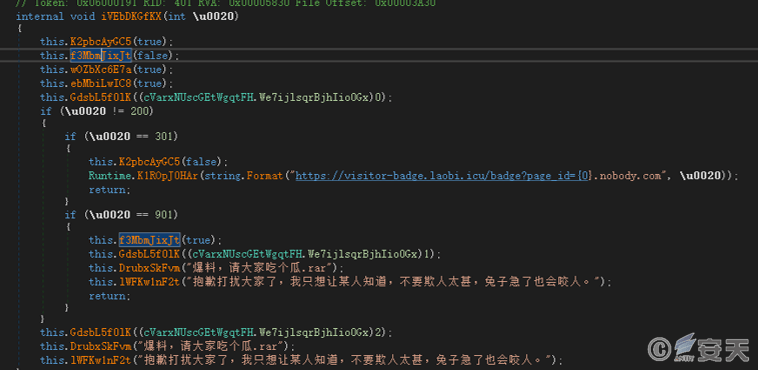

Figure 6‑16 QQ files and messages sent
7.IoCs
| MD5： |
| AA877144EDCEF2E8D5A8D37D7EA0D4B6(csrts.exe) |
| 313BC92DCE801C2EC316C57EA74DD92A(Myou.dll) |
| D88075B52E78EF0A1CA1C4258031D5A9(r.jpg) |
| ZEC payment address: |
| zs1rwqlxjhjaya307y2ejydheq09cvhj2p4ssgnwcv2apqvryh5e48jt29sr9uy3s3tek3s2e4u6l4 |
| URL： |
| https://gitee.com/temphi/chinese_chess/ |
| https://gitee.com/tangren0526x/zarm/ |
| https://gitee.com/youke0429/leadshop/ |
| https://gitee.com/wul6688/shopsn/ |
| https://gitee.com/zhaol5242/wxGameRank/ |
| https://gitee.com/zhangl5642/aistudio.-wpf.-diagram/ |
| http://ipfs.cf-ipfs.com/ipns/none.sbs/* |
| https://ipfs.fleek.co/ipns/none.sbs/* |
| http://cf-ipfs.com/ipns/none.sbs/* |
| https://none.sbs.ipns.ipfs.overpi.com/* |
| http://dweb.link/ipns/none.sbs/* |
| https://gateway.pinata.cloud/ipns/none.sbs/* |
