Analysis of Phishing Attack Activities Carried out by the SwimSnake Black Industry Gang Using Malicious Documents

1.Overview

The “SwimSnake” black production gang has been active since the second half of 2022, launching a large number of fishing attacks and fraud activities against domestic users. This type of black spread malicious program variety, frequent replacement of kill-free means and infrastructure, attack targets involved in a wide range of industries. Recently, Antiy CERT has detected that the “SwimSnake” black product gang spread malicious Excel files against finance and taxation personnel, and induced users to click the hyperlinks to jump to fishing websites and download malicious programs from them.

After the malicious program is executed, the malicious Index. asp file is loaded, and then the malicious AutoHotKey, Python script and two Shellcodes are downloaded and executed in several stages, finally the remote control Trojan is executed in the memory of the victim computer. The remote control Trojan has the function of keylogger, clipboard monitor, screen capture and so on, and supports receiving and executing many kinds of remote control commands. “SwimSnake” black property gang attackers will usually use remote control Trojan horse to control the victim’s computer in the instant messaging software, impersonating the identity of the victim for subsequent attacks, fraud activities.

The “SwimSnake” gang is still frequently updating malware, kill-free methods and related infrastructure, and a certain number of users are still attacked and implanted into remote-controlled Trojans every day. Antiy CERT advises users to be vigilant when receiving files, and avoid clicking on executable programs, scripts, documents and other files whose security is unknown, so as to avoid suffering from “SwimSnake” attacks and causing unnecessary losses.

It is proved that the Terminal Defense System (IEP) of Antiy can effectively kill the remote control Trojan.

See Section IV for the inspection plan and Section V for the relevant protection suggestions.

2.Technical review

In this attack, the decoy file released by the attacker was an Excel file named “(June) Steal-Misinvolvement-Tax-Violation Enterprise List Published .xlsx,” which induced users to click “Click to view.” In order to jump to a fishing website.

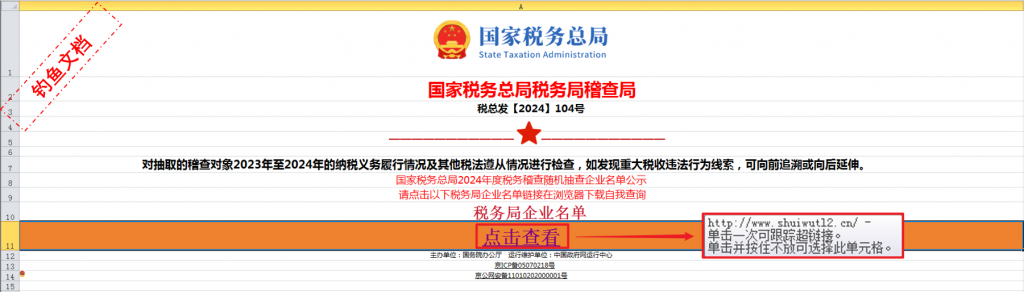

Figure 2-1 Decoy file


As shown in the figure below, the user will download a compressed file named “List of Enterprises under Key Audit – Terminal. zip” after clicking any button in the website. It contains two documents: List of key audit enterprises – Terminal. exe, Index.asp.

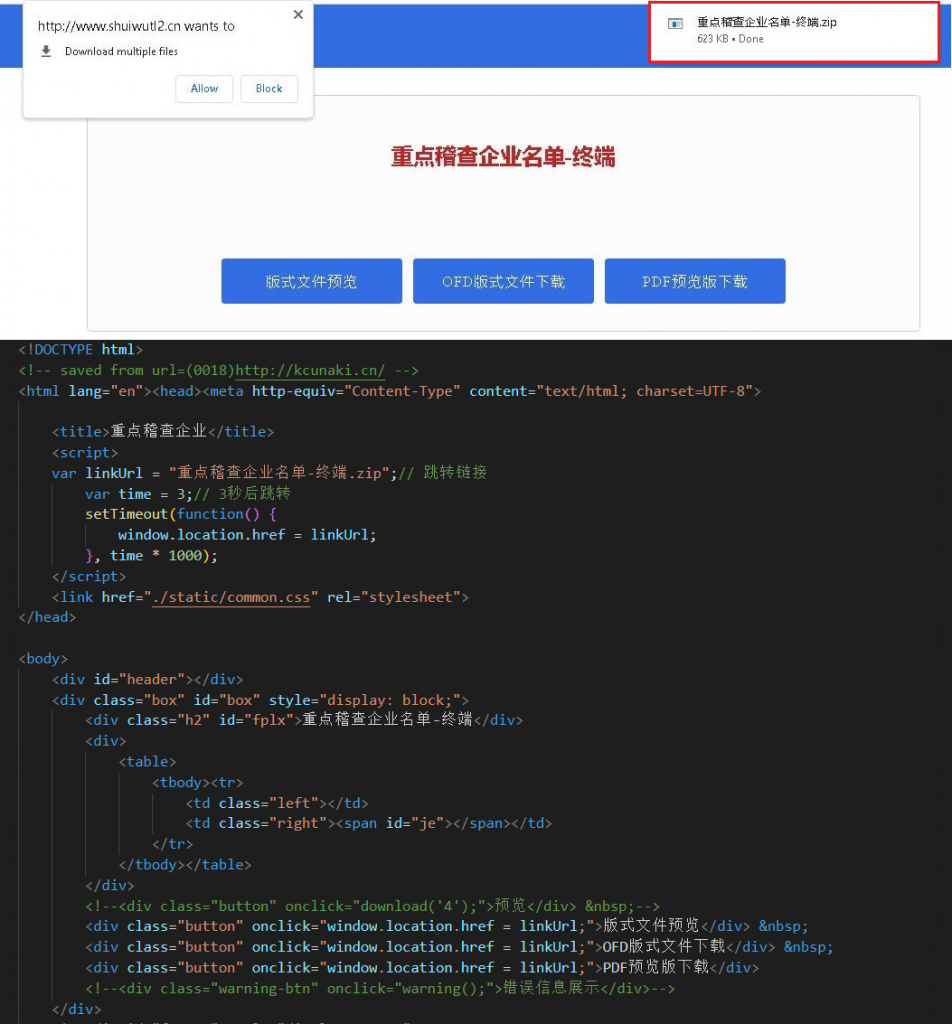

Figure 2-2 A phishing website

Key Audit Enterprise List – Terminal. exe is a server tool called “SmartServer Intelligent Port Rapid Version,” which will load the Index. asp file in the same path after running. The Index. asp file contains malicious code, and after execution, the malicious AutoHotKey, Python script and two Shellcodes are downloaded in several stages, and finally the remote control Trojan named “Login Module .dll” is executed in memory. The remote control Trojan has the basic functions of keyboard recording, clipboard monitoring, screen capture and so on, and supports receiving and executing various remote control commands. The overall attack flow is shown in the figure below.

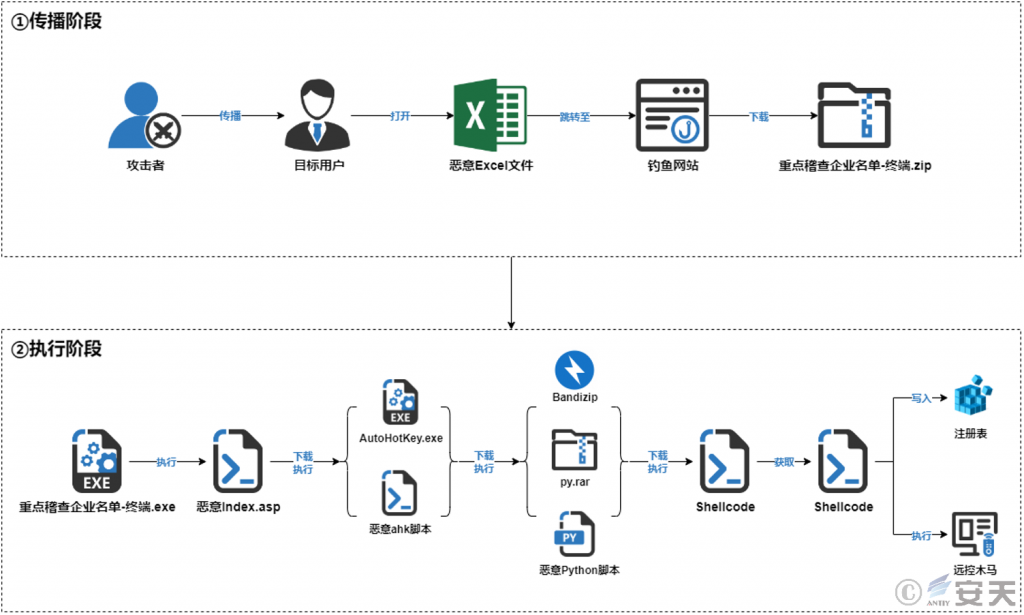

Figure 2-3 Flow chart of attack

3.Sample analysis

3.1 List of key audit enterprises – Terminal. exe, Index.asp

The “List of Enterprises under Key Audit – Terminals. zip” package of the phishing website contains two files: List of Enterprises under Key Audit – Terminal. exe, Index.asp.

Figure 3-1 Files in a Compressed Package

Key Audit Enterprise List – Terminal. exe is a server tool called “SmartServer Intelligent Port Rapid Version,” which will load the Index. asp file in the same path after running.

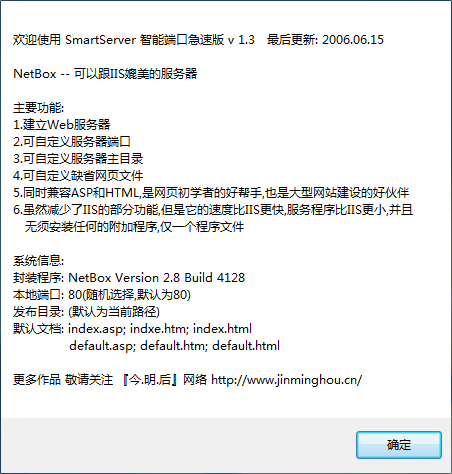

Figure 3-2 Program Description

The attacker hides the malicious code in the Index. asp file. the malicious code downloads the file from the attacker’s server and saves it to a designated folder in the victim’s host, and uses the cmd command to execute the next stage of attack payload.

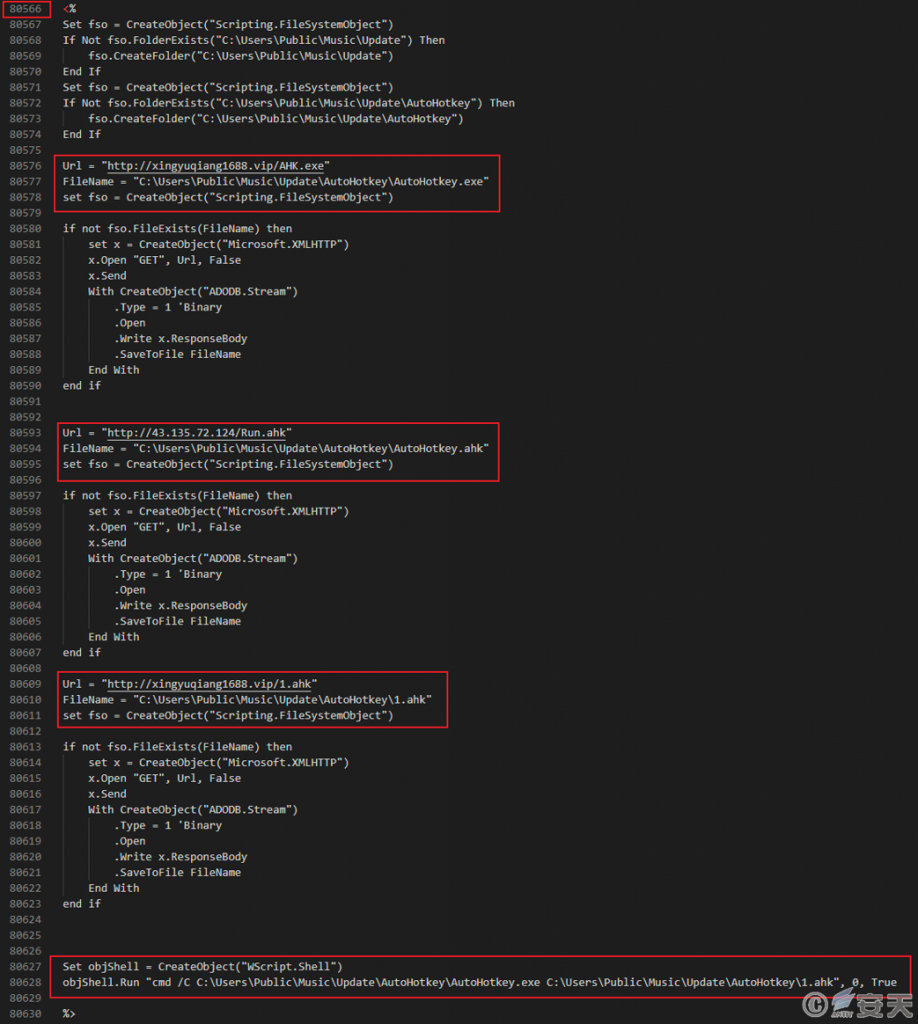

Figure 3-3 Malicious code in the Index. asp file


The file downloaded by the malicious code is shown in the following table.

Table 3-1 Files downloaded by malicious code

Download the file Save path
Hxxp: / / xingyuqiang1688 [.] vip / AHK.exe C:\ Users\ Public\ Music\ Update\ AutoHotkey\ AutoHotkey.exe
Hxxp: / / 43.135.72 [.] 124 / Run.ahk C:\ Users\ Public\ Music\ Update\ AutoHotkey\ AutoHotkey.ahk
Hxxp: / / xingyuqiang1688 [.] vip / 1.ahk C:\ Users\ Public\ Music\ Update\ AutoHotkey\ 1.ahk

3.2 Malicious AutoHotKey script

Autohotkey is a scripting language for creating automatic keyboard and mouse operation on Windows platform. an attacker uses AutoHotKey to execute coded malicious ahk scripts and obtain the next attack payload from the server. And create a scheduled task for AutoHotKey. exe.

Table 3-2 Files downloaded by malicious AutoHotKey script

Download the file

Save path

Remarks

43.135.120 [.] 185 / py.rar

C:\ Users\ Public\ Music\ python

The environment needed to run Python scripts

43.135.72 [.] 124 / qd.jpg

C:\ Users\ Public\ Music\ python

Malicious Python script files

Xingyuqiang1688 [.] vip / resource.data

C:\ Users\ Public\ Bandizip\ data

Files Related to Bandizip Compression Software

Xingyuqiang1688 [.] vip / web32.exe

C:\ Users\ Public\ Bandizip\ data

Xingyuqiang1688 [.] vip / English.lang

C:\ Users\ Public\ Bandizip\ langs

Xingyuqiang1688 [.] vip / ark.x64.dll

C:\ Users\ Public\ Bandizip

Xingyuqiang1688 [.] vip / Bandizip.exe

C:\ Users\ Public\ Bandizip

Xingyuqiang1688 [.] vip / conFigureini

C:\ Users\ Public\ Bandizip

The attacker uses the Bandizip compression software to decompress py.rar using the password “Ly,” which contains the environment the Python script needs to run in.

3.3 Malicious Python scripts

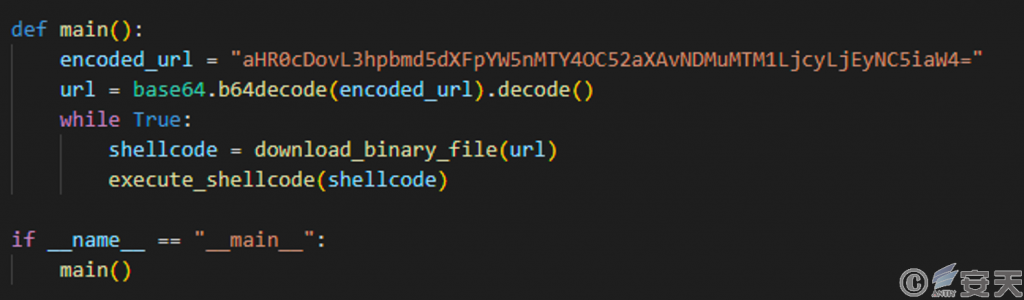

Qd. jpg is a Shellcode loader written in Python that retrieves Shellcode from a specified URL encoded in Base64 and writes it to memory for execution.

Figure 3-4 main content of qd. jpg


3.4 Shellcode executes the PE file

This Shellcode is used to execute PE files in its code in memory.

Figure 3-5 PE file embedded in Shellcode


The PE file inverts the hard-coded string and parses the C2 configuration information from it.

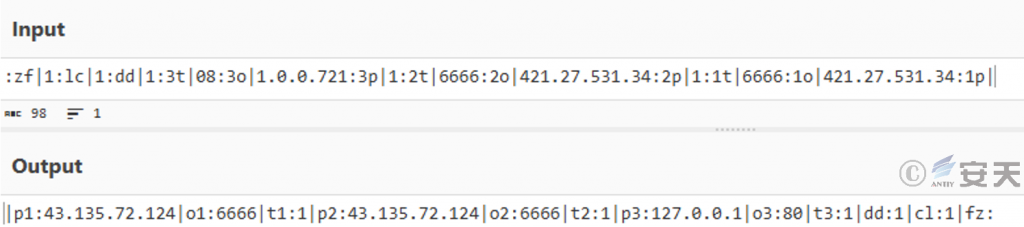

Figure 3-6 C2 Configuration Information in PE File


The PE file connects with the C2 server, obtains the Shellcode of the next stage and writes it into the registry HKEY _ CURRENT _ USER\ Console\ 0\ d33f351a4aeea5e608853d1a56661059.

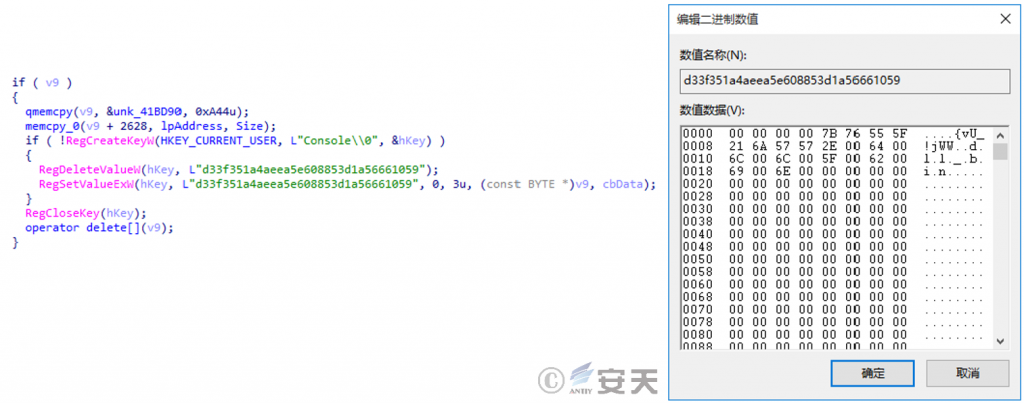

Figure 3-7 Write Shellcode contents to the registry

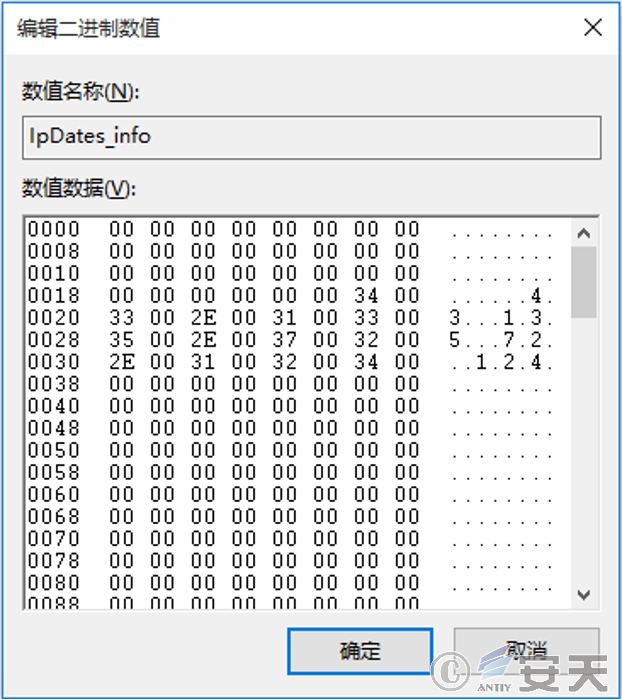

The PE file then reads the Shellcode in the registry and executes it in memory, and writes the C2 information to HKEY _ LOCAL _ MACHINE\ SOFTWARE\ IpDates _ info.

Figure 3-8 Write C2 information in the registry


3.5 Final load

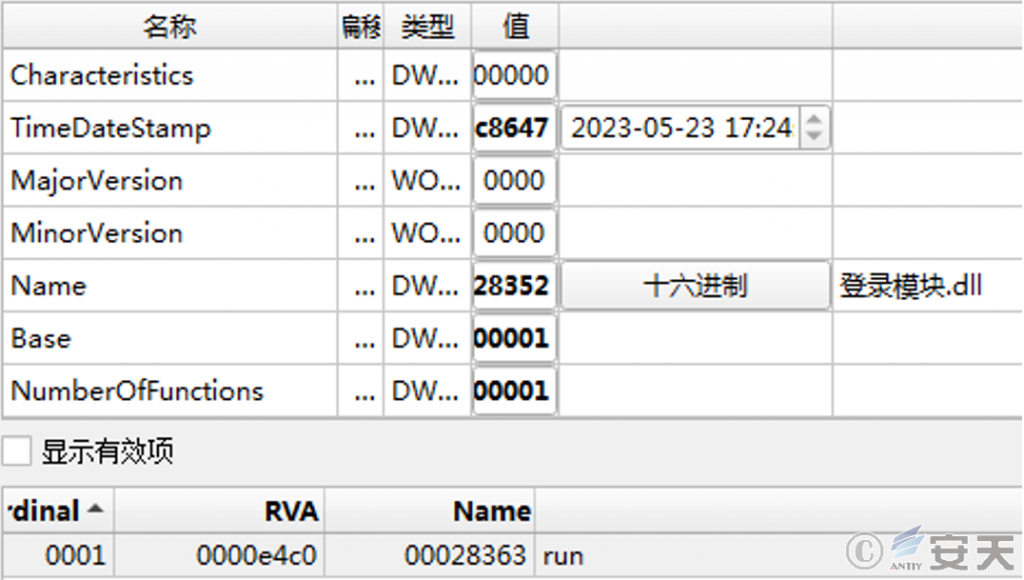

The Shellcode executes the PE file in the memory. the PE file is a DLL file. the original name is called “Login Module. Dll,” and the export function is run.

Figure 3-9 Final load information


The DLL file is remote control Trojan, with keyboard recording, clipboard monitoring, screen capture and other basic functions, and support receiving and executing a variety of remote control commands.

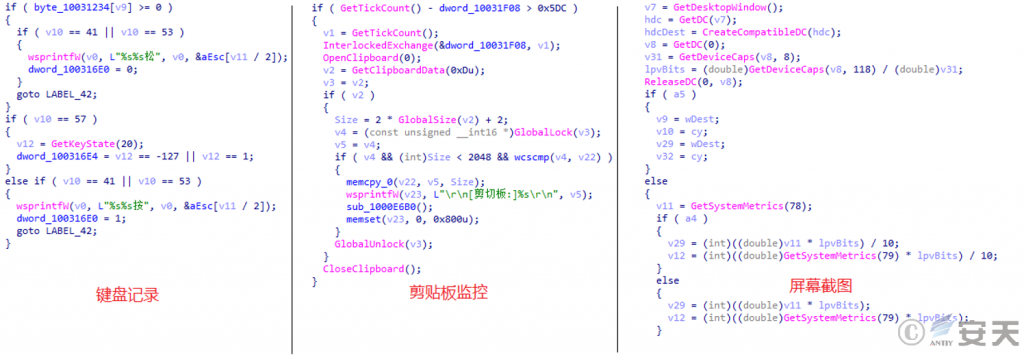

Figure 3-10 Basic functions of the remote control Trojan horse


4.Inspection plan

4.1 Documents

File Path
C:\ Users\ Public\ Music\ Update\ AutoHotkey\ AutoHotkey.exe
C:\ Users\ Public\ Music\ Update\ AutoHotkey\ AutoHotkey.ahk
C:\ Users\ Public\ Music\ python\ qd. zip
C:\ Users\ Public\ Music\ python\ qd. jpg
C:\ Users\ Public\ Music\ python\ py.rar
C:\ Users\ Public\ Bandizip

4.2 Registration Form

Registration Form Content
Hkey _ CURRENT _ USER\ Console\ 0\ d33f351a4aeea5e608853d1a56661059 Refer to Figure 3-7
Hkey _ LOCAL _ MACHINE\ SOFTWARE\ IpDates _ info Refer to Figure 3-8

4.3 Process

Process name Remarks
List of key audit enterprises – Terminal. exe Smartserver Smart Port Rapid Version v 1.3
Python. exe C:\ Users\ Public\ Music\ python\ pythonw.exe

4.4 Planned tasks

Name of scheduled task Path to start program
Ahk C:\ Users\ Public\ Music\ Update\ AutoHotKey\ AutoHotKey.exe

4.5 Network

IoCs
Hxxp: / / www.shuiwutl2 [.] cn
Hxxp: / / xingyuqiang1688 [.] vip / AHK.exe
Hxxp: / / 43.135.72 [.] 124 / Run.ahk
Hxxp: / / xingyuqiang1688 [.] vip / 1.ahk
Hxxp: / / 43.135.120 [.] 185 / py.rar
Hxxp: / / 43.135.72 [.] 124 / qd.jpg
Hxxp: / / xingyuqiang1688 [.] vip / resource.data
Hxxp: / / xingyuqiang1688 [.] vip / web32.exe
Hxxp: / / xingyuqiang1688 [.] vip / English.lang
Hxxp: / / xingyuqiang1688 [.] vip / ark.x64.dll
Hxxp: / / xingyuqiang1688 [.] vip / Bandizip.exe
Hxxp: / / xingyuqiang1688 [.] vip / conFigureini
Hxxp: / / xingyuqiang1688 [.] vip / 43.135.72.124.bin
43.135.72 [.] 124: 6666

5.Recommendations for protection

In response to such threats, Antiy suggested that enterprises enhance the security awareness of business personnel and reduce the possibility of the organization being attacked; deploy the Antiy terminal defense system to protect the system security in real time. Users who have not deployed Anticon may use the Anticon security threat screening tool for screening when they discover or suspect that they are attacked by the “SwimSnake” gang.

5.1 Enhance the safety awareness of business personnel

Enhance the security awareness of business personnel and reduce the possibility of the organization being attacked. When financial, customer service, sales and other personnel use instant messaging applications such as WeChat and corporate WeChat, they shall not be induced to download and run various files from unknown sources due to the nature of work and interests. The organization can consolidate the “First Line of Safety Defense” by selecting safety awareness training services.

5.2 Deploy Atriplex to strengthen the terminal file receiving and execution protection

Deploy the enterprise-level terminal defense system, and detect the unknown files received by the protection instant messaging software in real time. The ATZ-A terminal defense system uses the ATZ next-generation threat detection engine to detect unknown source files and prevent them from landing and running through the core-level active defense capability.

Figure 5-1 Antiy IEP terminal defense system prevents malicious files from landing on the ground


5.3 Use safety threat detection tool to detect snake threat

Found or suspected of being attacked by the “SwimSnake” gang: Remote control Trojans launched by the “SwimSnake” gang during the attack; Download the safety threat detection tool (https://vs2.antiy.cn, special detection tool for “snake swimming”) from the safety vertical response platform, and quickly detect and detect such threats in the face of unexpected security incidents and special scenarios. Because the attack load used by the “SwimSnake” gang is iterative faster, and the non-killing technology is continuously updated, in order to more accurately and comprehensively eliminate the threat existing in the victim host, It is suggested that the customer contact Antiy Emergency Response Team (CERT @ antiy.cn) to handle the threat after using the special inspection tool to detect the threat.

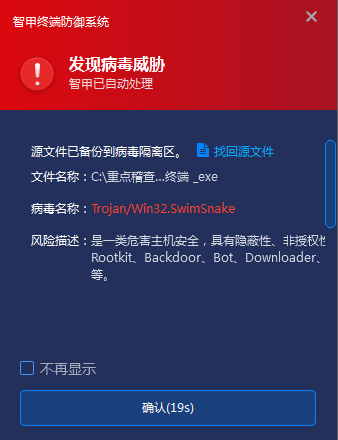

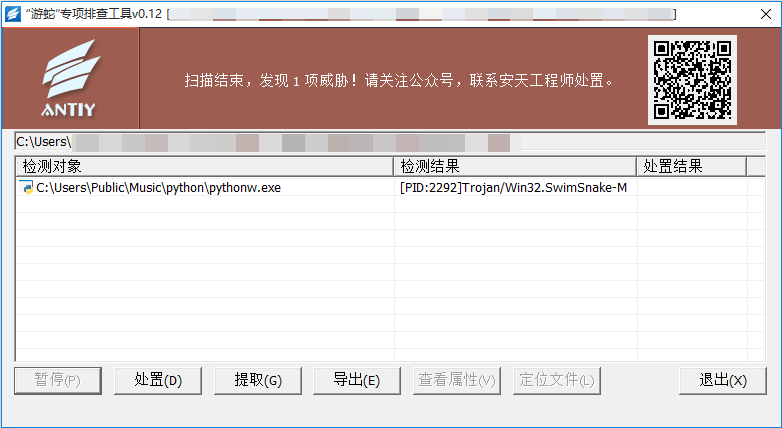

Figure 5-2 Threats detected using the “Snake Bound” special screening tool


6.IoCs

IoCs
Fa707089ecacc42d857460513b07dc1d
4b7fdcc9f207e2fcd1227b0f58f2631f
9c9253b0cb78ea2c5a76caeefdac5960
7b7a654e99f2b96c0ee114cd49bacf9a
539b6e91d0a92c999311e0d826315a07
49071b451329b2966769e35c7b75edc4
B91629da628f3ae8b22b361a0001b65c
Hxxp: / / www.shuiwutl2 [.] cn
Hxxp: / / xingyuqiang1688 [.] vip
43.135.72 [.] 124
43.135.120 [.] 185
43.135.72 [.] 124: 6666
