1.Overview

The DarkElephant Group is a suspected Indian APT attack group that primarily targets social activists, social groups, and opposition political parties within India. It also steals critical intelligence from military and political targets in neighboring countries, such as China and Pakistan. The DarkElephant Group’s primary attack method is to use Google/Yahoo email addresses or compromised email accounts to send highly deceptive spearphishing emails, tricking them into executing payloads containing sophisticated commercial remote control malware, equipped with multiple anti-virus tricks. Since at least 2012, the group has launched a decade-long cyberattack campaign targeting targets within India and neighboring countries, including China. Antiy CERT named the group “DarkElephant” due to its shady tactics in framing its targets within India (as evidenced by the executioners of the Bhima Koregaon case, which falsely implicated social activists), and the fact that its groupal structure remained largely hidden for over a decade. This article refers to the research results of other international security teams ^{[1] [2]} , and supplements the cyber attack activities of the “DarkElephant” group against important units in China. Finally, through tracing the source, it points out that the operators behind the group may be located in the Eastern Time Zone 5.5 (Indian National Standard Time).

2.Attack Organization Analysis

The overall characteristics of the “DarkElephant” group can be summarized as shown in Table 2 ‑1.

Table 2‑1 Summary of the characteristics of “DarkElephant” group

Group name	DarkElephant group
Group nature	Advanced Persistent Threats
Suspected source	India
Event time	The earliest can be traced back to 2012 , and there are still active
Attack intent	Obtain individual and groupal information and stealing intelligence
Target	Social activists, social groups, opposition political parties, etc. in India; Military and political goals of India’s neighboring countries such as China and Pakistan.
Attack methods	Spearfishing emails
Involved platforms	Windows, Android
Attack techniques	Memory decryption, memory injection, digital certificates, timestamp tampering, file volume filling
Bait type	Office documents, executable programs, self-extracting files, etc.
Exploiting vulnerabilities	CVE-2012-0158, CVE-2013-3906, CVE-2014-1761, CVE-2015-1641
Development language	C++, Visual Basic
Weapons and equipment	Mainly commercial remote control Trojans, such as NetWire, DarkComet, ParallaxRAT , GM Bot , etc.

In most observed attack cases, attackers prefer to use Google and Yahoo email accounts to disguise themselves as friends of recipients, celebrities, or well-known groups. The content of the emails is closely related to current affairs or the work of the recipients. The attackers have shown a strong and long-term interest in infiltrating and gaining information from social activists, social groups, and active figures from political parties such as the Communist Party of India (CPM) in India. They can conduct surveillance activities across multiple systems and platforms for many years against particularly important personal targets. As for military and political targets in other countries outside India, the attackers’ main purpose is to steal secrets and lurk.

Figure 2‑1 The sample document mentioned that organizations in India were producing timed explosives.

After correlating and combining the publicly available data, we have compiled a list of typical attack samples from the DarkElephant group, as shown in Table 2 ‑2.

Table 2‑2 Typical sample of “DarkElephant” group

Timestamp	Bait theme	Bait type
2012.4.26	None (keystroke logger)	EXE program
… …	… …	EXE program
2014.11.16	An investigative report on the Dalit family massacre in India	DOC vulnerability document
2014.11.28	Final draft of India’s Maoist path	DOC vulnerability document
2015.1.17	Indian Telugu magazine: Revolutionary Writers Association Literary and Cultural Monthly	DOC vulnerability document
2015.2.11	Indian Telugu magazine: Revolutionary Writers Association Literary and Cultural Monthly	DOC vulnerability document
2015.2.20	Indian Telugu magazine: Revolutionary Writers Association Literary and Cultural Monthly	DOC vulnerability document
2015.4.15	Judicial investigation report on the killing of Muslims by police in Telangana, India	DOC vulnerability document
2015.4.24	Indian Telugu magazine: Revolutionary Writers Association Literary and Cultural Monthly	DOC vulnerability document
2015.6.13	Nepali Maoist official Android app and Martyrs’ Day party documents	DOC vulnerability document, Android APP
2015.6.14	Indian Mukti Marg Android app and meeting minutes files	DOC vulnerability document, Android APP
2015.7.18	Maoist Report of the Communist Party of India	DOC vulnerability document
2015.12.20	Indian PUDR Annual Conference Data	DOC vulnerability document
2015.12.26	Bombay High Court Writ	RAR self-extractor
2016.6.13	Another victory for Maoism in India , from Kobad Ghandy	DOC vulnerability document
2016.6.13	Another victory for Maoism in India , from Kobad Ghandy	DOC vulnerability document (compressed package)
2016.6.13	Another victory for Maoism in India , from Kobad Ghandy	RAR self-extractor
2016.12.3	Naxal Maoist rebellion in India	RAR self-extractor
2017.2.28	Photos of Indian Rubina Dilaik actors	RAR self-extractor
2017.3.19	List of missing Hajj pilgrims from Pakistan	RAR self-extractor
2017.3.19	Pakistan Hajj flight list	RAR self-extractor
2019.3.18	India’s Supreme Court bans extremist group	RAR self-extractor
2019.3.23	United Nations Human Development Plan 2015	RAR self-extractor
2019.3.26	United Nations Human Development Plan 2015	RAR self-extractor
2019.3.30	Notice from the North Goa Branch, India	RAR self-extractor
2019.4.28	Thugs in India make timed explosives	RAR self-extractor
2019.5.19	Methodology for Surveying Indian Public Political Voices	RAR self-extractor
2020.1.6	Xinjiang, China	RAR self-extractor
2020.5.5	Pakistan Navy procurement plans	RAR self-extractor
2020.10.13	Chinese Navy diplomatic parcel damaged	RAR self-extractor
… …	… …	… …

In the samples above, the attackers employed various C2 operations techniques. As early as 2012, the DarkElephant group’s keystroke loggers sent stolen data to hardcoded email addresses. Later, when using various commercial Trojans to steal secrets, they initially registered free dynamic domain names such as *.ddns.net and *.zapto.org. After 2020, they began to register deceptively named C2 domains.

Besides demonstrating a relatively low cost in setting up and operating network infrastructure, none of the observed attack samples contained any attacker-designed, data-stealing programs. Instead, the attackers primarily relied on established commercial remote access tools such as NetWire, DarkComet, and ParallaxRAT. This capability is presumably tailored to their primary mission: targeting vulnerable social activists concentrated in India who lack cybersecurity awareness and resources. In reality, any attempt to use this method to attack targets within my country would likely be easily detected and blocked.

3.The Espionage Incident Targeting China

3.1 Attack Process Analysis

October 13 , 2020, a suspicious email was received in the mailbox of an important domestic unit. The sender used a Gmail mailbox and was not in the unit’s address book. The subject of the email was “Letter regarding the loss of a diplomatic package containing sensitive documents” and provided a network disk link for downloading the suspicious file in the body of the email.

This link is a shared link of a foreign network disk. Click it to download a ZIP compressed package named “Letter regarding loss of Diplomatic Bag with Sensitive Documents.zip”. The package contains a self-extracting bait “Letter regarding loss of Diplomatic Bag with Sensitive Documents.exe” containing malicious code.

Figure 3 ‑1 Contents of the ZIP archive

Table 3 ‑1 Self-extracting bait

Virus name	Trojan[Downloader]/Win32.Upatre
Original file name	Letter regarding loss of Diplomatic Bag with Sensitive Documents.exe
MD5	9F4649FF692011615D5CF3C5D410B95E
Processor architecture	Intel 386 or later, and compatibles
File size	3.15 MB (3306464 bytes)
File format	Win32 EXE
Timestamp	2012-06-09 13:19:49 UTC
Digital signature	Name: Information Civilized System Oy Valid From: 12:00 AM 01/13/2020 Valid To: 11:59 PM 01/12/2021 Thumbprint: 7FB3BF5C17D2E683653FC151ECC8A700DC226245 Serial Number: 00 97 DF 46 AC B2 6B 7C 81 A1 3C C4 67 B4 76 88 C8   Name: VThink Software Consulting Inc. Valid From: 2020-09-04 00:00:00 Valid To: 2021-09-04 23:59:59 Thumbprint: A7425B343917A65DB27268B8FEA5D6D4FD482F76 Serial Number:  8D 52 FB 12 A2 51 1E 86 BB B0 BA 75 C5 17 EA B0

The self-extracting decoy is signed by multiple digital certificates and contains four Trojan programs (Pollard.exe, Sexton.exe, Beltran.exe, and Wilcox.exe), the loader Nevaeh.exe and its configuration file Nevaeh.cfg, and the function script Meredith.vbs.

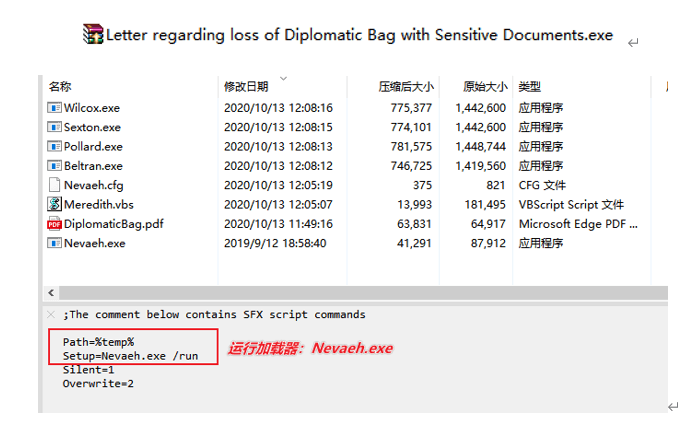

Figure 3 ‑2 Contents of the self-extracting bait

And a cover document displayed to the victim after running: DiplomaticBag.pdf

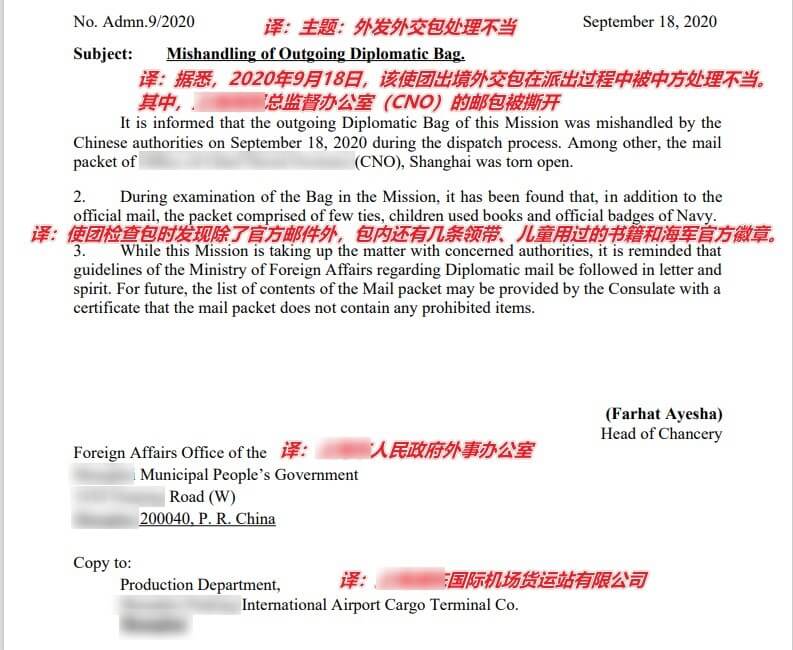

Figure 3 ‑3 Disguising the contents of a document

When the self-extracting decoy is executed, it first runs the loader Nevaeh.exe. The loader then calls its configuration file Nevaeh.cfg and runs the script Meredith.vbs. Meredith.vbs is responsible for running four Trojan programs (Pollard.exe, Sexton.exe, Beltran.exe, and Wilcox.exe). These four Trojan programs decrypt the remote control Trojan payload and finally inject it into the memory of a white process on the system for execution. The overall process is outlined in Figure 3-4.

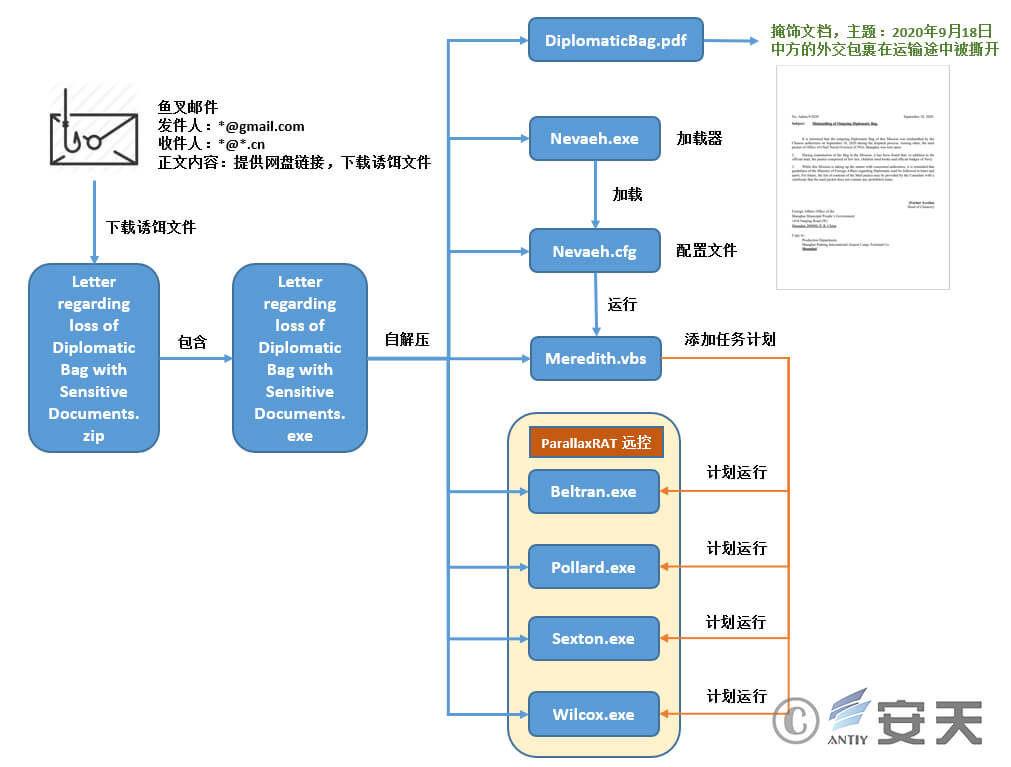

Figure 3 ‑4 Overall attack flow chart

3.2 Loader Analysis

The loader Nevaeh.exe is actually the well-known automatic run tool Advanced Run, the attacker transmits parameters through the configuration file Nevaeh.cfg to silently execute the function script Meredith.vbs in the system’s temporary directory, as shown in Figure 3 ‑5.

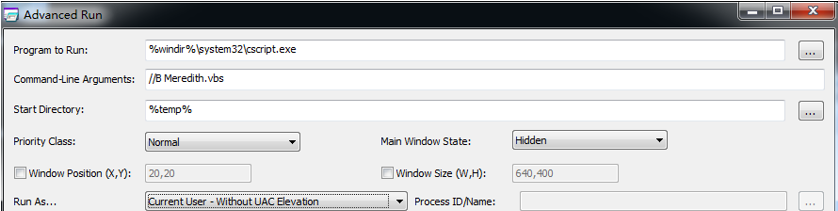

Figure 3 ‑5 Loader parameters after calling the configuration file

3.3  Functional Script Analysis

Meredith.vbs script has a lot of comments in its code. The main functions are:

1.Display the cover document Diplomatic Bag.pdf to confuse the victim, as shown in Figure 3 ‑6.

Figure 3 ‑6 Open the decoy file

2.Forcefully disable the system’s SmartScreen security function, as shown in Figure 3-7.

Figure 3 ‑7 Turn off the SmartScreen function

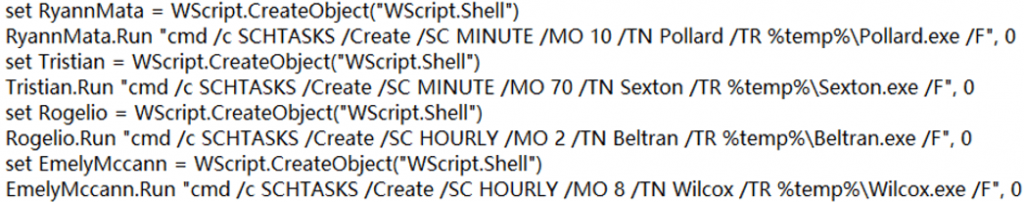

3.To achieve persistence, the Trojan programs Pollard.exe, Sexton.exe, Beltran.exe, and Wilcox.exe are all added to the scheduled tasks, as shown in Figure 3-8.

Figure 3 ‑8 Add a task schedule

3.4 Trojan Program Analysis

Four Trojan programs (Pollard.exe, Sexton.exe, Beltran.exe, and Wilcox.exe) are scheduled to launch as part of a scheduled task. Upon launch, they run their corresponding four white processes and simultaneously decrypt the same shellcode in memory. This shellcode then injects a contained PE data segment (ParallaxRAT remote control Trojan) into the corresponding white process. Beltran.exe controls the rundll32.exe process, Pollard.exe controls the svchost.exe process, Sexton.exe controls the dllhost.exe process, and Wilcox.exe controls the notepad.exe process.

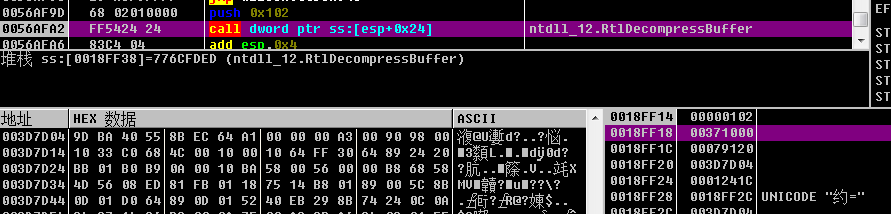

Figure 3 ‑9 Decrypted shellcode data

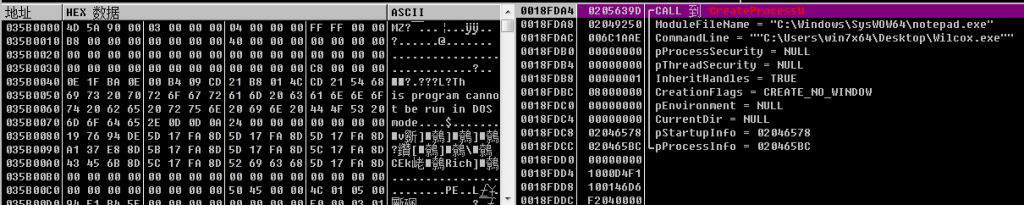

Figure 3 ‑10 PE data to be injected into the notepad.exe white process

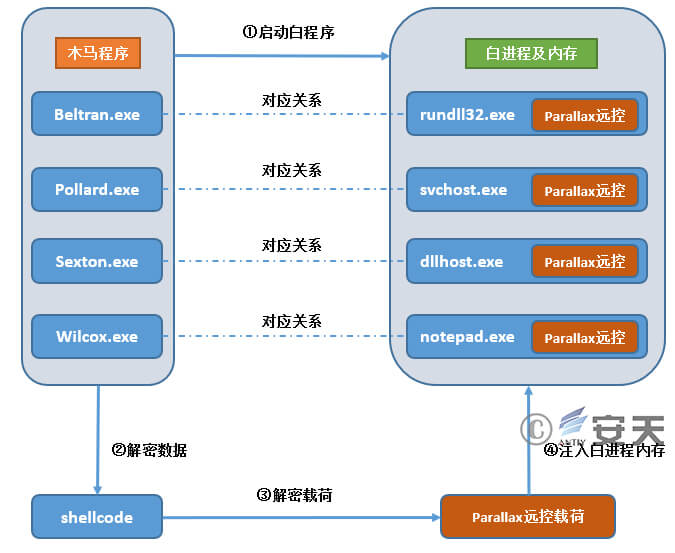

The relationship between the white process call and injection process is shown in Figure 3-11.

Figure 3 ‑11 White process call and injection process diagram

The PE data injected into the white process belongs to the Parallax RAT remote control trojan. While running in memory, it attempts to connect to the domain asianmedics.today, resolving to the IP address 23.160.208.250 and port 8647. Parallax RAT is a publicly available commercial remote control malware with capabilities such as file management, keystroke logging, remote desktop, password theft, command execution, process management, upload, and execution. Its functionality is mature and stable, sufficient to support standard espionage operations.

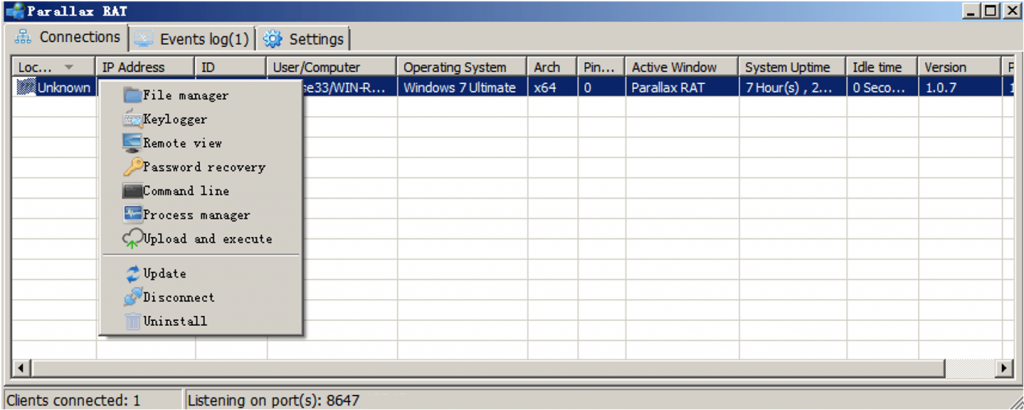

Figure 3 ‑12 A typical Parallax RAT control panel

3.5 Countermeasures Analysis

The above four Trojan programs all have the following three anti-analysis capabilities.

1.Possessing a digital signature: This allows for a certain level of anti-killing capabilities, confusing manual judgment during forensic analysis, and the signature is changed with almost every action.

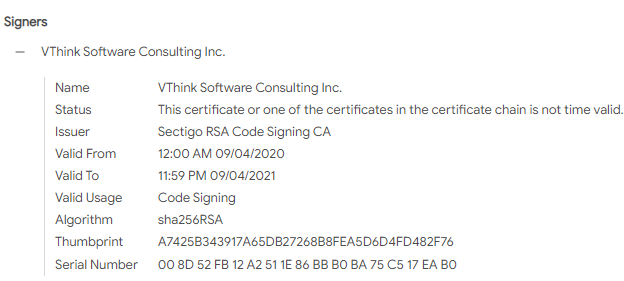

Figure 3 ‑13 All Trojan programs have digital signatures

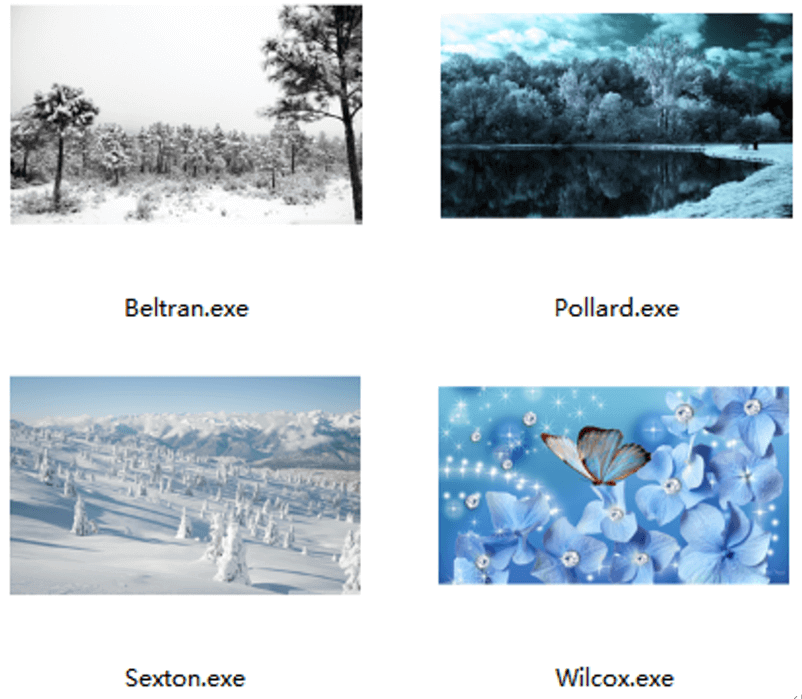

2.File icon disguise: The subject matter is chosen very randomly and does not show any specific targeting.

Figure 3 ‑14 Trojan programs are all disguised as icons

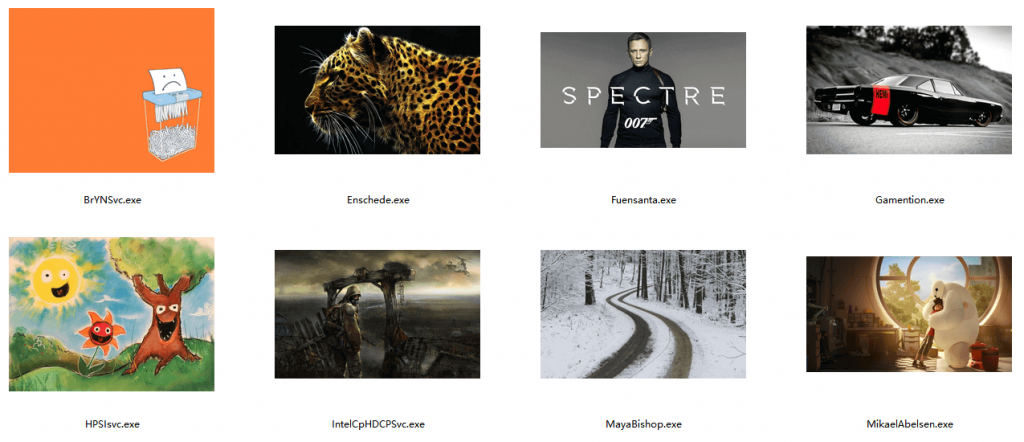

Figure 3 ‑15 The same source Trojan program also has icon disguise

3.Timestamp tampering: All timestamps were uniformly tampered with to 2006-12-05 20:36:44 , intended to thwart time zone analysis.

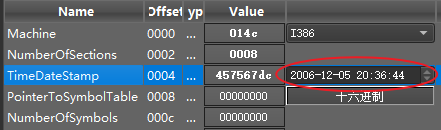

Figure 3 ‑16 All Trojan programs tamper with timestamps

In the subsequent homologous Trojans that were associated, in addition to the three commonly used countermeasures mentioned above, there are also methods such as filling useless bytes to form large files of hundreds of megabytes to resist cloud detection.

4.Bhima Koregaon Case

4.1 Attack Process Analysis

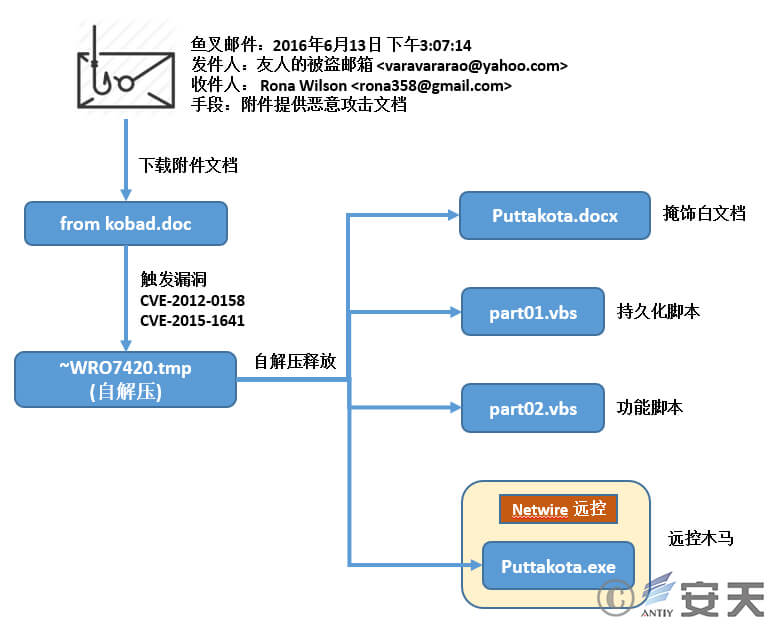

At 3:07 PM on June 13, 2016, prominent Indian activist Rona Wilson received an email from her friend Varavara Rao. The email instructed her to download and view the attached document, titled “another victory.doc”, and stated that it came from Kobad (possibly Kobad Ghandy). Unbeknownst to Rona, Varavara Rao’s email account had been compromised by hackers, and the attached document had been weaponized using vulnerabilities (CVE-2012-0158 and CVE-2015-1642). If opened, it would infect the system with the commercial remote access malware NetWire.

Figure 4 ‑1 Attack Email 1 (Unsuccessful)

Rona Wilson discovered that the attached document could not be opened properly. She replied, requesting a new copy. Fourteen minutes later, the recipient sent a similar attack document, compressed in a ZIP format, with the message, “Hopefully, it will work this time”.

Figure 4 ‑2 Attack Email 2 (Unsuccessful)

Rona Wilson tried to download the compressed file sent by the other party, but the browser warned her that the attachment contained a virus and could not be downloaded successfully. After she informed the other party of the situation, the other party replied 38 minutes later with a download link to Dropbox, claiming that he was not good at computer technology, and then re-uploaded the file to the network disk and hoped that Wilson could download it.

However, the Dropbox link in the text actually points to a hidden link, which actually downloads from the attacker’s server after clicking it.

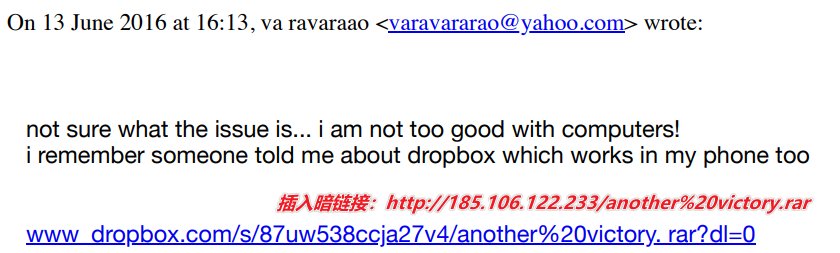

Figure 4 ‑3 The attacker’s reply contained a hidden link

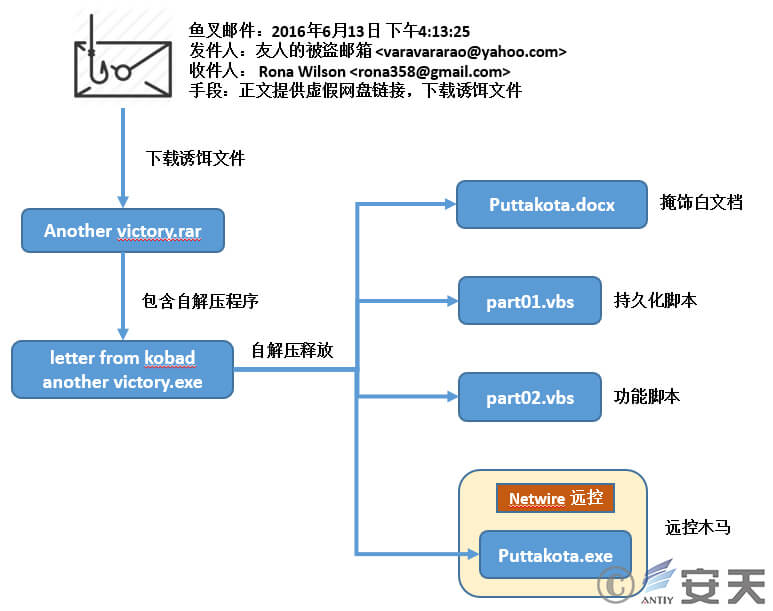

Rona Wilson successfully downloaded the RAR compressed file this time and replied to the other party that although it was able to be downloaded this time, a damaged file would pop up after opening it. Only the letter header was readable, and the rest of the text was garbled.

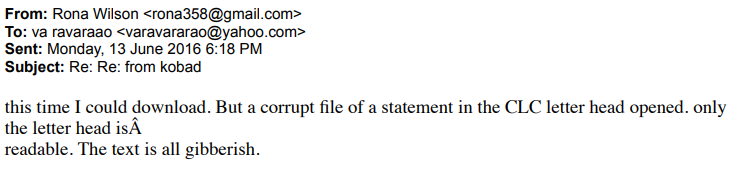

Figure 4 ‑4 Wilson replied that the file had been successfully downloaded and opened

Figure 4 ‑5 Contents displayed in the cover document

At this moment, Rona Wilson did not realize that her laptop had gone through the Trojan implantation process shown in Figures 4‑6, and the other party was able to remotely control her computer system through the NetWire Trojan.

Figure 4 ‑6 Attack Email 3 (Successful Attack Intrusion)

4.2  Malicious Submission Analysis

The attacker performed a series of stealing operations from Rona Wilson’s computer. According to Arsenal’s forensic report ^[2] , the attacker copied important local files to the “backup2015” directory created on the C drive. Then, using a script to call a synchronization tool, the attacker synchronized the files to the attacker’s FTP server. The operation targets included the local hard drive and all external storage devices connected to the system.

More importantly, the attacker also performed a series of file delivery operations on Rona Wilson’s computer. According to Arsenal’s forensic results^[2], on November3,2016, the attacker created a directory named “Rbackup” in the D drive of Rona Wilson’s computer and then set it to hidden attributes. Wilson’s computer was installed with Quick Heal antivirus software, and its behavior monitoring system (BDS) would record the execution information of various applications in the system on a daily basis. The restored records showed that in the more than one year after the creation of the “Rbackup” hidden directory, the attacker sent thousands of carefully crafted letter files to the hidden directory through NetWire remote control. The content of these letters would seriously violate India’s anti-terrorism laws.

The mail delivery process is performed remotely by the NetWire Trojan. It usually starts by sending a RAR archive and WinRAR decompression program to a hidden directory, then decompresses a bunch of files in the same directory, and finally ends by deleting the RAR archive and WinRAR program.

These correspondences are mainly in PDF and Office formats, and the contents are mostly traditional letters with simple formats. Unlike emails, they do not have strict digital traces, and most of the letter files are said to have been deliberately cleared of metadata.

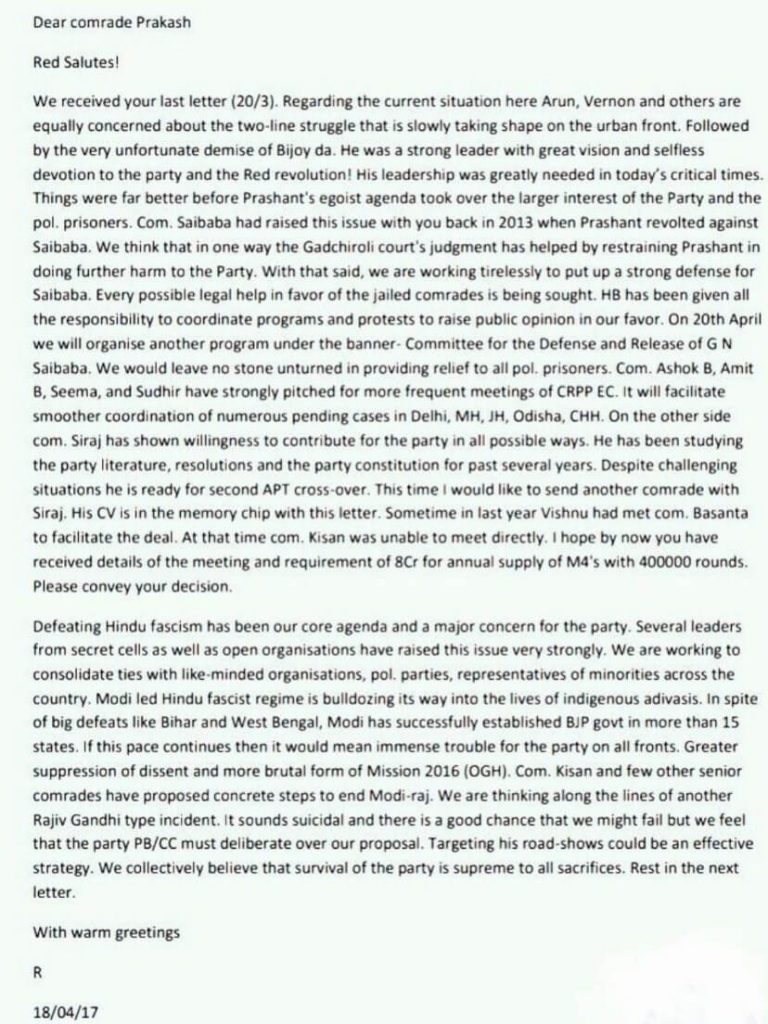

Figure 4 ‑7 The letter is about buying arms and assassinating Prime Minister Modi

At the same time, there are still many doubts about the creation and preservation of these letters.

1. Rona Wilson’s computer is installed with Word 2007, but most of the key correspondence documents were edited in Word 2010 or 2013 and then saved as PDFs;
2. Rona Wilson’s computer had WinRAR v3.70 installed, but the email archive was extracted using WinRAR v4.20, which suddenly appeared and then immediately deleted.
3. Rona Wilson’s computer indicating that the user has ever clicked on the hidden directory and the files in it.

4.3 Incident Process Sorting

On March 14, 2018, the attacker copied the most critical part of the large number of letters accumulated in the hidden directory to a SanDisk USB drive connected to Rona Wilson’s computer.

At 4:50 pm on April 16, 2018, the hidden directory of “Rbackup” was last modified by an attacker.

On the morning of April 17, 2018, the Pune district police in Maharashtra, India, claimed to have raided Rona Wilson’s residence in New Delhi after receiving a tip off from an informant^[5], and seized some incriminating digital evidence from Wilson’s USB and computer hard drives.

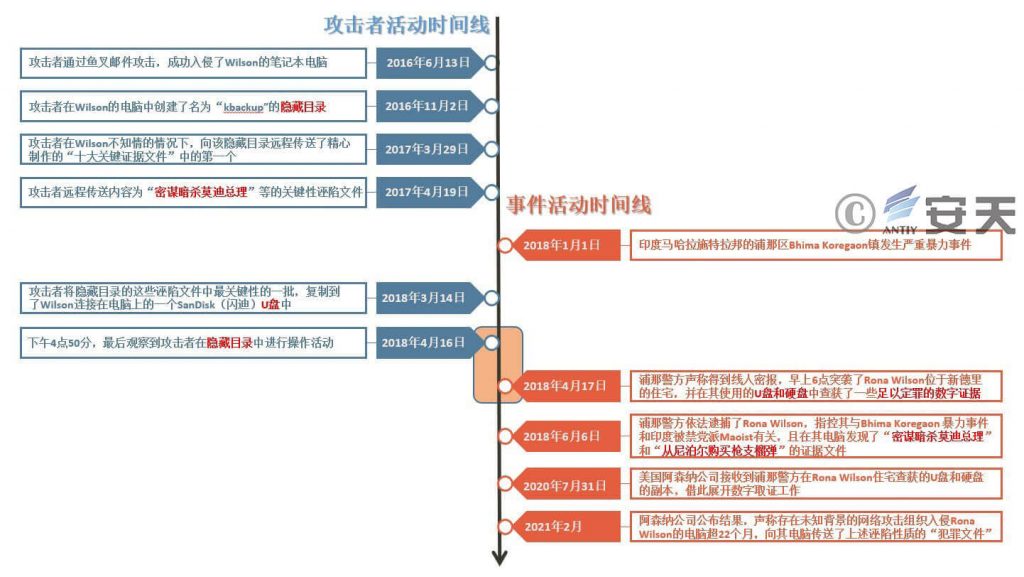

Figure 4 ‑8 Bhima Koregaon case timeline

5.Traceability Analysis

Because many attacks utilize commercial remote access tools, the effective timestamps of the malicious programs involved are often tampered with, making it impossible to infer the attacker’s geographic location based on normal time zone analysis. However, during the process of creating white-label documents, attackers often save HTML pages as PDFs through browsers. We have collected a few PDF samples that record the time zone of the suspected attacker’s machine: UTC+05:30.

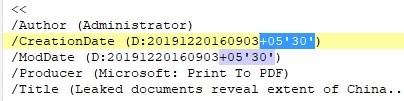

Figure 5 ‑1 Mask the time zone of a document

The UTC+05:30 time zone applies not only to Sri Lanka but also to India.

6.Summary

Antiy began capturing and analyzing cyberattacks suspected to originate from India in 2013, capturing, analyzing, and naming attack groups such as “White Elephant”, “Young Elephan”t, and “Bitter Elephant”. Over the past decade, the center of India’s cyberattacks has gradually shifted from Pakistan to China. The activities of the “DarkElephant” attack group reveal that Indian groups not only frequently launch cyberattacks against neighboring countries, but also widely use these attacks against domestic targets, even using them to frame domestic activists. The covert nature of these groups’ operations warrants attention and vigilance.
