1.Overview

In the long-term monitoring of daily security events, Antiy CERT often captures a large number of MyDoom worm samples and phishing emails that spread the worm. After being infected with MyDoom, the victim host will be placed with a back door so that the attacker can issue subsequent malware for attack or theft. The MyDoom worm, first discovered in 2004, is still active and mainly uses SMTP protocol to spread phishing mail. The researchers found that after landing, the MyDoom worm would replace its first three segment names with randomly generated eight letters and send them again as attachments to phishing emails. Causes the hash value of the sample to be different each time it is propagated.

After running, the MyDoom worm will continuously scan the host file, extract the email address, randomly obtain the email title, sender and other information in the sample, and generate a phishing email as an attachment to the compressed MyDoom. Use the SMTP protocol to send phishing emails continuously. Finally, DGA (domain name generation algorithm) is used to generate the online domain name, and after three times of verification, local information is returned and instructions such as “DDoS attack, distribution of malicious files and transmission of removable media” are awaited. During this period, multiple files will be released and written to the registry. in this case, the integrated ARK tool, ATOL, can be used for quick disposal [1].

Atool is a tool for system security analysis and anti-RootKit Trojan, including Windows version and Xinchuang system version. Mainly for network administrators, survey and evidence personnel, computer enthusiasts and professional users to use. Atool enumerates execution objects such as processes, services, drivers, kernel modules and environment configurations such as startup items and scheduled tasks, and presents them in the form of manifest. The security and reputation of related objects are evaluated by means of local database + cloud object reputation query, thus “isolating” the threat objects and suspicious objects worthy of extraction and analysis.

2.Mydoom spread

2.1 Phishing mail

Antiy CERT captures multiple phishing emails spreading MyDoom worms, and its attached executable file is MyDoom worm. The email contains misleading titles and text contents, such as “Network remittance prompt,” “Birthday greeting,” “Notice on changing account password,” etc., to induce the user to click the attachment. Some of the phishing emails are shown as follows:

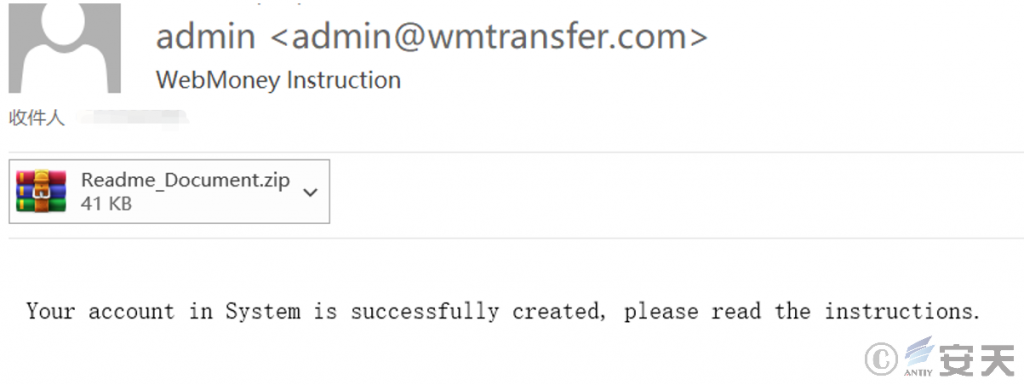

Figure 2-1 Content of a phishing email

2.2    Attack process

The MyDoom worm propagates through phishing emails, creates a registry startup key after running, copies itself to C:\ Windows\ system32\ smnss. exe and starts. After being started, smnss. exe will call the thread to continuously extract the email address from the local area and send the phishing email, and finally connect the C2 server to wait for sending instructions, such as DDoS attack, sending malicious files and mobile media propagation.

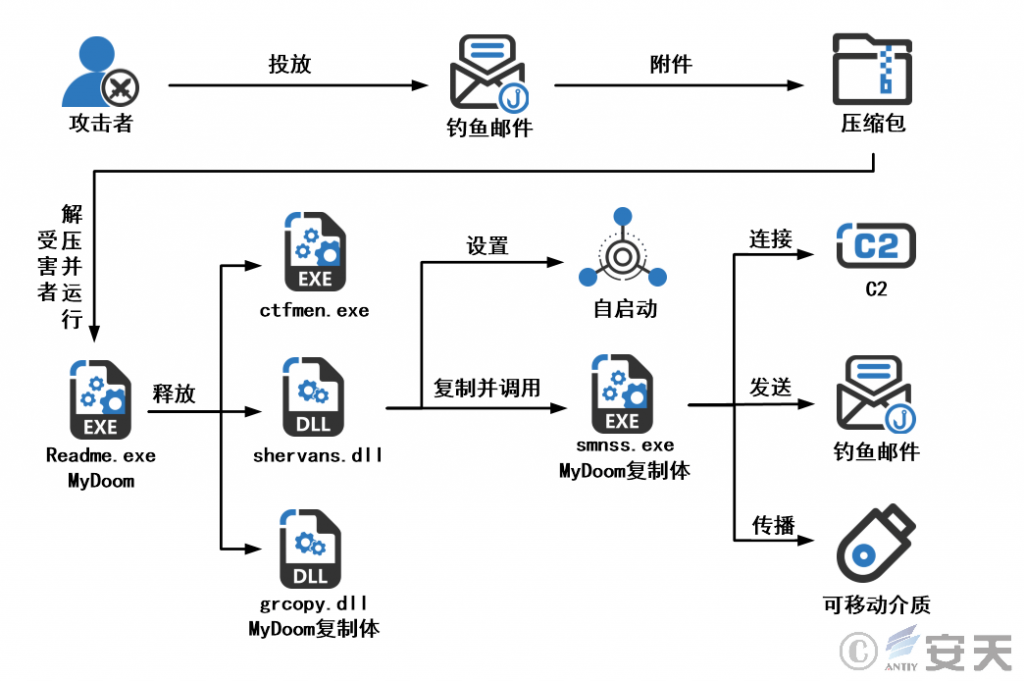

Figure 2-2 Attack flow

3.Cleanup recommendations

3.1 Clear procedure

(1) Closing the process

Open the process of port 3159 (the extracted attachment or smnss. exe, the process has a daemon that needs to be finished first)

A process named smnss. exe

Delete files (because MyDoom is a 32-bit sample, there are certain differences in operating systems with different bits)

32-bit operating system:

Unzipped attachments

C:\ Windows\ system32\ smnss.exe

C:\ Windows\ system32\ shervans.dll

C:\ Windows\ system32\ grcopy.dll

C:\ Windows\ system32\ ctfmen.dll

C:\ Windows\ system32\ zipfi.dll

C:\ Windows\ system32\ zipfiaq.dll

C:\ Windows\ system32\ satornas.dll

64-bit operating system:

Unzipped attachments

C:\ Windows\ SysWOW64\ smnss.exe

C:\ Windows\ SysWOW64\ shervans.dll

C:\ Windows\ SysWOW64\ grcopy.dll

C:\ Windows\ SysWOW64\ ctfmen.dll

C:\ Windows\ SysWOW64\ zipfi.dll

C:\ Windows\ SysWOW64\ zipfiaq.dll

C:\ Windows\ SysWOW64\ satornas.dll

(3) Delete the registry (because MyDoom is a 32-bit sample, there are certain differences in operating systems of different bits)

32-bit operating system:

Hkey _ CLASS _ ROOT\ CLSID\ {E6FB5E20-DE35-11CF-9C87-00AA005127ED}\ InprocServer32

Hkey _ LOCAL _ MACHINE\ Software\ Microsoft\ Windows\ CurrentVersion\ Explorer\ Vulnvol32\ Version

Hkey _ CURRENT _ USER\ Software\ Microsoft\ Windows\ CurrentVersion\ Explorer\ Vulnvol32\ Version

Hkey _ LOCAL _ MACHINE\ Software\ Microsoft\ Windows\ CurrentVersion\ Run\ ctfmen

Hkey _ CURRENT _ USER\ Software\ Microsoft\ Windows\ CurrentVersion\ Run\ ctfmen

64-bit operating system:

Hkey _ CLASS _ ROOT\ Wow6432Node\ CLSID\ {E6FB5E20-DE35-11CF-9C87-00AA005127ED}\ InprocServer32

Hkey _ LOCAL _ MACHINE\ Software\ Wow6432Node\ Microsoft\ Windows\ CurrentVersion\ Explorer\ vulnvol32\ Version

Hkey _ CURRENT _ USER\ Software\ Wow6432Node\ Microsoft\ Windows\ CurrentVersion\ Explorer\ vulnvol32\ Version

Hkey _ LOCAL _ MACHINE\ Software\ Wow6432Node\ Microsoft\ Windows\ CurrentVersion\ Run\ ctfmen

Hkey _ CURRENT _ USER\ Software\ Wow6432Node\ Microsoft\ Windows\ CurrentVersion\ Run\ ctfmen

3.2 Use ATtool for removal

System in-depth analysis tool ATool is a system security kernel analysis and RootKit detection tool released and updated by Antiy Labs in 2006, because the requirements for system signature and start-up authentication after Windows 10 are more stringent. Many of the existing free ARK tools can not be run under Windows 10 and other updated systems, so recently, Antiy updated and released the free version of ATOL V3.5, strengthening the support for Windows 10 and Windows 11 versions. Available for download on Antiy Vertical Response Platform [2]. As follows:

Figure 3-1 Downloading ATool

Mydoom releases files and creates a large number of registrations. if Windows tools such as task manager, resource manager and registry editor are used for disposal, frequent switching of tools will cause inconvenience and low efficiency. When the MyDoom worm loads the shervans. dll, it starts the thread to call smnss. exe continuously, so it needs to shut down the process before it is cleared. Since the shelvans. dll starts the thread to open the port 3159, you can use this as the initial sample for signature identification. using ATool, you can quickly identify and handle the process that opened the port. Take x64-bit MyDoom, for example:

(1) In the port management, the process of opening port 3159 is violently deleted, and the file in the operating state cannot be deleted by using “Delete File.”

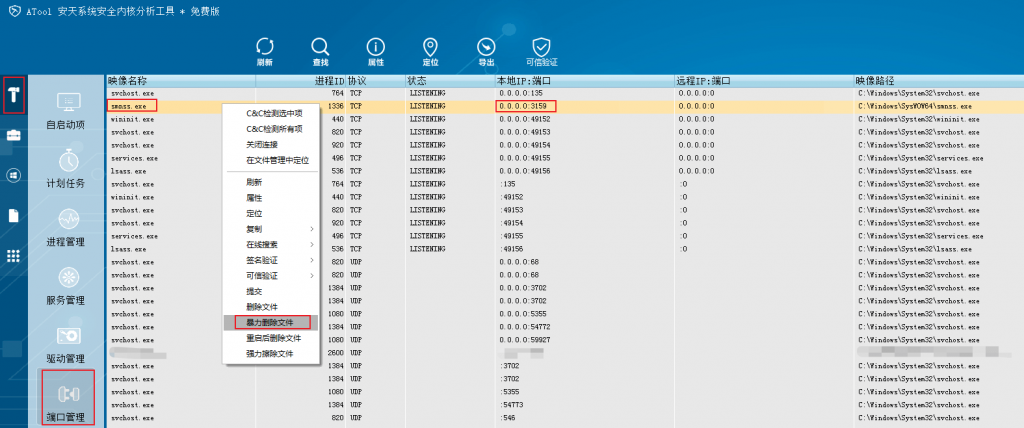

Figure 3-2 Brute force delete process for opening 3159 port

In process management, ending and deleting the attachment process.

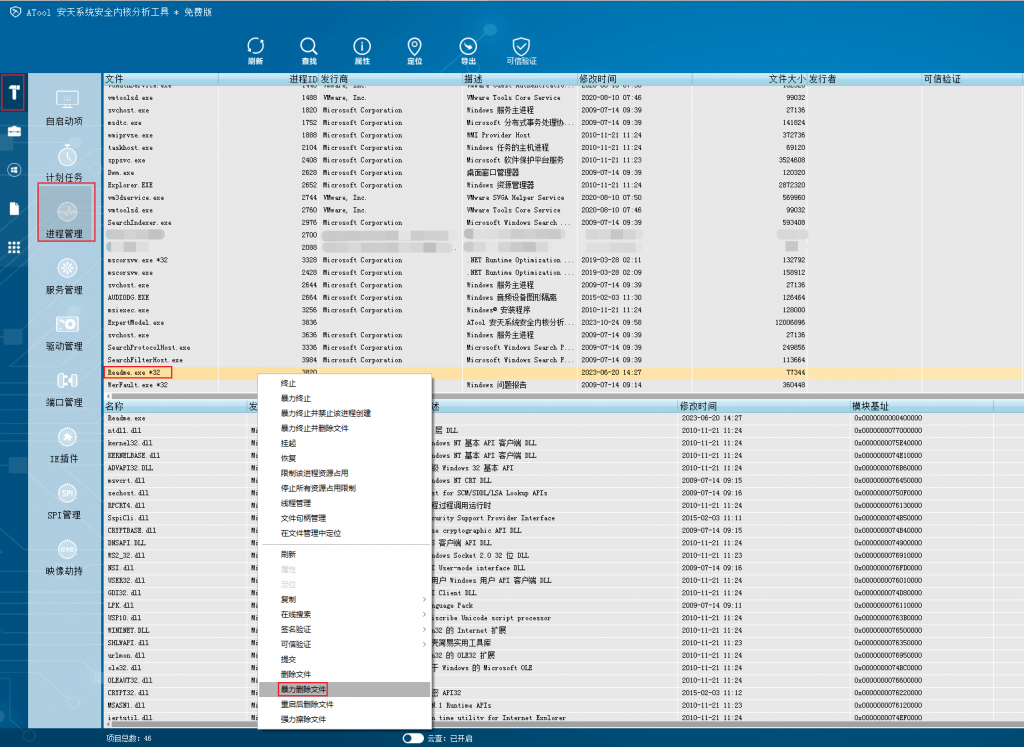

Figure 3-3 End and delete the malicious process

(3) Delete the self-startup item ctfmen and delete the ctfmen.exe file by force in the self-startup item.

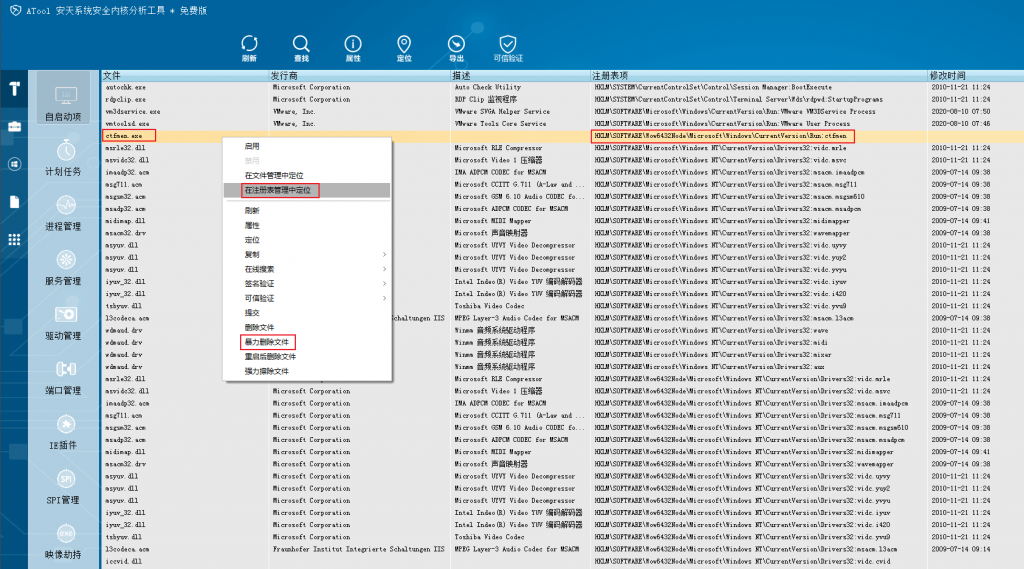

Figure 3-4 Locating the self-starting item

Navigate to the registry and delete the entry.

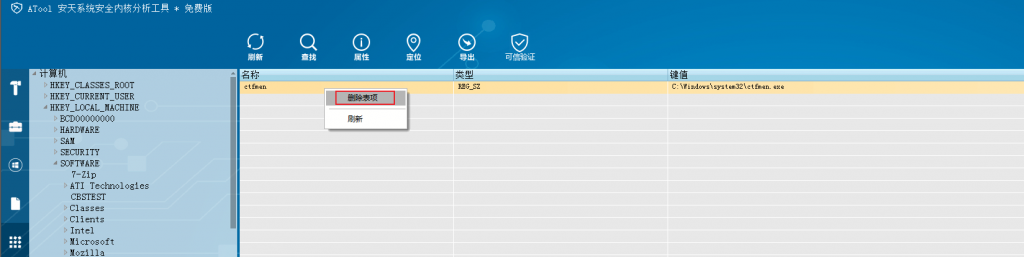

Figure 3-5 Deletion of a self-starting item

(4) In file management, to delete the released files under SysWOW64, click the modification time to sort the files, then click the search to locate the files, and finally delete the files by using force. In addition to that follow illustration, you still need to delete shelvans. dll, grcopy. dll.

Figure 3-6 Delete the MyDoom release file

(5) In registry management, the table entry is deleted after locating the registry entry, except the entry in HKEY _ LOCAL _ MACHINE (or HKEY _ CURRENT _ USER)\ Software\ Wow6432Node\ Microsoft\ CurrentVersion\ Explorer\ Vulnvol32\ Version.

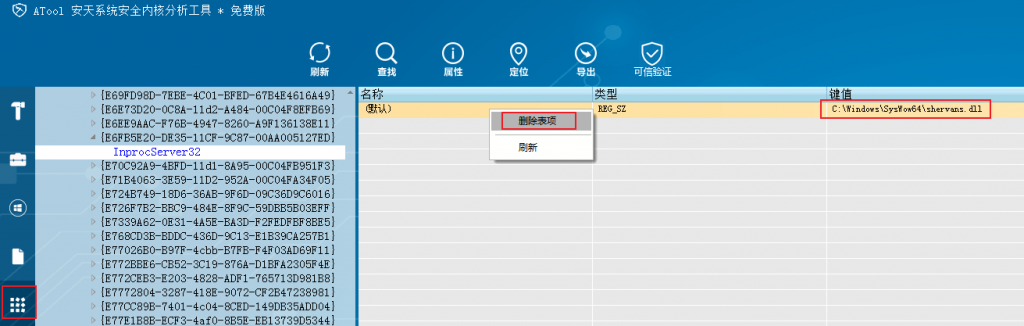

Figure 3-7 Delete a registry key written by MyDoom

4.Recommendations for protection

(1) Installation of terminal protection software: Install anti-virus software, and it is recommended to install the terminal protection system of Antiy IEP;

(2) Strengthen password strength: It is recommended to use a 16-digit or longer password, including combination of upper and lower case letters, numbers and symbols, to avoid the same password for multiple servers;

(3) Deployment of Intrusion Detection System (IDS): Deploy traffic monitoring software or equipment to facilitate the discovery, tracing and tracing of malicious codes. Taking network traffic as the detection and analysis object, the Antiy PTD can accurately detect a mass of known malicious codes and network attack activities, and effectively detect suspicious behaviors, assets and various unknown threats on the network;

(4) Safety day service: In case of malware attack, it is suggested to isolate the attacked host in time, protect the site and wait for the security engineer to check the computer; safety day 7 * 24 service hotline: 400-840-9234.

It has been proved that Antiy IEP can effectively detect and kill the worm.

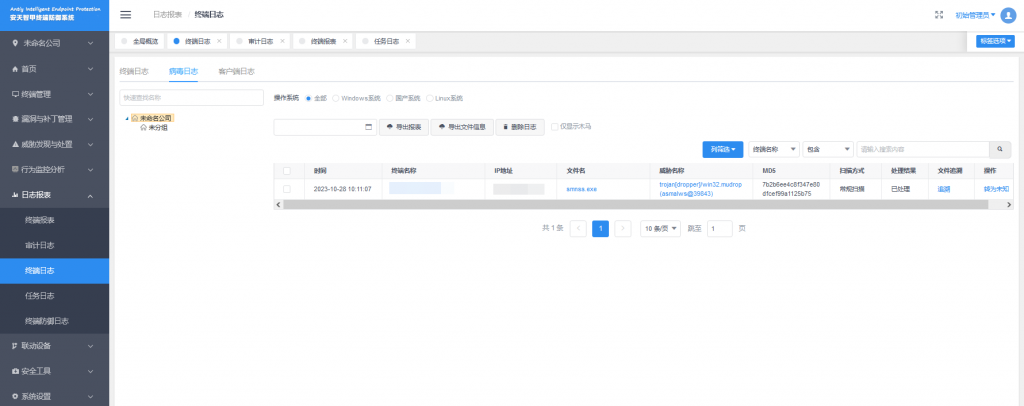

Figure 4-1 Antiy IEP can effectively detect and kill MyDoom

5.Sample analysis

After running, the MyDoom worm first detects the virtual machine and the debugger, and then determines whether it is running for the first time through the registry key A.

(1) In case of first running, release ctfmen.exe, shelvans.dll and grcopy.dll under the directory C:\ Windows\ system32\, and then record the infection identification of the five items in the registry. Call shelvans.dll to initialize, copy and run smnss.exe, protect smnss.exe processes, set self-startup, monitor port 3159 for agent and other malicious operations. Finally, call ctfmen. exe (start the parent copy file smnss. exe or shervans. dll).

If it is not that first run, create mutex A to ensure its unique instance to run, and judge the registry key B. If so, load that shervans. dll for initialization and proxy operations; if not, create the registry key B. If that determination is made, the start thread collect the address book of the outlook mailbox, And search email address by filtering characteristic string from files whose volume is less than 0.97MB and whose suffixes are “html,” “htm,” “txt,” “xml,” “doc,” “pl,” “php” and “tbb.” Mydoom is then used as an attachment to send it a randomly generated phishing email. Judge whether the mutex B exists, if it does not exist, load the shervans.dll, and judge whether to propagate the mobile medium according to the value of the infection flag usbactiv.

Finally, DGA (Domain Name Generation Algorithm) is used to randomly generate online domain names, and after three times of verification, the C2 server is connected to upload information, including the value of registry iduser, port number 3159, local IP, operating system version. Wait for the attacker’s instruction and then perform operations such as restarting itself, DDoS attack, delivering malicious files, and propagation of removable media.

Registry key A:

Hkey _ LOCAL _ MACHINE\ Software\ Microsoft\ Windows\ CurrentVersion\ Explorer\ Vulnvol32\ Version or HKEY _ CURRENT _ USER\ Software\ Microsoft\ Windows\ CurrentVersion\ Explorer\ Vulnvol32\ Version

Registry key B:

Hkey _ CLASS _ ROOT\ CLSID\ {E6FB5E20-DE35-11CF-9C87-00AA005127ED}\ InprocServer32

Mutex A: Vulnashvolna, ensuring that smnss. exe runs uniquely

Mutex B: X _ socks5aan, loading the shervans.dll identity

Key values for MyDoom writes under Software\ Microsoft\ Windows\ CurrentVersion\ Explorer\ vulnvol32\ Version are shown in the following table:

Table 5-1 Description of the Key Values of the Infection Identifier under the Registry Version Key

Serial Number	Item	Value	Description
1	Iduser	String: Random 8 characters	Identification of the machine, provided when connecting to the C2 server
2	Statem	Number	Identifies the number of times the message sending thread has been started, with an initial value of 0
3	Namecp	String: Random 8-character .exe	File name for copying MyDoom when removable media is infected
4	Usw	String	The user name used by the agent. the initial value is kgbee
5	Pafw	String	The password used by the agent, with an initial value of kcnfj
6	Usbactiv	Number	Identification of infect removable media, initial value is 0 (no infect removable media)
7	Timeout	Number	C2 Command Waiting Time

5.1 Release documents

After the MyDoom worm runs, it releases three core files: Parent program smnss.exe, parent startup program ctfmen.exe and initializer program shervans.dll. The following table shows the functions of the released files:

Table 5-2 Description of File Functions Released by MyDoom

Document name	Path of the file	Function description
Smnss.exe (virus parent)	C:\ Windows\ system 32\	To propagate the phishing mail, transmit it through the removable medium, and connect the C2 server
Ctfmen.exe	C:\ Windows\ system 32\	Starts the virus parent (self-starting item), and calls shervans. dll if the parent does not exist
Shervans.dll	C:\ Windows\ system 32\	Initialize environment, daemon parent process, set self-start, monitor 3159 port

5.2 Copy itself

When MyDoom copies itself, it calls a specific function to modify the file’s section name, replacing the first three section names with randomly generated eight letters to ensure that each copy produces a file with a different hash value. In this way, the uniqueness and randomness of the file are increased.

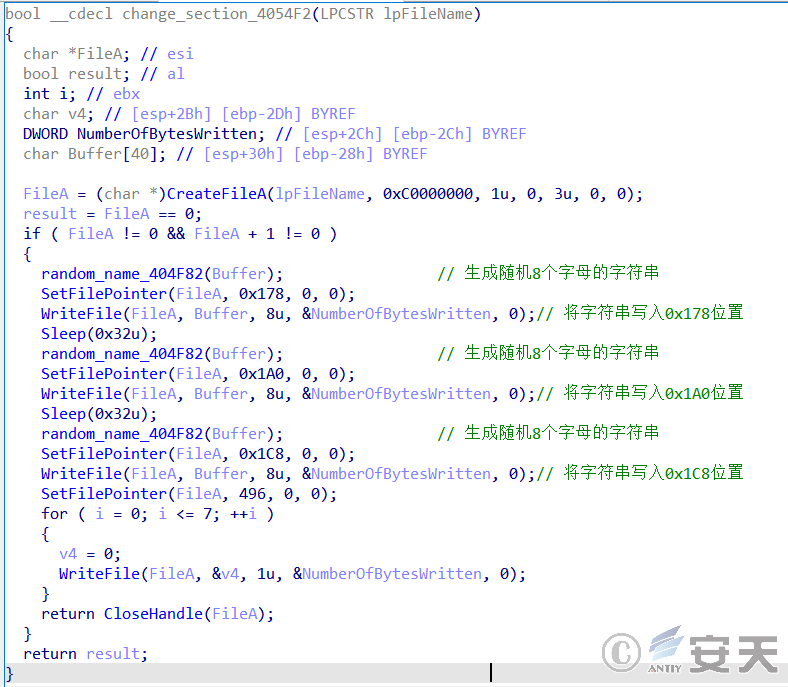

Figure 5-1 Modification of section name

5.3 Persistence

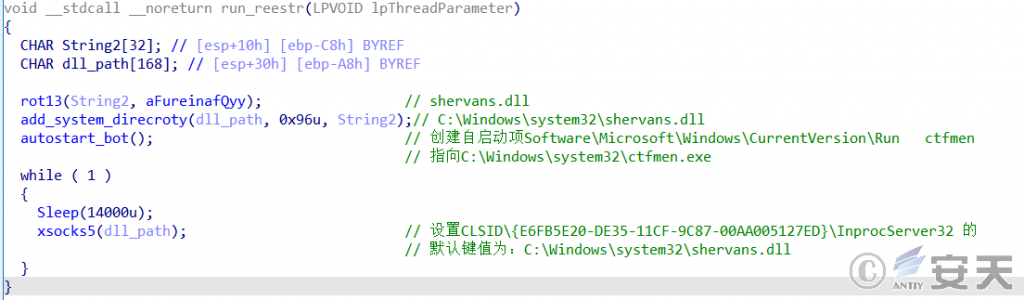

Mydoom adds the ctfmen. exe program to the registry startup key after loading shervans.dll to persist smnss.exe (virus parent):

Figure 5-2 Creating a self-starting item

5.4 Set up listening ports

Mydoom sets the snoop 3159 port after loading shelvans.dll:

Figure 5-3 Setting the listening port

5.5 Spread phishing mail

5.5.1  Get E-mail Address

There are two ways for MyDoom to get an email address:

(1) Obtain the email address in the Outlook address book of the user host, and release the zipfi.dll and zipfiaq.dll compressed by MyDoom:

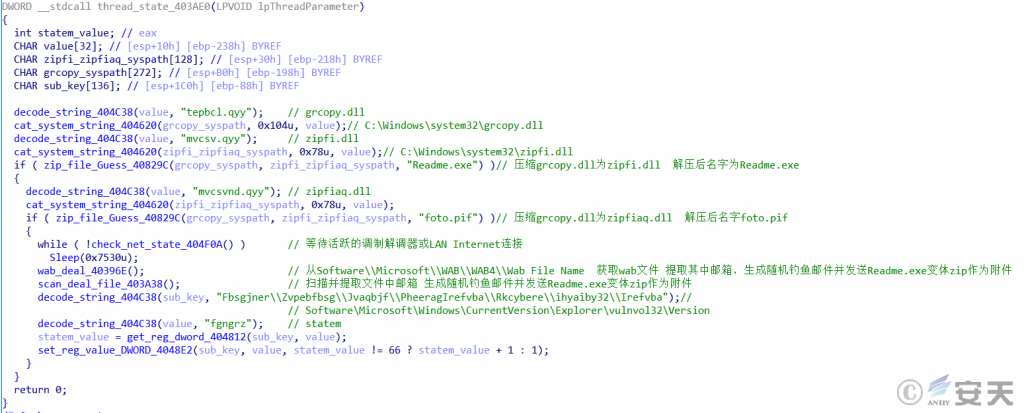

Figure 5-4 Obtaining an Email Address in the Outlook Address Book

(2) Go through the files with the suffixes “html,” “htm,” “txt,” “xml,” “doc,” “pl,” “php” and “tbb” in the user host, and extract the email address from the files, as shown in the figure below:

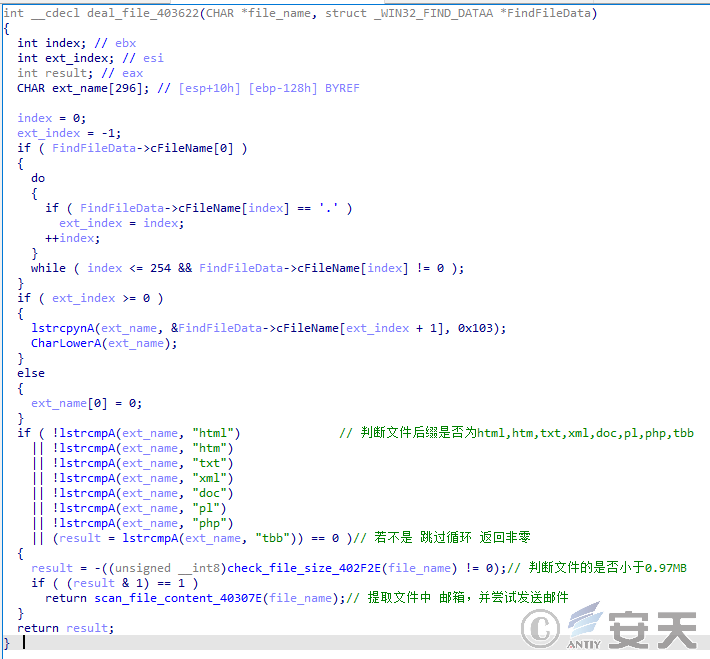

Figure 5-5 E-mail address in user host file

5.5.2 Send phishing mail

Constantly scan local files and Outlook address book, extract the email address, and use SMTP protocol to send randomly generated phishing mail.

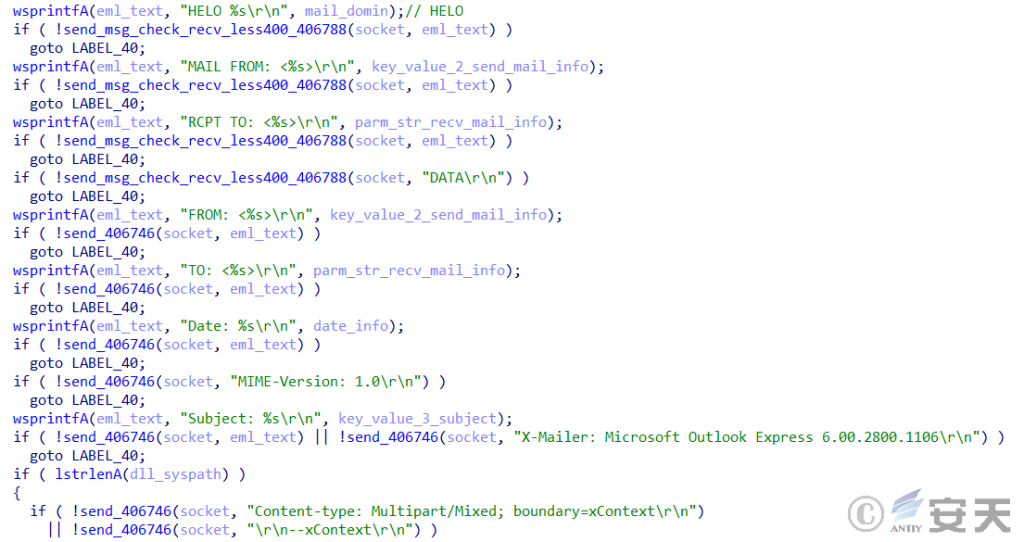

Figure 5-6 Sending a phishing email

5.6 Propagation through a removable medium

Mydoom releases satornas.dll to be copied as autorun.inf when the mobile medium spreads, combining the released virus parent for transmission purposes.

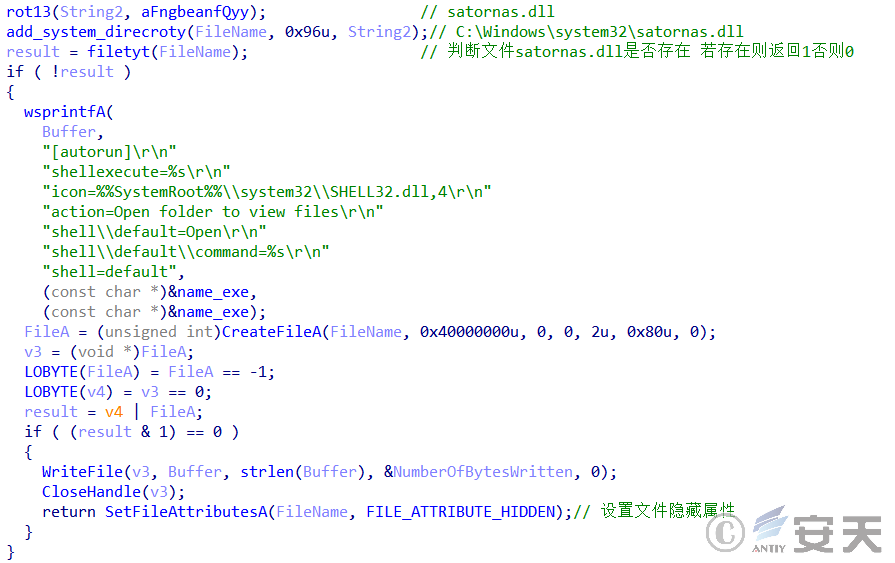

Figure 5-7 Content in autorun. inf

The removable medium infection can be turned on and off by the C2 command.

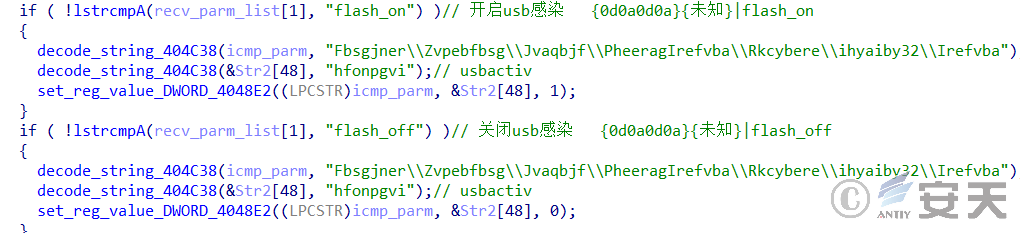

Figure 5-8 Turn on and off mobile medium infection by the C2 command

5.7    Command and control

Dga is used to obtain the domain name. compared with the previous variant, the variant adds three times of verification to ensure that the attacker C2 server is connected, and after the verification succeeds, the server is connected to the C2 server to wait for receiving the remote control instruction.

Figure 5-9 DGA implementation ‑

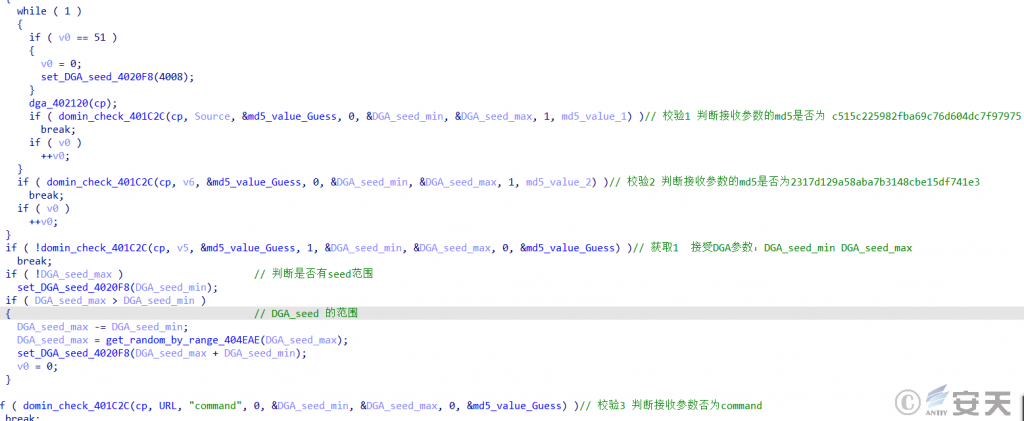

Figure 5-10 Three Verifications

Upload host information after verification:

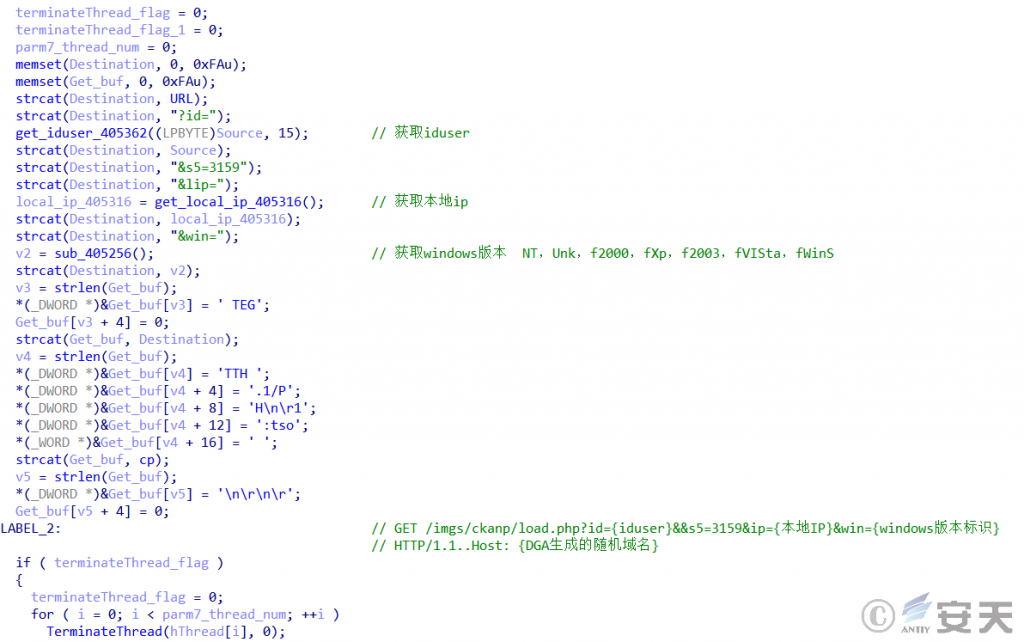

Figure 5-11 Upload Host Information

Functions of remote control include DDoS attack, delivery of malicious files and transmission of removable media, as shown in the table below:

Table 5-3 Command control function

Instructions	Functions
Http	Http flood attack
Spamon	Initialize the number of times a message is sent
Down _ file	Download the file to C:\ Windows\ system32\ donzx.dll
Pusk	Download the file and run the file
Restart	Re-run
Timeout	Set the command execution interval
Socksa	Set the user name and password in the registry
Flash _ on	Turn on removable media for infection
Flash _ off	Turn off removable media infection
Icmp	Icmp flood attack
