1.Overview

Recently, Antiy CERT (member of the CCTGA Ransomware Prevention and Response Working Group) has found a number of BlackCat [1] ransomware attacks. Blackcat ransomware, also known as ALPHV or Noberus, was discovered in November 2021, with the attack organisation behind it operating based on the ransomware-as-a-service (RaaS) business model, releasing version 2.0 called “Sphynx” on February 21, 2023 [2], The initial access to the victim system is mainly realized through phishing, vulnerability utilization and the obtained credentials, and the system has the function of intranet propagation, and the data in the victim system will be stolen before the encryption payload is executed. The encryption payload uses AES or ChaCha combination of RSA algorithms to encrypt files, and no public decryption tools have been found.

The attack organization behind the BlackCat ransomware adopts the double blackmail strategy of “stealing data + encrypted files,” based on which the threat of harassment or DDoS attack is added to constitute multiple blackmail, and there is also the case of “no encryption only blackmail.” It is one of the trends of the current ransomware attack organization to transform the pattern of ransomware. Compared with data encryption, the threat of data exposure will bring greater pressure to some of the victimized enterprises. As a result, some attack groups are beginning to add the ability to steal data to the ransomware while retaining its mechanism for encrypting files. The encrypted data may be recovered, and once it is leaked, the impact caused by the leakage is immeasurable, such as product formula, design drawings and cooperation agreement and other confidential documents. From November 30, 2021, the attack group behind the BlackCat ransomware has been publishing victim information and stolen data at the dedicated data breach site (DLS) of the Tor website, as of July 3, 2023. There are 434 victims in the DLS, and the actual number of victims far exceeds this number. this part is the information of the victims that is not satisfied with the needs of the victims or that is newly added, and the data that is stolen from the victim system. The attacker will remove the victim’s information and stolen data when the demand is satisfied or for other reasons.

Blackcat ransomware is associated with REvil, DarkSide and BlackMatter ransomware that have exited the ransomware market [3], and is the first ransomware to develop cross-platform attack payloads using the Rust programming language [4]. Its payload supports execution on Windows, Linux, and VMware ESXi systems. Encryption of the payload needs to be performed by specific Access Token parameters, and the payload file cannot be executed without obtaining the Access Token parameters, in order to prevent security researchers and sandbox tools from analyzing the payload.

Table 1-1 Overview of BlackCat ransomware

Family name	Blackcat (aka ALPHV or Noberus)
Time of occurrence	Nov-2021
Typical mode of transmission	Initial access is realized through phishing, vulnerability exploitation and acquired credentials, and it has the function of intranet propagation
Typical Encryption Suffix	. (Random combination of 6-7 digits + letters)
Encryption algorithm	Aes or ChaCha + RSA
Decryption tools	No public decryption tools have been found
Encryption system	Windows, Linux and VMware ESXi
Double blackmail or not	Yes
Ransom note

It is proved that Antiy IEP can effectively detect and kill the ransomware.

2.Recent data leakage cases

From November 30, 2021, the attack group behind the BlackCat ransomware has been publishing victim information and stolen data at the dedicated data breach site (DLS) of the Tor website, as of July 3, 2023. There are 434 victims in their DLS.

The following are some of the victims and data breaches released by the group behind the BlackCat ransomware attack.

2.1 Mexican beverage company Coca-Cola FEMSA

The attackers updated the Mexican beverage company Coca-Cola FEMSA located in their DLS on June 10, 2023. The attacker has disclosed two parts of data, Part _ 1 and Part _ 2, and the contents of the sample pictures are the order information, transaction contract and profit sharing contract between Coca-Cola FEMSA company and its partner company.

Figure 2-1 Victim Coca-Cola FEMSA Information

2.2 Automatic systems, a Belgian company that manufactures access control equipment

On June 12, the attackers updated information on Automatic Systems, a Belgian company that manufactures access control equipment located in their DLS. The documents the attackers claimed to have stolen include but are not limited to personal information of Automatic Systems employees and customers, drawings of product designs and business data, as well as documents such as agreements and plans signed with NATO. The contents of the sample pictures are the personal identification information of the employees of Automatic Systems, the order information of the cooperative company, the contract and the confidentiality agreement and other documents.

Figure 2-2 Victim automatic systems information

Where documents of confidentiality agreement with Alibaba were found.

Figure 2-3 Relevant documents about Alibaba

2.3  State oil company Sonangol of the Republic of Angola

On 15 June, the attackers updated information relating to Sonangol, the national oil company of the Republic of Angola, which is located in its DLS, as well as 210 gigabytes of data stolen from the company, This includes information on Sonangol’s employees, financial documents and medical systems.

The attacker warned the victim “to contact him within 72 hours, to release all data if overdue, and to send e-mails to all concerned about the data breach. Including suppliers, contractors and employees. “

Figure 2-4 Information on victim Sonangol

2.4 US social news site Reddit

On June 17, the attackers updated information about Reddit, the US social news site that was placed on their DLS site. The attackers claimed to have hacked into Reddit’s systems on February 5, 2023, after Reddit employees were subjected to a targeted phishing attack [5] in which the attackers stole 80GB of compressed data, And sent two emails to Reddit, on April 13 and June 16, but received no response. The attackers wanted $4.5 million as a ransom and demanded that Reddit retract their recent decision to raise API pricing.

Figure 2-5 Victim Reddit messages

2.5  Mammoth Energy, an American energy services company

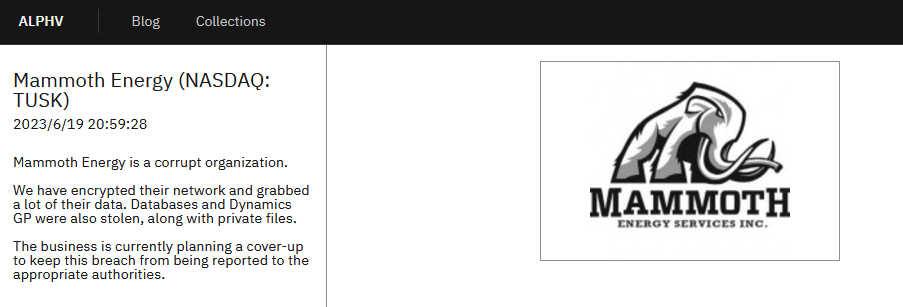

On June 19, the attackers updated information related to Mammoth Energy, an American energy service company located in its DLS, claiming that they had encrypted the company’s network facilities and had stolen a large amount of data from inside the company, Including database files, Dynamics GP files and private files.

Figure 2-6 Victim Mammoth Energy Information

3.Sorting of Load Function and Technology

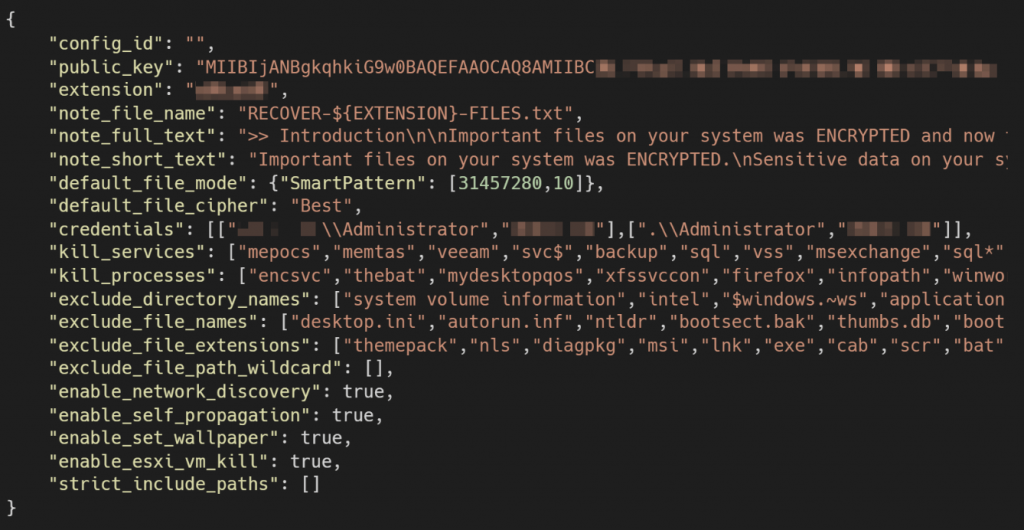

The BlackCat ransomware payload is written in the Rust programming language, and the execution payload requires a specific Access Token parameter to decrypt the encrypted configuration file written to the ransomware payload file. The configuration file is the content of a file set according to the actual situation of the victim system after the attacker intrudes the victim system, and the configuration file includes a list of services and processes to be stopped. Skip encrypted white list directories, files, and list of file extensions. The load file cannot be executed without access to the Access Token parameter in order to prevent the security researcher and sandbox tool from analyzing the load.

Figure 3-1 Content of configuration file

The following is a brief description of the options included in the configuration file.

Table 3-1 Configuration file options and brief description

Configuration options	Description	Configuration options	Description
Config _ id	Id information	Kill _ processes	End a particular process
Public _ key	Rsa public key	Include _ directory _ names	Bypass the encrypted file directory
Extension	Suffix (combination of letters and numbers)	Include _ file _ names	Bypass the encrypted file name
Note _ file _ name	Name of the ransom note file	Include _ file _ extensions	Bypass the encrypted file suffix
Note _ full _ text	Full text of the ransom note	Include _ file _ path _ wildcard	Bypass the encrypted file path
Note _ short _ text	A short ransom note for desktop backgrounds	Enable _ network _ discovery	Discover other hosts in the network environment
Default _ file _ mode	File Encryption Mode	Enable _ self _ propagation	Self-transmission model
Default _ file _ cipher	Using a specific encryption algorithm	Enable _ set _ wallpaper	Modify desktop wallpaper
Credentials	Specific Voucher Information of Victim	Enable _ esxi _ vm _ kill	Terminate VMware ESXi
Kill _ services	End a specific service	Strict _ include _ paths	Specify a path

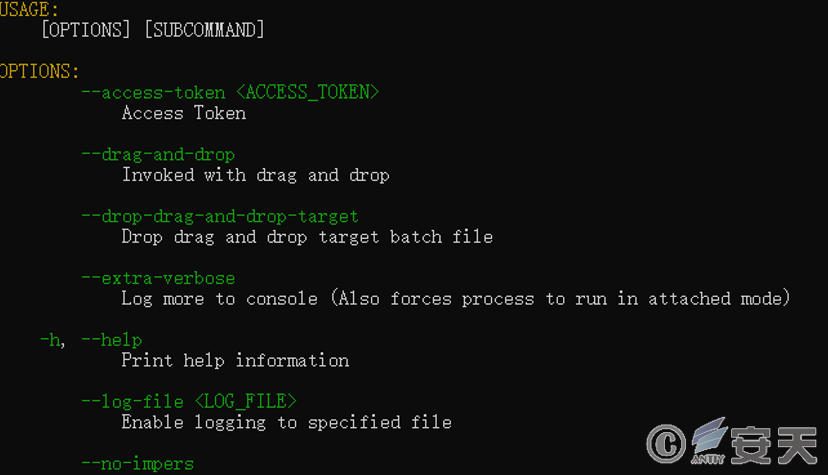

Blackcat ransomware payload execution needs to pass specific parameters.

Figure 3-2 Execution of loads by parameters

The Access Token parameter is the key to decrypt the built-in configuration information of the payload, and if the parameter is incorrect, the payload cannot be executed, so as to avoid the detection of automatic analysis systems such as sandboxes and the extraction of configuration information.

Figure 3-3 Decrypting the configuration file with the Access Token

Use COM API to bypass user account control (UAC), so as to achieve the right.

Figure 3-4 Using COM to extract weights

Check the ARP cache information of the victim system, and obtain the resolved IP address and the corresponding MAC address on the current computer.

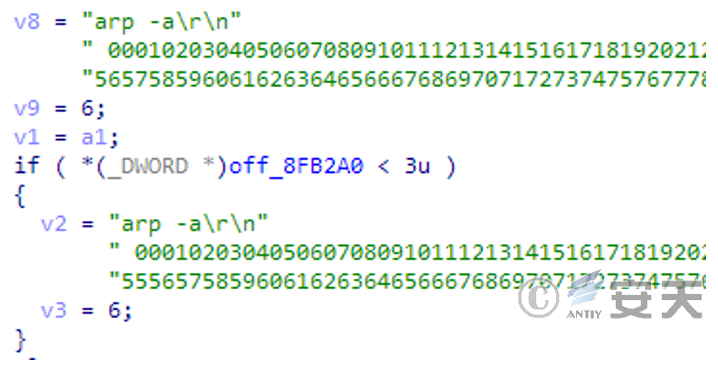

Figure 3-5 Obtaining ARP information

Use vssadmin. exe to delete shadow copies to prevent users from restoring encrypted files by restoring shadow.

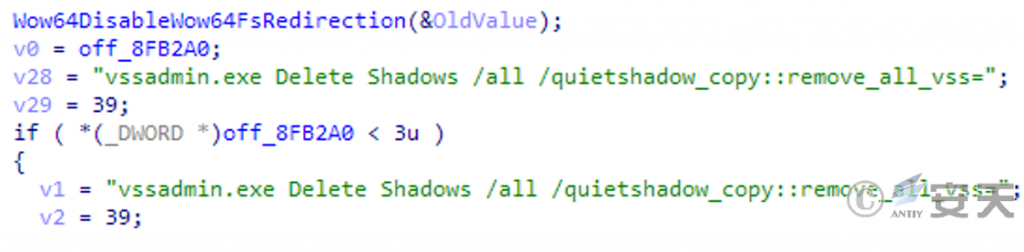

Figure 3-6 Removing shadow copies using vssadmin. exe

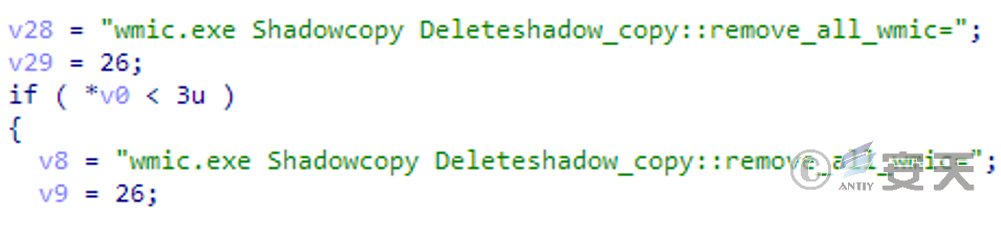

Use wmic .exe to delete shadow copies to prevent users from restoring encrypted files by restoring shadow.

Figure 3-7 Removing shadow copies using wmic .exe

Disable automatic system recovery with bcdedit and set to start in secure mode with network support.

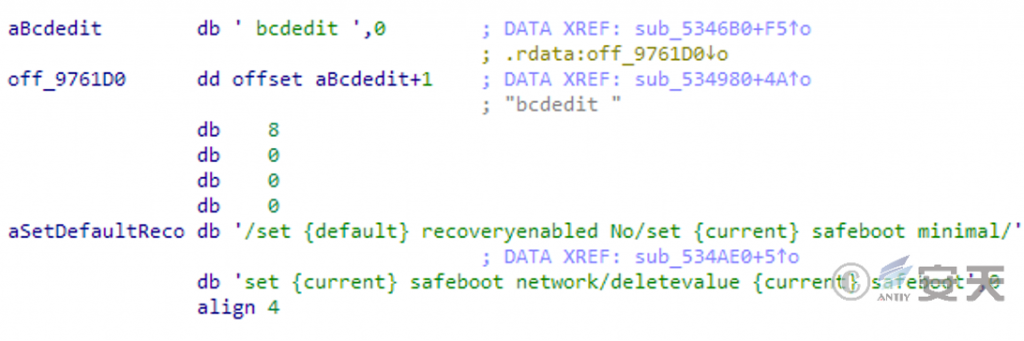

Figure 3-8 Disable repair and starting in safe mode

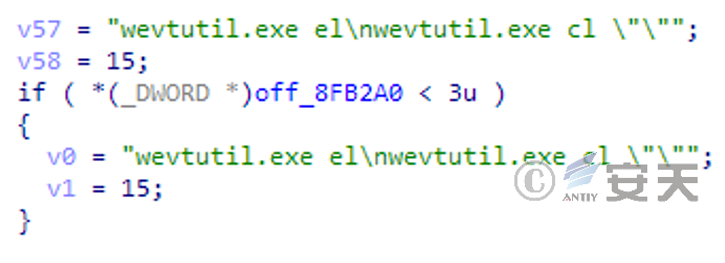

Call wevtutil.exe to clear the log, so as to prevent the user from finding relevant information of intrusion through the log.

Figure 3-9 Clearing log

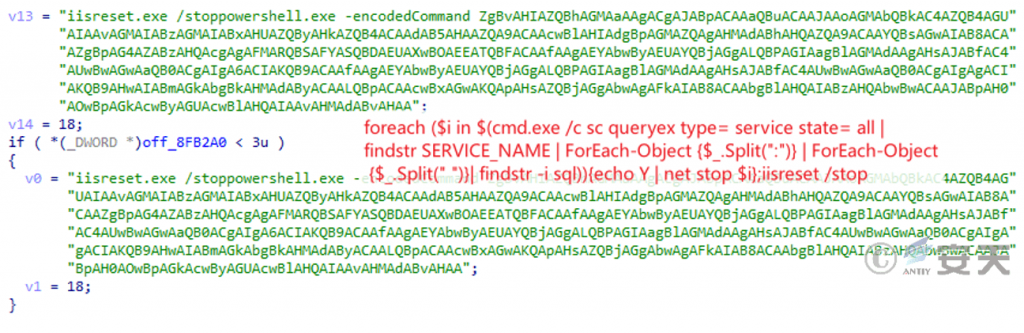

End the service specified in the configuration file to prevent the execution of the ransomware payload from being affected.

Figure 3-10 End a particular service

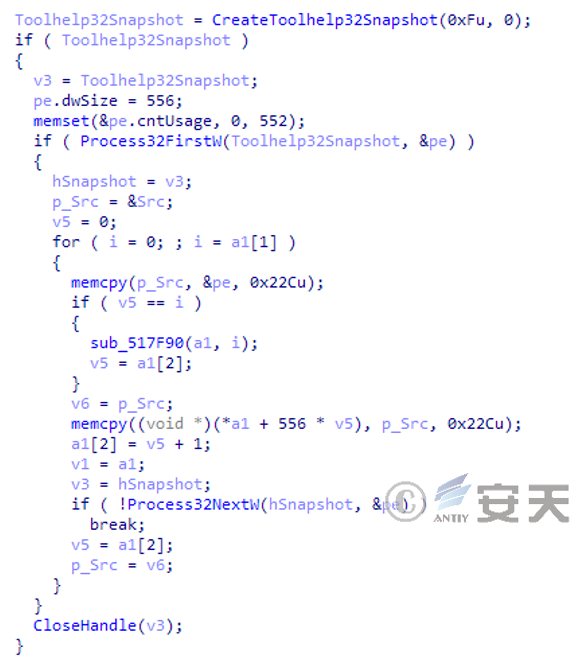

Ends the process specified in the configuration file to prevent the execution of the ransomware payload from being affected.

Figure 3-11 End a particular process

Services are created in the victim system to implement persistence.

Diagram 3-12 Creating a service implementation persistence

Sets a specific image with a blackmail alert as a desktop background file.

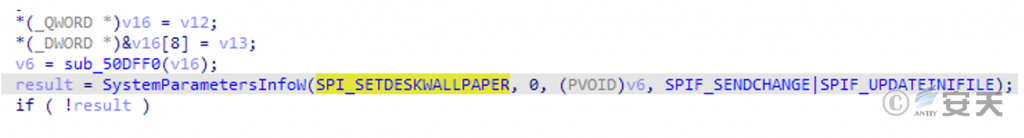

Figure 3-13 Modifying Desktop Background

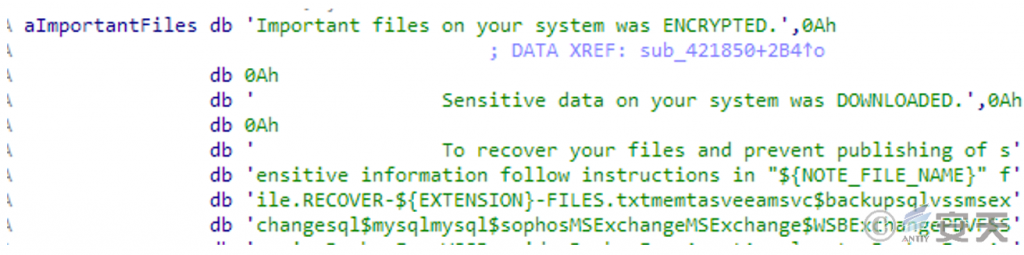

Concatenates a specific string in the code into the content of the ransom note.

Figure 3-14 Splicing the contents of the ransom note

Generates a blackmail letter named “RECOVER- (suffix set in the configuration file) – FILES. txt,” such as “RECOVER- locked – FILES. txt.”

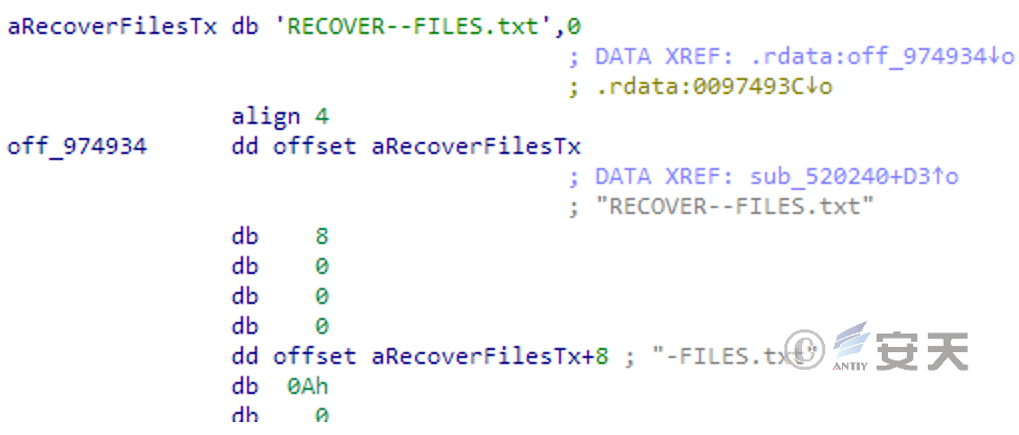

Figure 3-15 Setting the name of a blackmail letter

4.Recommendations for protection

In response to ransomware attacks, Antiy recommends that individuals and businesses take the following precautions:

4.1 Personal protection

1. Enhance network security awareness: Maintain good habits of network use and actively learn relevant knowledge of network security;
2. Install terminal protection: Install anti-virus software. It is suggested that Antiy IEP users open the ransomware defense tool module (open by default);
3. Strengthen password strength: Avoid using weak passwords, recommend using 16-digit or longer passwords, including combinations of upper and lower case letters, numbers and symbols, and avoid using the same password for multiple servers;
4. Change passwords on a regular basis: Change system passwords on a regular basis to avoid system intrusion due to password leakage;
5. Update patches in time: It is suggested to open automatic update and install system patches, and update system patches in time for vulnerable parts such as servers, databases and middleware;
6. Close high-risk ports: The principle of minimizing external services is to close unused high-risk ports such as 135, 139, 445 and 3389;
7. Close PowerShell: If PowerShell command line tools are not used, it is recommended to close them;
8. Regular data backup: Data backup of important files on a regular basis, and backup data shall be isolated from the host computer.

4.2 Enterprise protection

1. Network security training and security drill: Regularly carry out network security training and security drill to improve employees “network security awareness;
2. Install terminal protection: Install anti-virus software, and recommend the installation of Antiy IEP for different platforms;
3. Update patches in time: It is suggested to open automatic update and install system patches, and update system patches in time for vulnerable parts such as servers, databases and middleware;
4. Enable log: Enable the key log collection function (security log, system log, PowerShell log, IIS log, error log, access log, transmission log and cookie log) to provide a foundation for security event tracing and tracing;
5. Set IP whitelist rules: Configure advanced secure Windows firewall, set the inbound rules for remote desktop connection, add the IP address or IP address range used to the rules, and prevent violent attack of non-rule IPs;
6. Host reinforcement: Conduct penetration test and safety reinforcement for the system;
7. Deploy Intrusion Detection System (IDS): Deploy traffic monitoring software or equipment to facilitate the discovery, tracing and tracing of ransomware. Taking network traffic as the detection and analysis object, the Antiy PTD can accurately detect a mass of known malicious codes and network attack activities, and effectively detect suspicious behaviors, assets and various unknown threats on the network;
8. Disaster backup plan: Establish a security disaster backup plan to ensure that the backup business system can be quickly enabled in case of a security event;
9. Safe service: In case of a ransomware attack, it is recommended to disconnect the network in time, and protect the site and wait for the security engineer to check the computer. Antiy 7 * 24 Service Hotline: 400-840-9234.

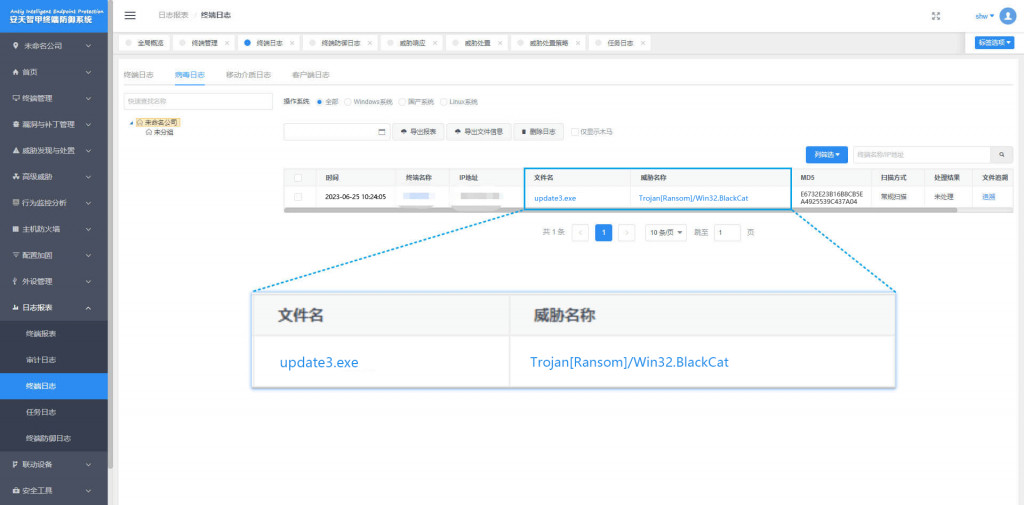

It is proved that Antiy IEP can effectively detect and kill the ransomware.

Figure 4-1 Antiy IEP can effectively detect and kill the ransomware

5.ATT&CK Mapping graph of event

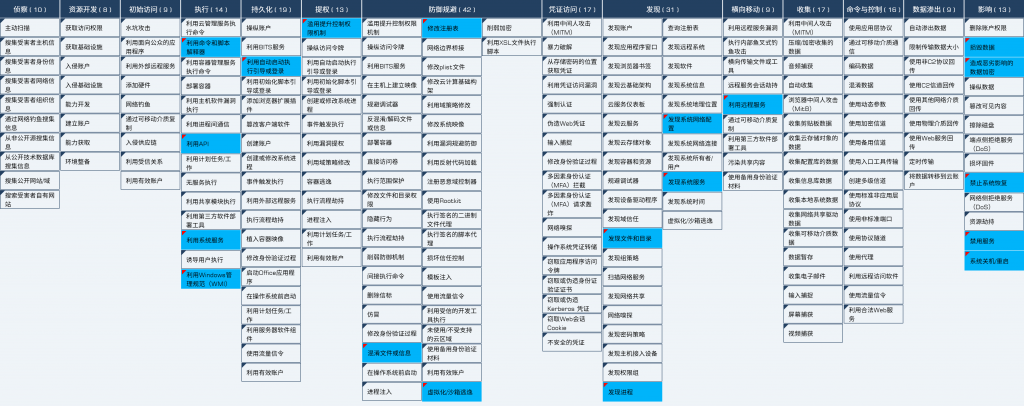

The technical characteristics corresponding to the event are shown in the figure below.

Figure 5-1 Mapping of Technical Features to ATT&CK

Specific ATT&CK technical behavior description table is as follows.

Table 5-1 ATT&CK Technical Behavior Description Table

ATT&CK stages / categories	Specific behavior	Notes
Execution	Using command and script interpreters	The load is executed using commands and specified parameters
	Use API	Using COM API to Exert Power
	Utilization of system services	Execute the load using the system service
	Using Windows Management Specification (WMI)	Use wmic to execute command to delete shadow
Persistence	Use automatic startup to perform booting or logging	Achieve persistence by creating a service
Right to Submission	Abuse of enhanced control authority mechanism	Using COM API to Bypass UAC
Defensive evasion	Confusion of documents or information	Obfuscate part of a code segment
	Modify the registry	Create a registry key implementation to run as a service
	Virtualization / Sandbox Escape	Parameter execution to avoid sandbox analysis
Findings	Find files and directories	Find encrypted / bypassed files and directories
	Discovery Process	Discover the process to achieve an end process
	Discovery system network configuration	Discover network configuration by ARP command
	Discovery of system services	Discovery of system services to achieve end-of-service
Lateral movement	Use remote services	Using Remote Service to Realize Horizontal Movement
Impact	Damage data	Delete system log
	Data encryption with adverse effects	To encrypt a particular file
	Disable system recovery	Disable system recovery to avoid data recovery
	Disable the service	Stopping a particular service avoids interfering with the encryption
	System shutdown / restart	Restart the system in safe mode

6.Iocs

Md5

E6732e23b16b8cb5ea4925539c437a04

6ff9900b271090361e63f5242ee4e8b0

2891ec6365b7b0ef90899a35e4f2f747

B00b5eb046fe27f645b2a9b7aecc0205

8f2b7a45a93ee6f4806918aaa99c1b1b

B67ffe5e49ada7628ae9c32eaa3b4ce3

Ee159afcadc7eb4ba73f72c2f6924da3
